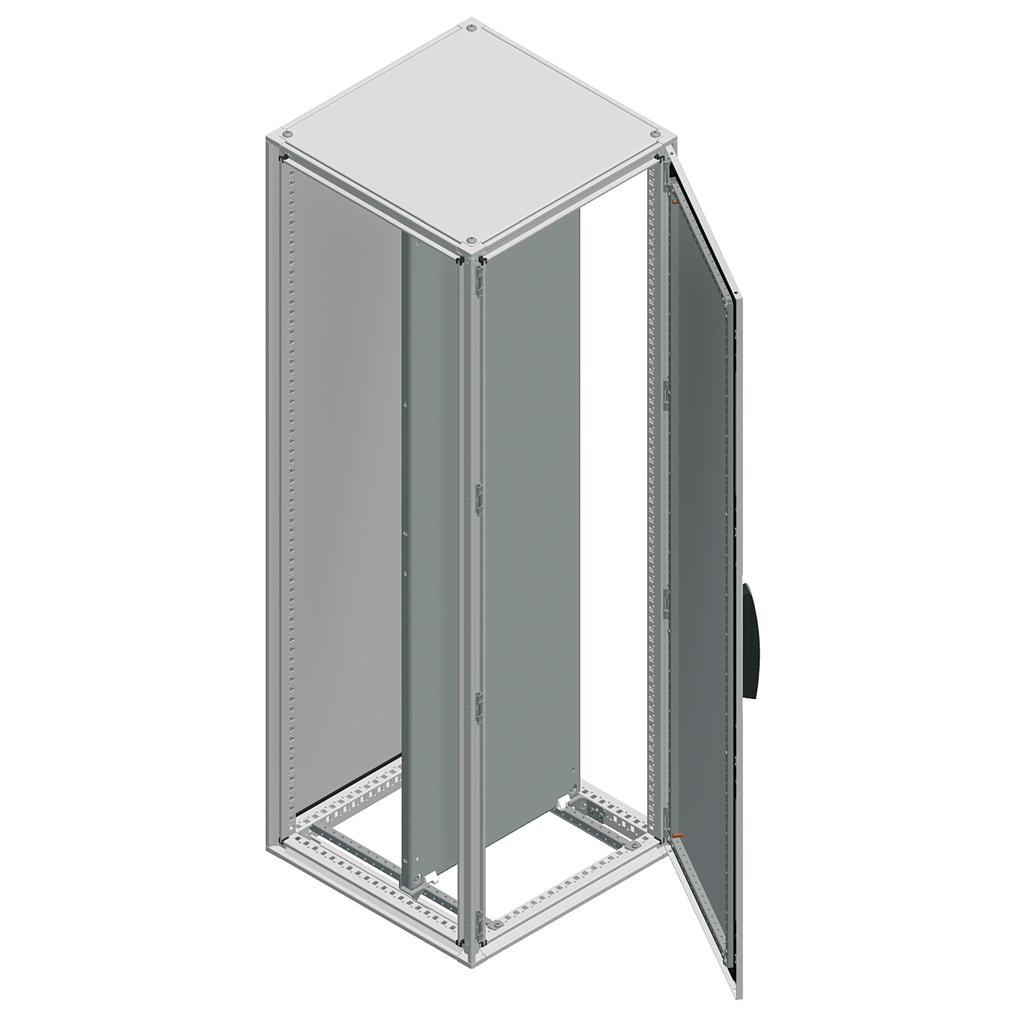

Product image for SQUARED NSYSF20640P Spacial SF encl
Email

SQUARED NSYSF20640P Spacial SF encl

Manufacturer: Square-D / Schneider | Catalog # NSYSF20640P | Cooper Electric Part # 967361
$1,650.11/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
Spacial SF suitable steel enclosure with mounting plate. 2000 x 600 x 400 mm. Assembled. Front, rear and sides accessibility. Without gland plate. 4-point closure system with handle and 5 mm double bar lock insert. Galvanised steel for frame and uprights. Protection IP 55, IK10, Grey RAL 7035. 4 mounting plate support brackets included.

Technical Information

Applications
Multi-purpose
Door Type
Solid Front
Lock Type
5 mm
Material
Steel
Net Weight
102.334 kg
Number of Doors
Front 1
Range
Spacial
Size
15.75 in
Standard
IEC 62208
Surface Finish
Epoxy-polyester Powder
Type
Suitable enclosure

Manufacturer Information

Brand
Schneider Electric
Sub Brand
SPACIAL

General Product Info

12-Digit UPC
785901879282
Color
Enclosure Gray RAL 7035),Handle Black RAL 9005)
Construction
Formed from a single section;Panels and doors built into the structure;Perforated structure with a pitch of 25 mm;Vertical uprights joined with top and bottom frames
GTiN
03606485117638
Product UPC
78590187928
Weight
102.334 kg

Dimensions

Enclosure Depth
400 mm
Enclosure Height
2000 mm
Enclosure Wdth
600 mm
Height
2000 mm
Warranty Length
18 mth
Width
600 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
Spain
