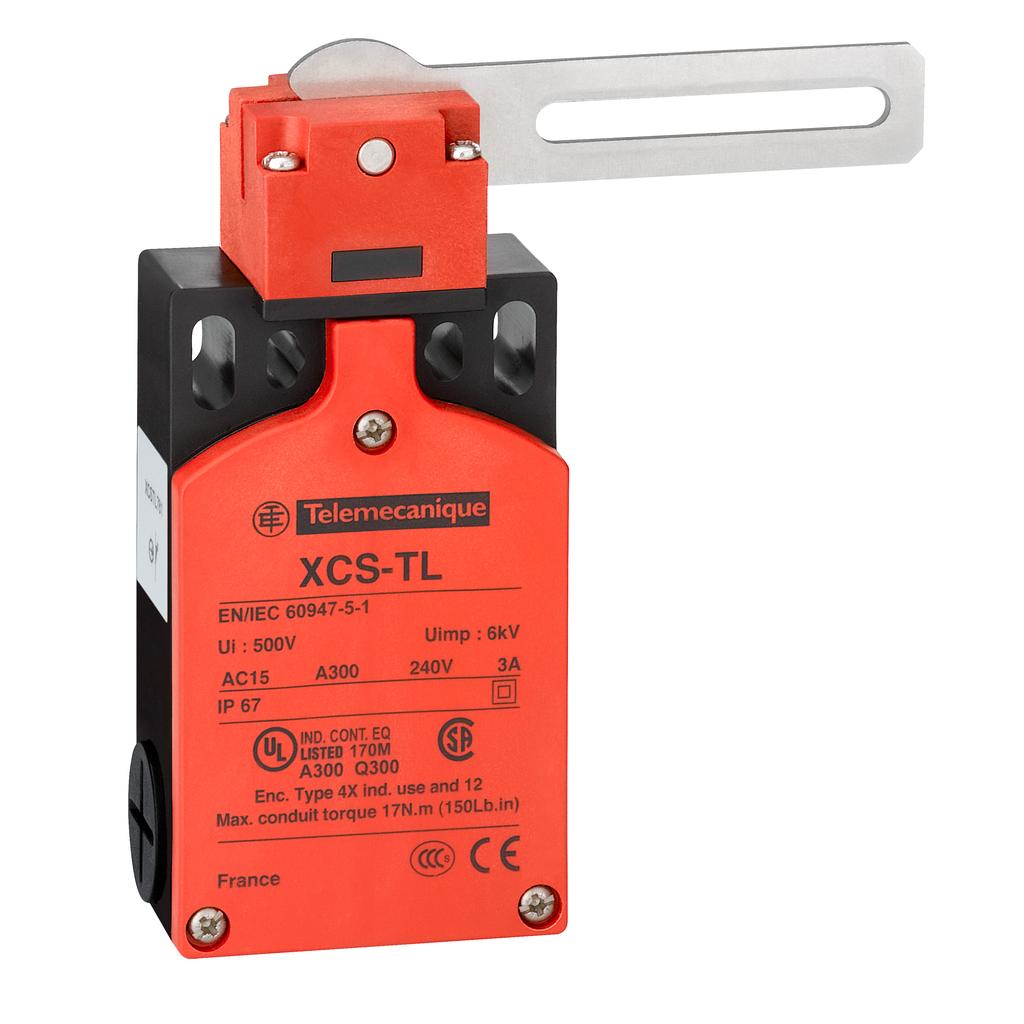

Product image for SQD XCSTL562 OBSOLETE INTRLCK SWITC
Email

SQD XCSTL562 OBSOLETE INTRLCK SWITC

Manufacturer: Square-D / Schneider | Catalog # XCSTL562 | Cooper Electric Part # 966399
$98.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
safety switch XCSTL - straight lever - to right or to left - 1NC+2NO -M16

Technical Information

Action
SLOW-BREAK, BREAK BEFORE MAKE
Actuator
STAINLESS STEEL,STRAIGHT LEVER
Amperage
6 Amp
Applications
TURRET HEAD ROTARY LEVER
Contact Configuration
1 NC + 1 NO + 1 NO
Enclosure
POLYAMIDE PA66 FIBRE GLASS IMPREGNATED
Enclosure Material
Polyamide
Material
Plastic
Number of Poles
3 Pole
Operating Temperature
-25-70 Adegrees C
Size
108-108 MM,125 MM,30 MM
Standard
CSA C22.2 No 14,EN 1088/ISO 14119,EN/IEC 60204-1,EN/IEC 60947-5-1,EN/IEC 60947-5-4,EN/ISO 12100,UL 508
TC Connection
TERMINAL
Type
GUARD SWITCH,TURRET HEAD ROTARY LEVER

Manufacturer Information

Brand
Preventa
Sub Brand
XCSTL

General Product Info

12-Digit UPC
785901542025
GTiN
03389110866834
Product UPC
78590154202
Weight
0.32 lb

Dimensions

Chain Cable Diameter
0.39 in
Depth
1.18 Inch
Height
4-1/4 Inch
Warranty Length
18 mth
Width
4.92 in

Certifications and Compliance

CA Prop65 Warning
This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP) and Diisononyl phthalate (DINP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov
Certifications
BG,CSA,UL
Country of Origin
France
