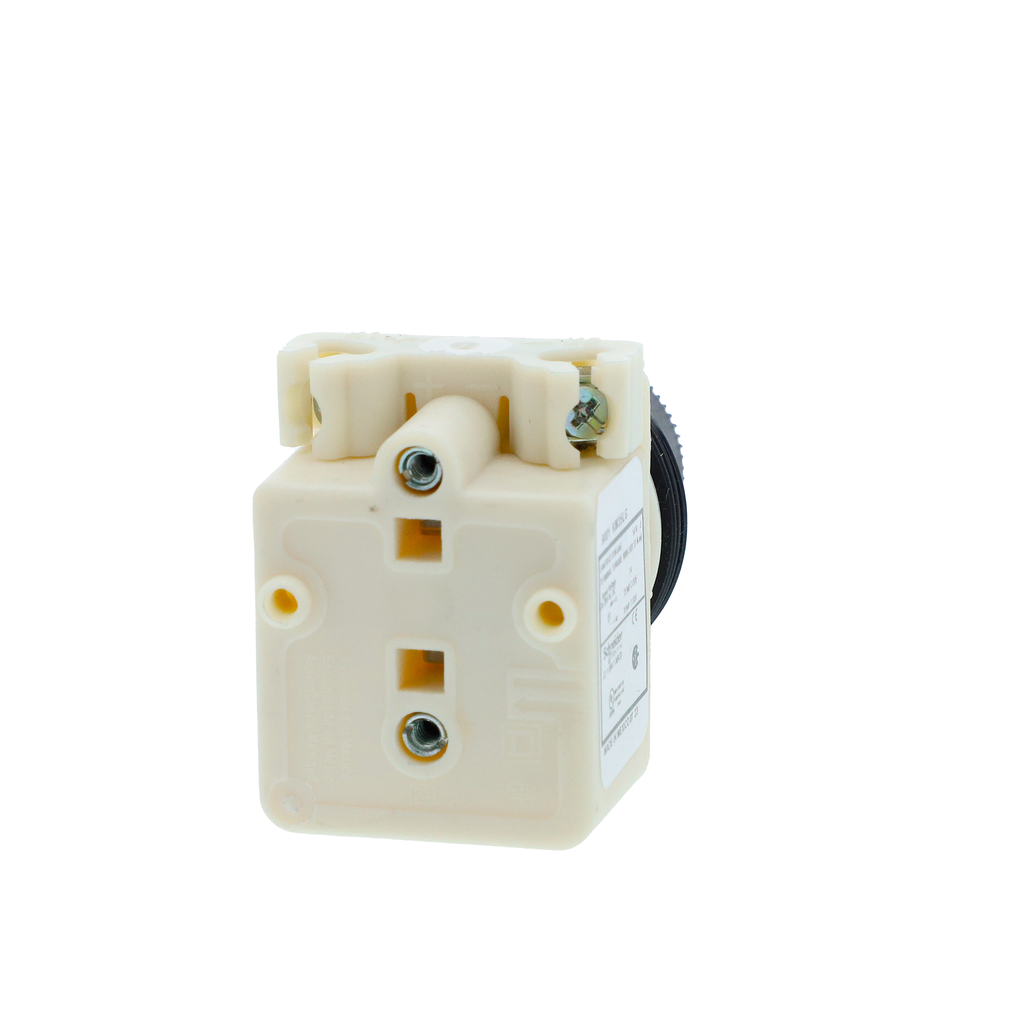

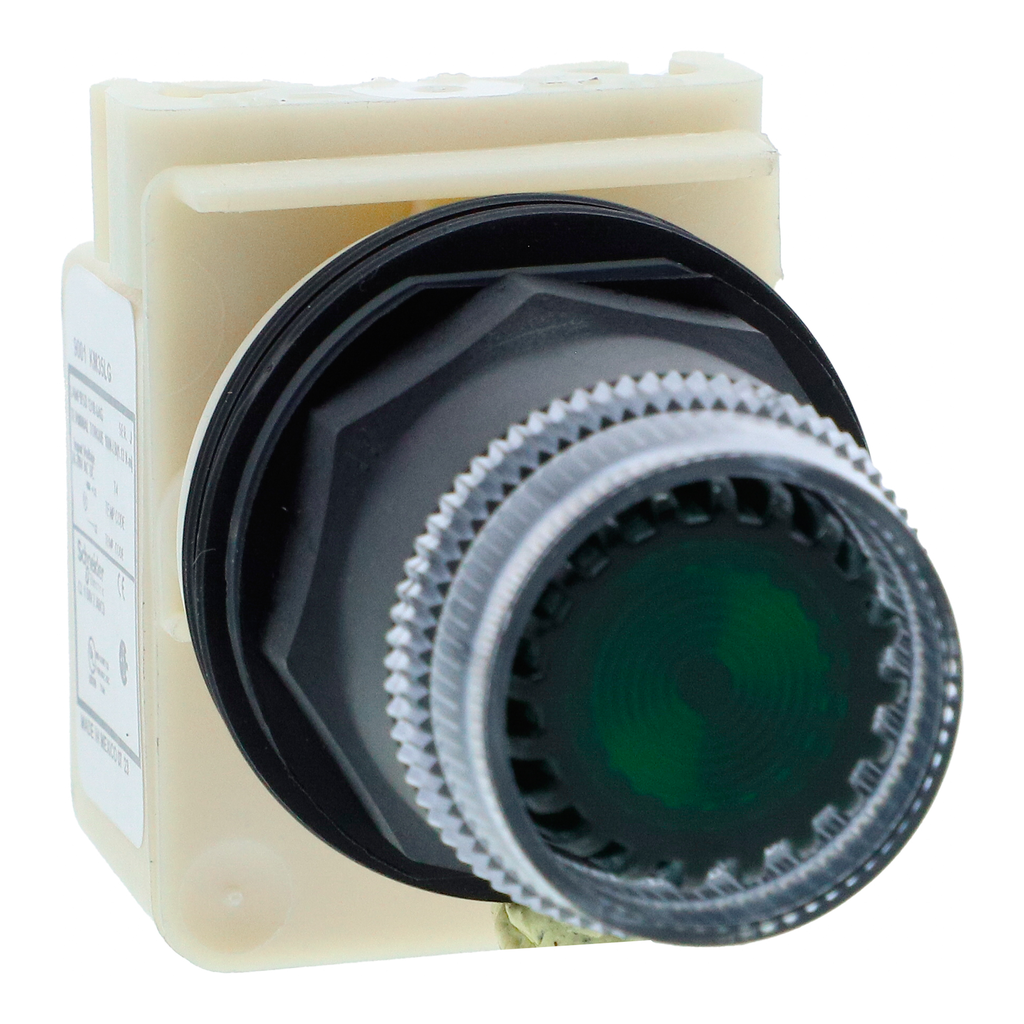

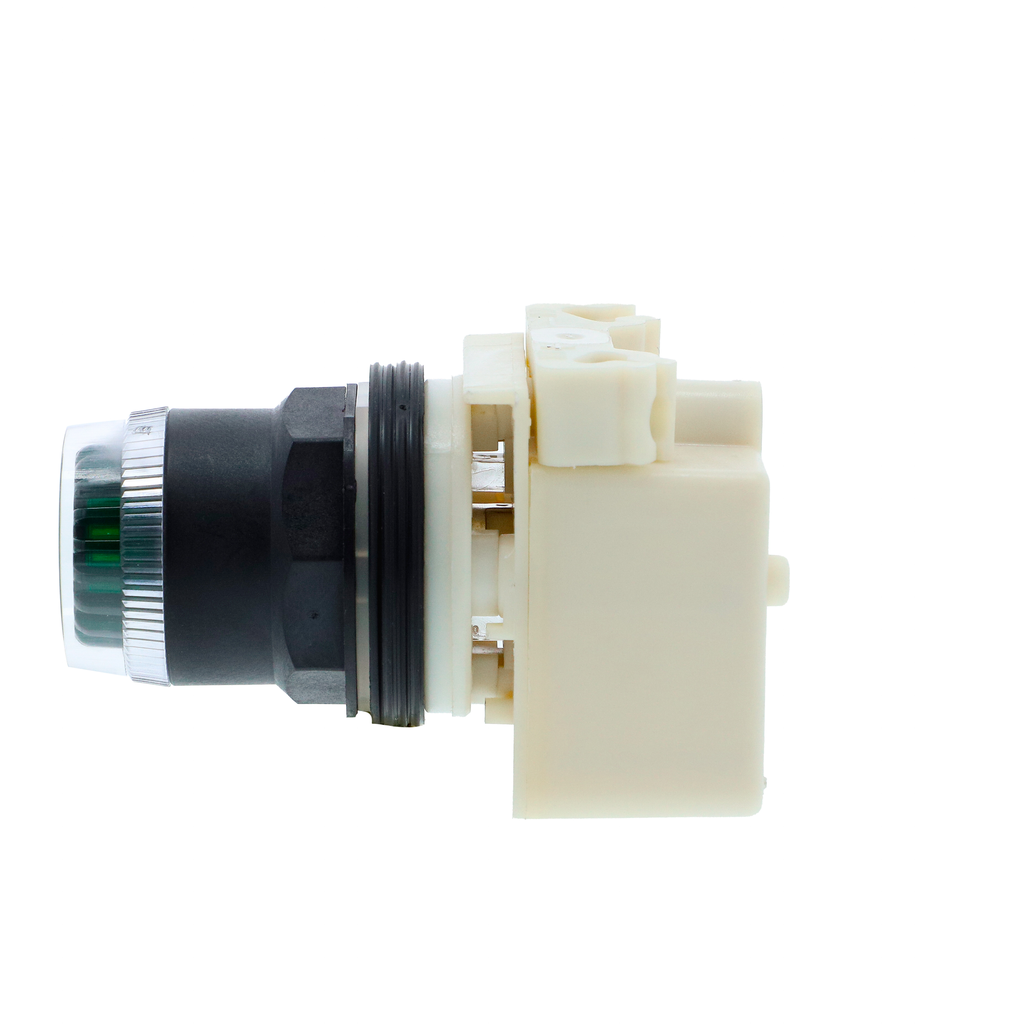

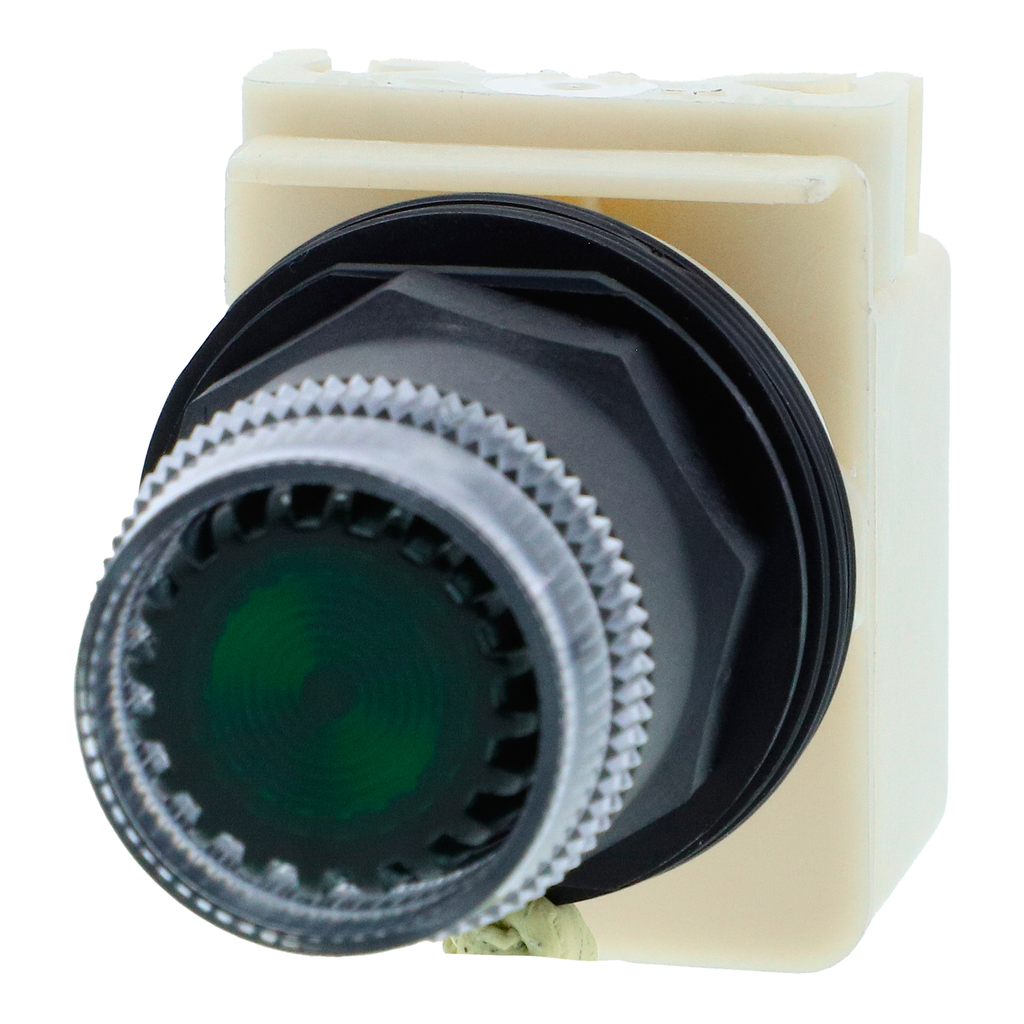

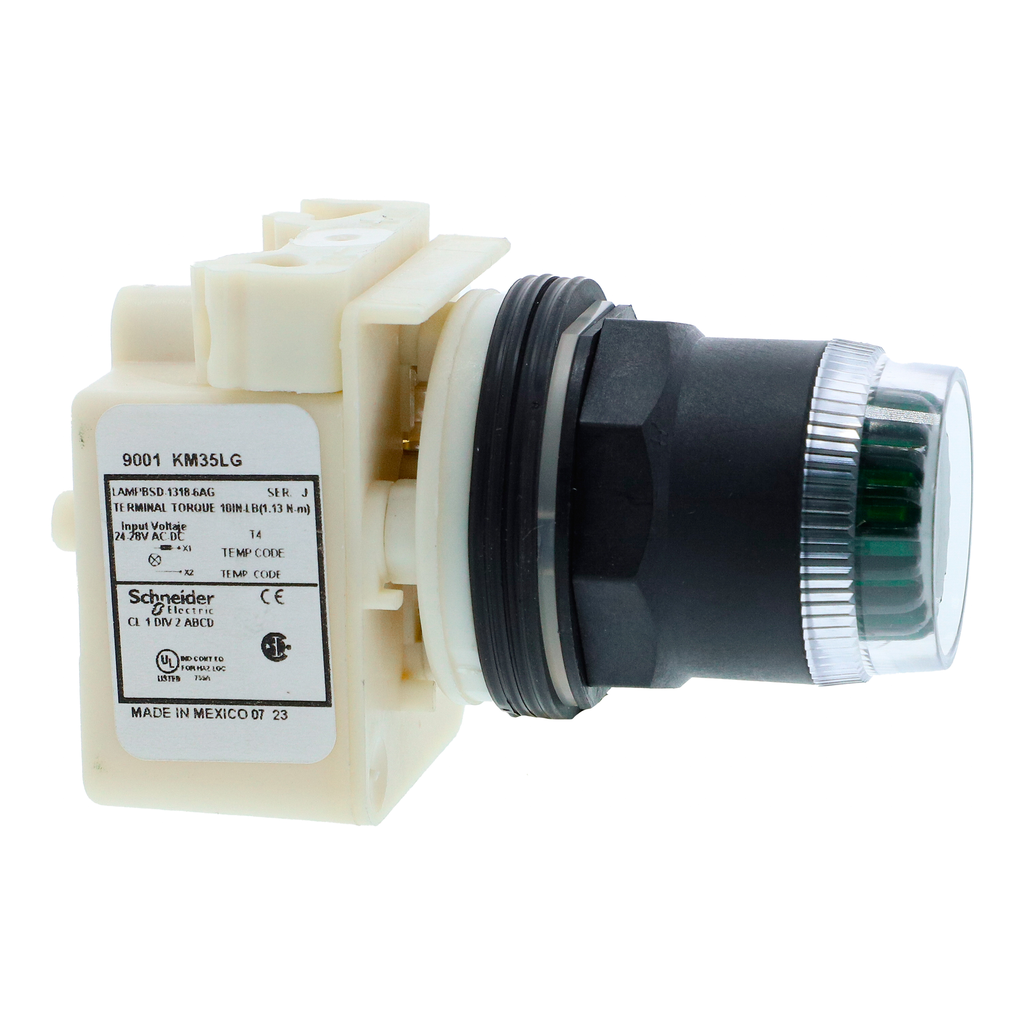

Square D 9001K1L35LGG 30 mm Green Body Metal Bezel Momentary Full Guarded Round Illuminated Push Button Operator

Manufacturer: Square-D / Schneider | Catalog # 9001K1L35LGG | Cooper Electric Part # 966281

$184.12/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
This Harmony 9001K, modular illuminated flush green push button is supplied with a full guard. It has a chromium-plated metal bezel and is supplied with a 24V AC/DC integral LED. This illuminated push button with integral LED and full guard provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.

Technical Information

Action
SPRING RETURN
Actuator
RED FLUSH, UNMARKED,SPRING RETURN
Bezel Material
Metal
Contact Configuration
NO CONTACT BLOCKS
Contact Rating
AC15 - DC13
Enclosure
NEMA 1-NEMA 12-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 4
Indicator
BA 9S
Light Source
Green LED
Net Weight
0.166 kg
Operating Temperature
-25-70 Adegrees C
Size
1.18 in
Standard
CSA C22.2 No 14,EN/IEC 60947-1,EN/IEC 60947-5-1,EN/IEC 60947-5-4,JIS C 4520,JIS C 852,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
SCREW CLAMP
Type
Complete illuminated push-button

Manufacturer Information

Brand
Square D
Sub Brand
9001K

General Product Info

12-Digit UPC
785901681311
Color
Green
Environmental Conditions
WATER TIGHT, DUST TIGHT AND OIL TIGHT (INDOOR/OUTDOOR)
GTiN
00785901681311
Product UPC
78590168131
Weight
0.37 lb

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
NEMA,UL 508
Country of Origin
Mexico
Compatible Products
  • 9001KA1
  • 9001KA2
  • 9001KA3
  • 9001KA5
