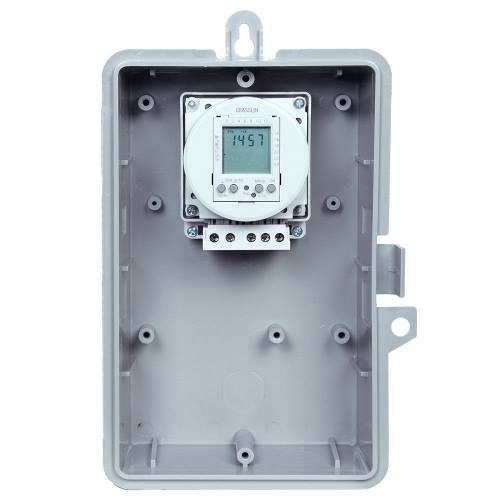

DGTL TMR,20 PRGM,240V,OUTDOOR

Manufacturer: Intermatic, Inc | Catalog # GMXFM1D20-O-240 | Cooper Electric Part # 966177
$300.67/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Universal GMX Electronic Series Time Controls are a low-cost alternative for applications that do not require more than 16 A. Unit can be mounted in a UL Type 1 indoor or 3R outdoor enclosure.

Technical Information

Action
SPDT
Applications
Outdoor, Pumps, Fans, HVACR, Control Circuits, Lighting, Machinery, Commercial, Industrial, Agricultural
Connection Type
Screw Terminal
Contact Configuration
1 NO/1 NC
Contact Rating
16 AMP @ 277 VAC (Resistive NO), 12 AMP @ 120 VAC (Ballast NO), 8 AMP @ 240 VAC (Ballast NO), 16 AMP @ 277 VAC (Resistive NC), 8 AMP @ 24 VDC (NC)
Enclosure
NEMA 3R
Enclosure Type
Outdoor Type 3R Plastic
Frequency
50/60 Hz
Input Voltage
240 V
Max Operating Temperature
131 degrees F
Min Operating Temperature
-13 degrees F
Mounting Type
Wall Mount
NEMA Size
3R
Number of Circuits
1
Number of Poles
1 Pole
Operating Temperature
131 degrees F
Power Consumption
4 VA
Size
10 HEIGHT X 6.50 WIDTH X 3.75 DEPTH IN, 25.4 HEIGHT X 16.5 WIDTH X 9.5 DEPTH CM
Standard
CULus Listed #E10694,California TITLE 24 Compliant,HVACR,Title CA 20 Listed
Switch Type
SPDT
TC Connection
Screw Terminal
Type
One Channel Electronic
Voltage
240 VAC
Wattage
1000 Watt

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275121478
GTiN
00078275121478
Product UPC
07827512147

Dimensions

Depth
25.4 mm
Height
254 mm
Width
165.1 mm
Features
  • 24-Hour or 7-day applications
  • Finger-safe terminals
  • Manual Daylight Saving Time adjustment (D20 Models)
  • Auto Daylight Saving Time adjustment (D50 Models)
  • Manual override with load status indication
  • GMXFM1D50 & GMX2FM2D50 models available in seven languages: English, German, French, Italian, Spanish, Dutch, and Portuguese
  • Heavy-duty relay contacts for switching low or line voltage loads
  • Non-metallic enclosure provides space for field added contactor or other accessories
  • Available in 2-circuit
Applications
  • Lighting Control
  • Access Control
  • Commercial Refrigeration
  • General Electrical Circuits
  • Pump Control
  • Motor Control
  • Fan Control
