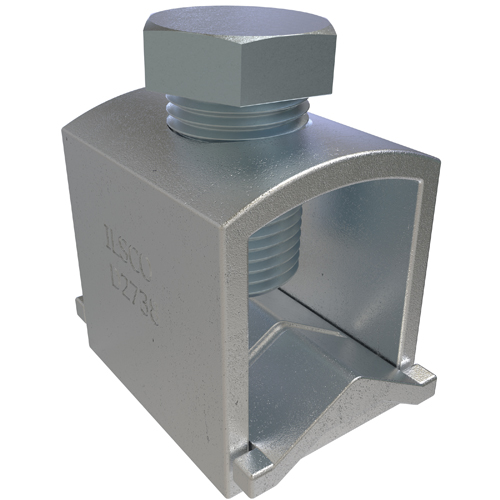

Product image for ILSCO D-2738 CU MEC 500-1/0 T UR CS
Image thumbnail 0
Image thumbnail 1
Email

ILSCO D-2738 CU MEC 500-1/0 T UR CS

Manufacturer: Ilsco | Catalog # D-2738 | Cooper Electric Part # 965596
$139.40/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
ILSCO Box-Type Mechanical Lug with Pressure Plate, Mechanical connection, Copper material, Tin plated connector,1 mounting hole(s), mounting bolt/stud size 1/4-20 in, mounting hole spacing 0.719 in., UL 486A/B Recognized, C22.2 No. 65-03, Copper Primary Conductor 500 kcmil - 1/0 Str, 1 conductors, 1 ports/wireways, Drive Type Main 3/4 External Hex, rated for 35 kV, primary color Silver, 1 poles,

Technical Information

Applications
Box-Type Mechanical Lug with Pressure Plate
Material
Copper
Number of Conductors
1
Standard
UL Specifications: Tested To UL 486A-B,UL File Number: E6207,CSA File Number: LR-29601
TC Connection
Mechanical
Temperature Rating
90 degrees C
Type
COPP:BOX TYPE W/PLATE
Voltage
35,000 Volt

Packaging

Pkg Qty
10

Manufacturer Information

Brand
Ilsco
Sub Brand
ILSCO

General Product Info

12-Digit UPC
783669028256
Color
Silver
Finish
Tin Plated
GTiN
00783669028256
Product UPC
78366902825

Dimensions

Height
1.416 in
Length
1.375 in
Width
1.130 in
