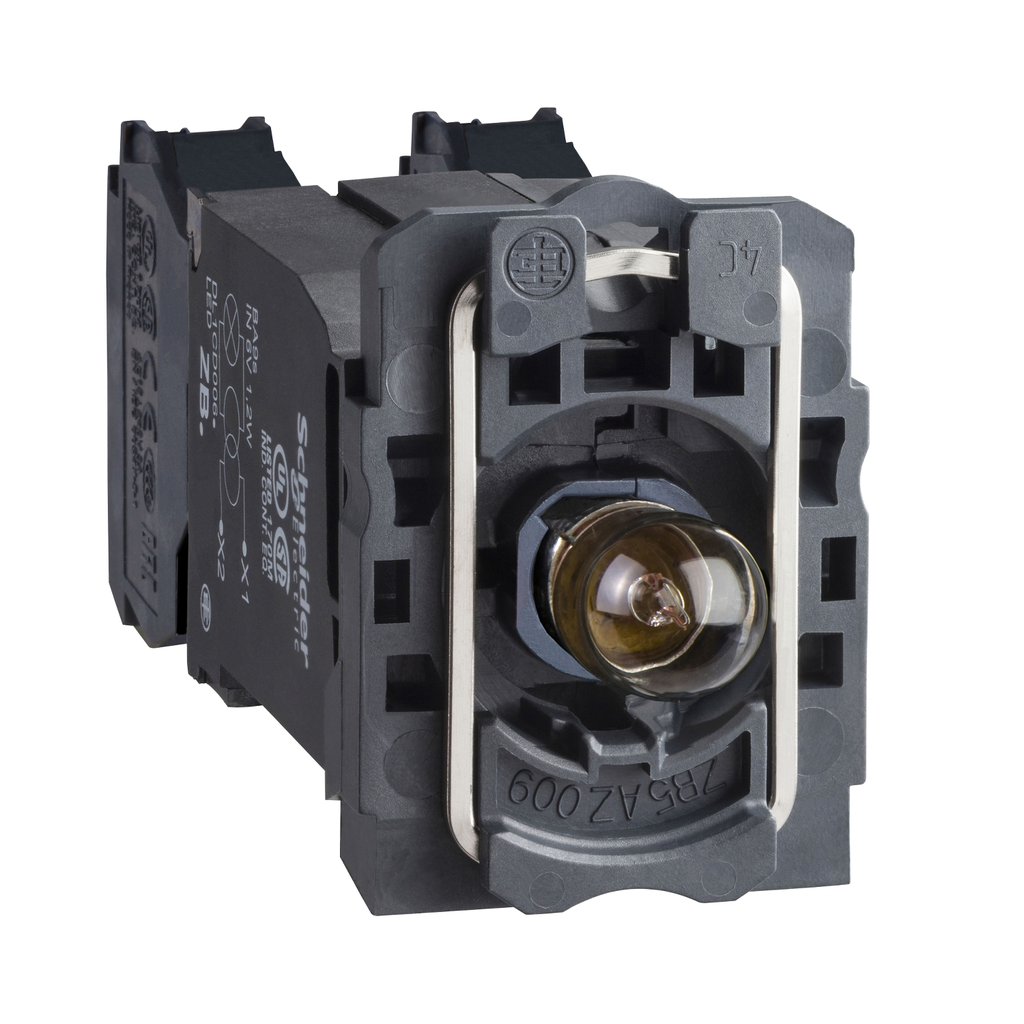

Product image for Square D ZB5AW035 22 mm 110 to 120 Volt 1NO 1NC Contact Block Push Button Light Module
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Square D ZB5AW035 22 mm 110 to 120 Volt 1NO 1NC Contact Block Push Button Light Module

Manufacturer: Square-D / Schneider | Catalog # ZB5AW035 | Cooper Electric Part # 964535
$95.55/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units . It is assembled via clips and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by BA9s base Integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.

Technical Information

Action
Slow-break
Amperage
3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1
Contact Configuration
1 NO + 1 NC
Contact Material
Silver Alloy
Contact Rating
A600 - Q600
Head Type
Standard
Indicator
BA 9S,INCANDESCENT
Light Source
Incandescent
Net Weight
0.119 kg
Operating Force
2 N
Operating Temperature
-40-70 Adegrees C
Size
30 MM,42 MM,79 MM
Standard
CSA C22.2 No 14,IEC 60947-1,IEC 60947-5-1,IEC 60947-5-4,JIS C8201-1,JIS C8201-5-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA WITH CABLE END EN 60947-1-SCREW CLAMP TERMINALS, >= 1 X 0.22 MMA WITHOUT CABLE END EN 60947-1
Type
Complete body/contact assembly and light block
Voltage
110...120 Volt AC 50/60 HZ

Manufacturer Information

Brand
Schneider Electric
Sub Brand
ZB5

General Product Info

12-Digit UPC
389110909596
GTiN
03389110909593
Product UPC
78590137650
Weight
0.119 kg

Dimensions

Height
42 mm
Warranty Length
18 mth
Width
30 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
BV,CSA,DNV,GL,LROS (Lloyds Register Of Shipping),UL Listed
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • ZB5AZ905
Cross Sell Products
  • NSYPLM43G
  • XALK84W3BE
Spare Part Products
  • ZBE101
  • ZBE102
