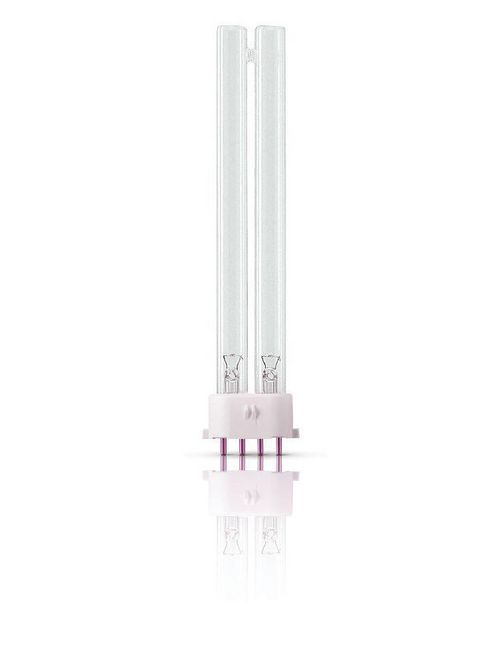

Product image for PHIL 285668 TUV PL-S 9W/4P 1CT/6X10
Image thumbnail 0
Image thumbnail 1
Email

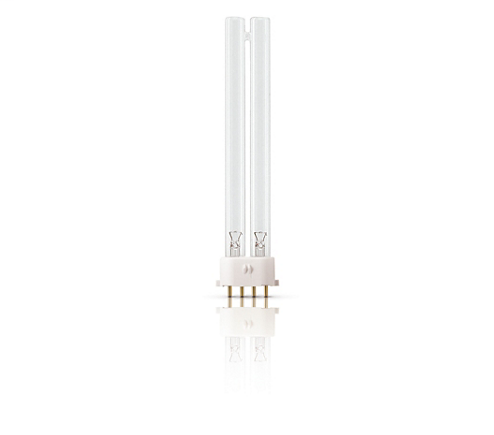

PHIL 285668 TUV PL-S 9W/4P 1CT/6X10

Manufacturer: Philips Lamps | Catalog # TUV PL-S 9W/4P 1CT/6X10BOX 285668 | Cooper Electric Part # 963471
$42.94/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Installation / Instruction Manual
PHILIP LIGHTING, VOLTAGE RATING: 263 V, WATTAGE: 18 W, BASE: Not assigned, LIFE AVERAGE RATED: 5,000 H

Technical Information

Amperage
0.17 Amp
Base
GX7.9
Bulb Shape
T12
Size
T12
Voltage
60 Volt
Wattage
9 Watt

Manufacturer Information

Brand
Signify

General Product Info

12-Digit UPC
711500710831
GTiN
08711500710833
Product UPC
71150071083
Weight
30.000 g
Warnings
  • DANGER: Risk Group 3 Ultra Violet product. These lamps emit high-power UV radiation that can cause severe injury to skin and eyes. Avoid eye and skin exposure to unshielded product. Use only in an enclosed environment which shields users from the radiation.
  • A lamp breaking is extremely unlikely to have any impact on your health. If a lamp breaks, ventilate the room for 30 minutes and remove the parts, preferably with gloves. Put them in a sealed plastic bag and take it to your local waste facilities for recycling. Do not use a vacuum cleaner.
  • Lamp contains mercury. Manage in Accord with Disposal Laws. See: www.lamprecycle.org or 1-800-555-0050
  • Protective inside coating ensures constant UV output over the complete lifetime of the lamp
  • Lamp glass filters out the 185 nm ozone-forming radiation
  • 4-Pin PL-S lamps are designed for use on electronic drivers
  • Good environmental choice because of lowest amount of mercury
  • High system efficacy because it is not required to over-design the purification system to maintain effectiveness of disinfection
  • Security of effective disinfection over the useful lifetime of the lamp
  • Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection purposes
  • Warning sign on lamp indicates that the lamp radiates UVC
  • 2-Pin PL-S lamp base contains a special starter for almost instant starting on electromagnetic drivers
Applications
  • Deactivation of bacteria, viruses and other micro-organisms
  • Pond water units
  • Residential drinking water units
  • Air treatment units
  • Stand-alone purifiers
