Thomas & Betts C73 12-10 AWG Wire Range 3/8 Inch Bolt Hole Metallic Non-Insulated Ring Terminal

Manufacturer: ABB | Thomas & Betts | Catalog # C73 | Cooper Electric Part # 96291
$121.12/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure

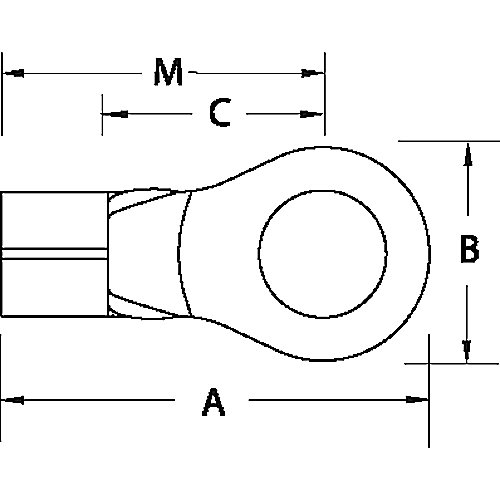

Non-Insulated Ring Terminal, Length 1.10 Inches, Width .59 Inches, Bolt Hole 3/8 Inch, Wire Range #12-#10 AWG, Copper, Tin Plated, 500 Pack

Technical Information

Barrel Type
Serrated
Conductor Size
12-10 AWG
Insulation Type
Non-Insulated
Material
Copper
Standard
UL E9809
Stud Size
3/8 in
Temperature Rating
150 degrees C
Type
Non-Insulated, Short Sleeve
Voltage
600 Volt
Wire Size
12-10 AWG

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210810843
Color
Metallic
Finish
Electro Tin Plated
GTiN
05414363149170
Product UPC
78621081084
Features
  • These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire.
Notes
  • Most terminals can be put on Mylar Tape for reel fed applications by adding the suffix M to the bulk catalog numbers.
