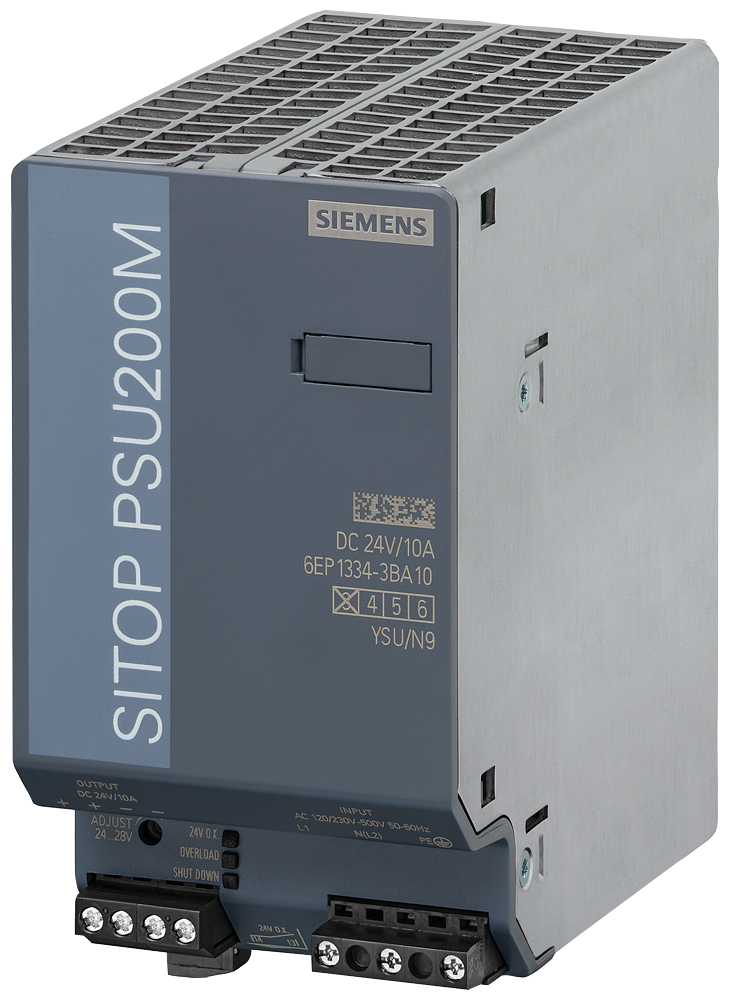

Product image for Siemens 6EP13343BA10 120/230 to 500 VAC Input 24 VDC 10 Amp Output Stabilized Power Supply
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Siemens 6EP13343BA10 120/230 to 500 VAC Input 24 VDC 10 Amp Output Stabilized Power Supply

Manufacturer: Siemens | Catalog # 6EP1334-3BA10 | Cooper Electric Part # 962610
$482.94/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
SITOP PSU200M 10 A STABILIZED POWER SUPPLY INPUT: 120/230-500 V AC OUTPUT: 24 V/10 A DC

Technical Information

Amperage
10 Amp
Applications
For Demanding Solutions and Provide Maximum Functionality for use in Complex Plants and Machines
Connection Type
Screw-Type Terminals
Efficiency
0.91
Frequency
47-63 Hz
Input Current
1.1 A
IP Rating
IP20,IP20
Net Weight
1 kg
Number of Phases
1,2 Phase
Output Voltage
24 V
Standard
UL 508,CSA C22.2 No. 60950-1,File E197259,CE,CSA,UL 60950-1,CB Approval,CSA C22.2 No. 107.1,UL
Type
4-Inlet, 1-Outlet, Rectangular, Power/Communication
Voltage
24 Volt
Wattage
240 Watt

Manufacturer Information

Brand
Siemens
Sub Brand
SITOP

General Product Info

12-Digit UPC
887621837259
Environmental Conditions
Cold Storage Temperature Range (-40 To +71 DEG C),Relative Humidity (0 PCT To 90 Pct),Storage Temperature Range (-25 To 71 DEG C)
GTiN
00887621837259
Product UPC
88762183725
Weight
1.764 lb

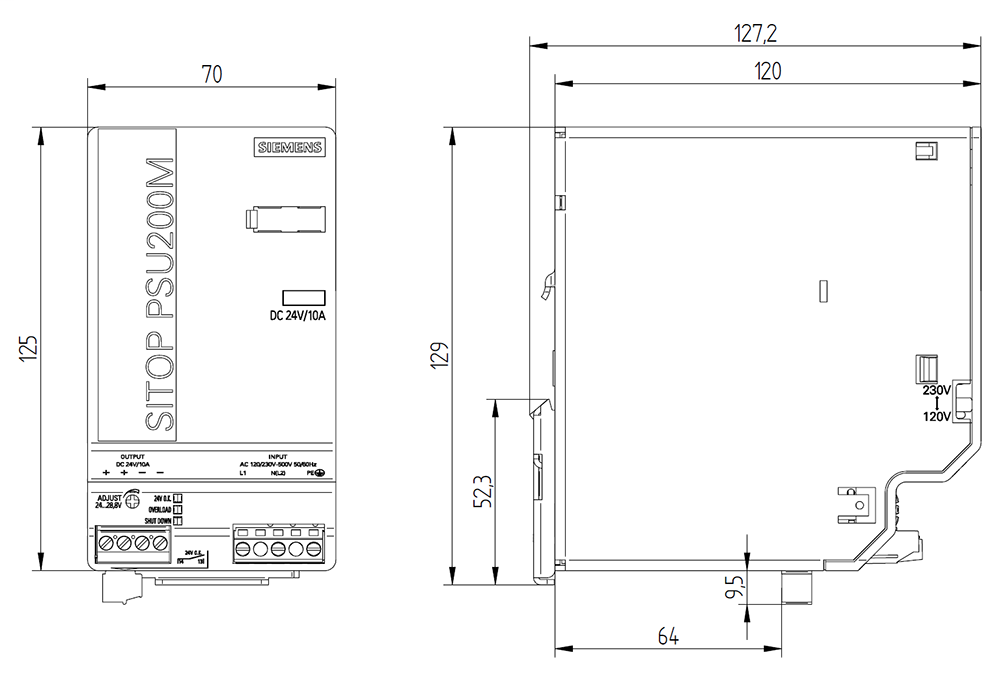

Dimensions

Depth
121 mm
Height
125 mm
Length
121 mm
Width
70.0 mm

Certifications and Compliance

Country of Origin
Romania
