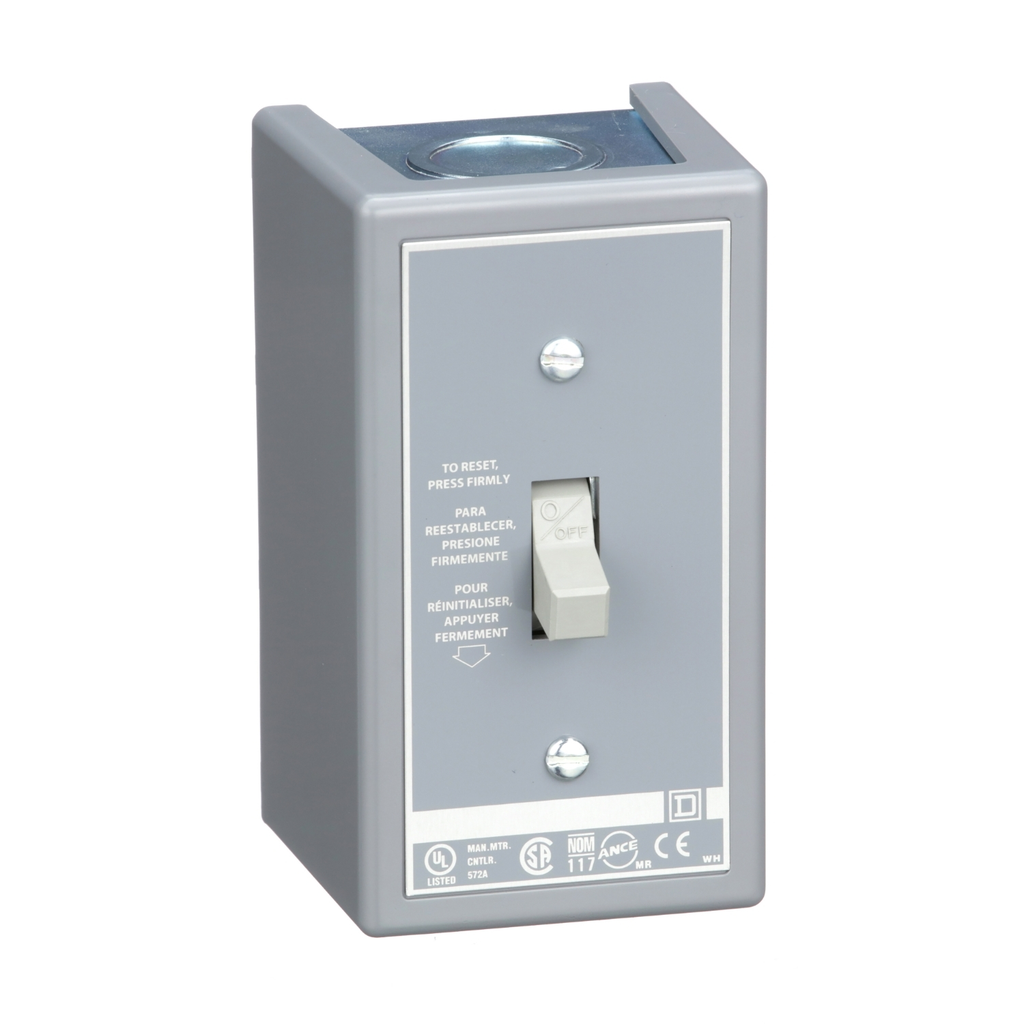

Square D 2510FG2 277 VAC 16 Amp 1 Hp 2-Pole NEMA 1 Surface Mount Non-Reversing Manual Starter

Manufacturer: Square-D / Schneider | Catalog # 2510FG2 | Cooper Electric Part # 96158
$104.04/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Tuesday 7:00am ET
50 available

For Delivery

Order by Tuesday 5:00pm ET for delivery Wednesday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 Product Brochure
2510F fractional horsepower non-reversing manual starters provides manual On-Off control with overload protection for small motors. Designed for fractional single phase motors up to 1 HP. The toggle operator provides an easy manual On-Off control of small motors. Pilot light option is available. Melting alloy thermal units are used with this manual starter to sense over current conditions. Overload thermal unit is ordered separately to match motor data. This 2 pole nonreversing manual starter has a 16A current rating. Starter has a 1 HP at 115 VAC, 2 HP at 230 VAC, 1 HP at 277 VAC and 0.75 HP at 115 and 230 VDC ratings. This NEMA 1 general purpose enclosure is a surface mounting enclosure. This manual starter is 4.25 inches tall, 2.44 inches wide and 2.88 inches deep. This device is without a pilot light indicator. Manual starter is UL listed and CSA certified.

Technical Information

Amperage
16 Amp
Applications
PROVIDES OVERLOAD PROTECTION AS WELL AS MANUAL ON/OFF CONTROL FOR SMALL MOTORS IN A VARIETY OF INDUSTRIAL AND COMMERICAL INSTALLATIONS.
Cable Entry
0.5 in
Current
16 Amp
Enclosure
1
Line Rated Current
16 A
Net Weight
0.36 kg
Number of Phases
1 Phase
Number of Poles
2 Pole
Reset Type
THERMAL - MELTING ALLOY
Size
2.75 in
TC Connection
Screw clamp terminals
Type
Single Unit Manual Starter
Voltage
230 Volt

Manufacturer Information

Brand
Square D
Sub Brand
F

General Product Info

12-Digit UPC
785901553953
Environmental Conditions
SINGLE UNIT METAL BOX - GENERAL PURPOSE
GTiN
00785901553953
Product UPC
78590155395
Weight
0.36 kg

Dimensions

Depth
2-3/4 Inch
Height
4-1/4 Inch
Warranty Length
18 mth
Width
2.44 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA LR25490 Class 3211 05,UL Listed File E42243 CCN NLRV
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • A.49
  • A.71
  • A.78
  • A.86
  • A.95
  • A1.02
  • A1.16
  • A1.25
  • A1.39
  • A1.54
  • A1.63
  • A1.75
  • A1.86
  • A1.99
  • A2.15
  • A2.31
  • A2.57
  • A2.81
  • A3.61
  • A3.95
  • A4.32
  • A4.79
  • A5.30
  • A5.78
  • A6.20
  • A6.99
  • A7.65
  • A8.38
  • A9.25
  • A9.85
  • A11.0
  • A11.9
  • A13.2
  • A14.1
  • A14.8
  • A16.2
  • A17.9
  • A19.8
  • A21.3
  • A25.2
  • A.59
