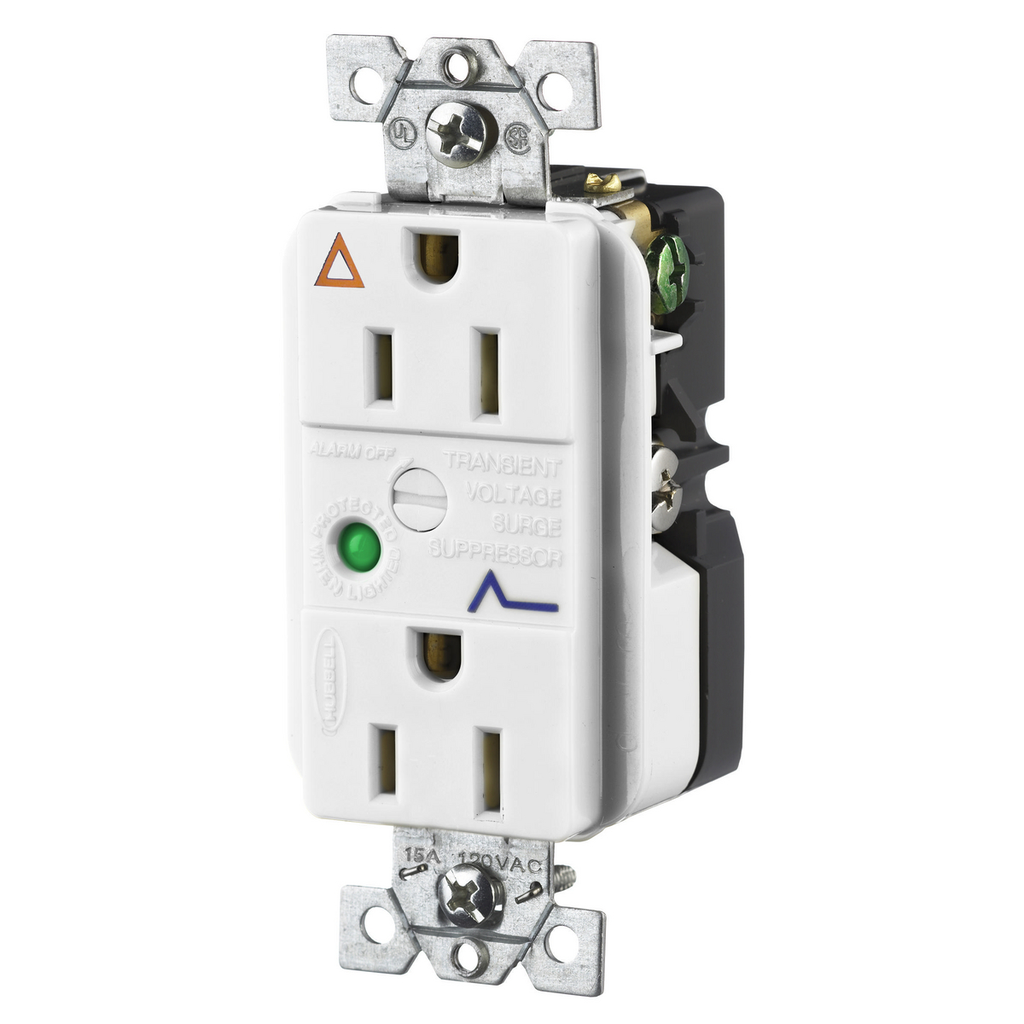

Product image for Hubbell IG5262WSADUP SPD Receptacle, IG, 15A 125V, 5-15R, WH
Email

Hubbell IG5262WSADUP SPD Receptacle, IG, 15A 125V, 5-15R, WH

Manufacturer: Hubbell Wiring Device | Catalog # IG5262WSA | Cooper Electric Part # 961494
$276.29/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
IG TVSS Duplex Receptacle with Light and Alarm, 15A 125V, 5-15R, White

Technical Information

Amperage
15 Amp
Applications
Decorator Duplex with Light and Alarm
Current
15 Amp
Frequency
60 Hz
Grade
Standard
Grounding
Isolated Ground
Material
Composite
Mounting Type
Screw
NEMA
5-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Operating Temperature
0 To 60 degrees C
Response Time
5n s
Size
Standard
Standard
C22.2 No. 42,CSA,File E2186,UL,UL Standards 498
Style
Isolated Ground
TC Connection
Terminal Screws
Temperature Rating
32 - 140 degrees F
Type
Non-Reversing
Voltage
125 Volt
Wire Count
3

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
SpikeShield®

General Product Info

12-Digit UPC
783585060675
Class
Normal and Common Mode
Color
White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585060675
Product Series
Specification Grade
Product UPC
78358506067
Weight
0.25 lb

Dimensions

Height
1.9 Inch
Length
4.2 Inch
Width
2.2 in

Certifications and Compliance

Certifications
UL Listed File E2186
Country of Origin
China
Features
  • Automatic self-grounding staple
  • Distinctive surge symbol provides quick identification
  • Power-on indicator light verifies that power is available
  • Alert alarm sounds when surge protection is no longer functioning
  • Isolated Ground
