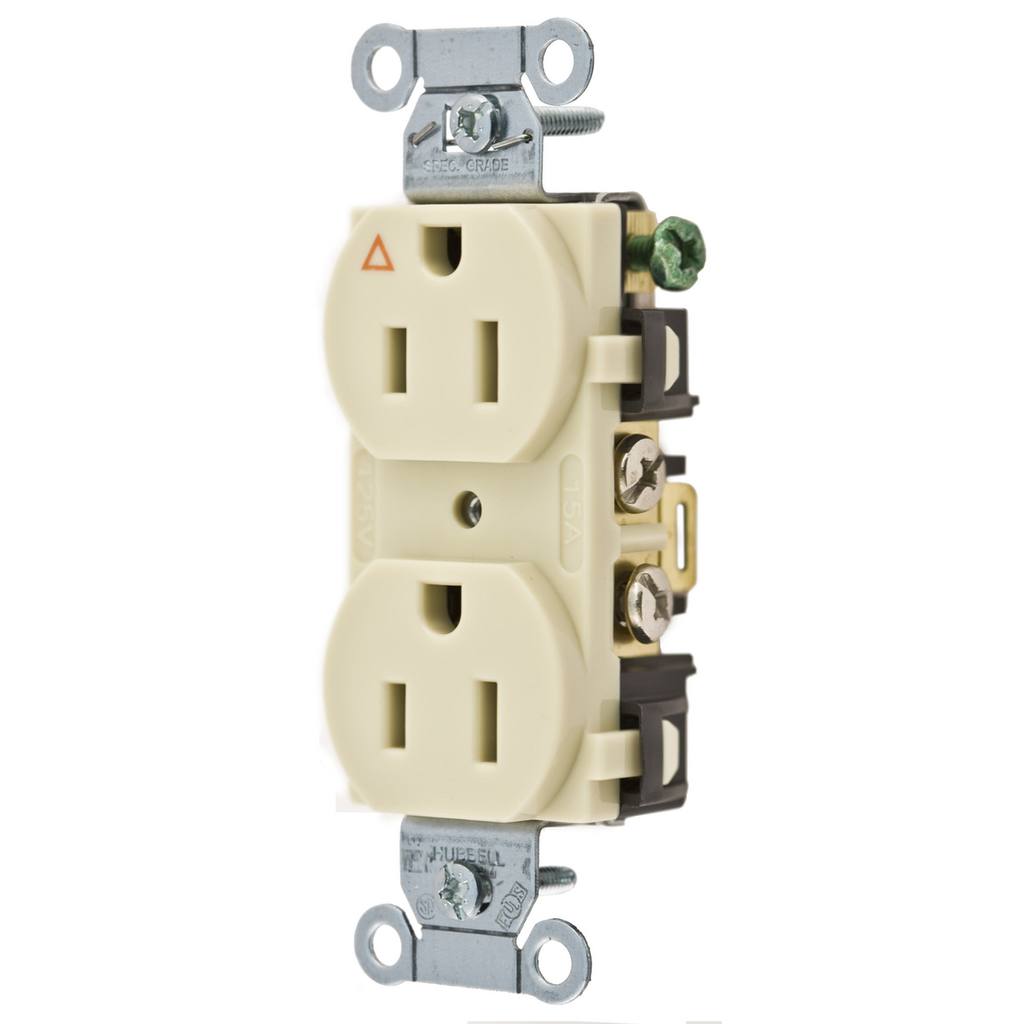

Product image for Hubbell IG5252I 15 Amp 125 Volt 2-Pole 3-Wire NEMA 5-15R Ivory Isolated Ground Straight Blade Duplex Receptacle
Image thumbnail 0
Image thumbnail 1
Email

Hubbell IG5252I 15 Amp 125 Volt 2-Pole 3-Wire NEMA 5-15R Ivory Isolated Ground Straight Blade Duplex Receptacle

Manufacturer: Hubbell Wiring Device | Catalog # IG5252I | Cooper Electric Part # 961488
$9.63/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Duplex, Commercial Grade, Isolated Ground, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Ivory, Single Pack.

Technical Information

Amperage
15 Amp
Applications
Hubbell-Pro
Base Material
Nylon,Nylon
Conductor Size
14-12 AWG
Connection Type
Back and Side Wired
Contact Material
Brass
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon,Nylon
Flamability Class
UL 94 V-2
Grounding
Isolated Ground
Horsepower
0.5 hp
Material
Thermoplastic
Mounting Type
Screw
NEMA
5-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Screw Material
Brass
Size
Standard
Standard
CSA 22.2,Fed. Spec. W-C-596,NEMA® WD-6,No. 42 File 285,UL,UL498 File No. E2186
Style
Smooth Face
TC Connection
Back and Side Wired Terminal Screws
Type
Traditional
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
14-10

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585146720
Color
Ivory
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTiN
00783585146720
Product Series
Hubbell-PRO
Product UPC
78358514672
Weight
0.15 lb

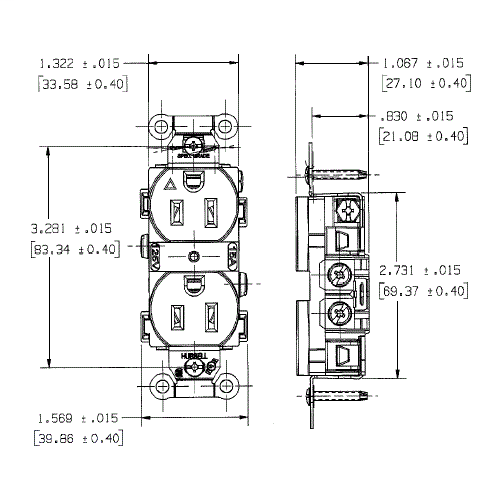

Dimensions

Height
1.07 Inch
Length
3.28 Inch
Width
1.57 in

Certifications and Compliance

Country of Origin
China
Features
  • Triangle marking on face indicates isolated ground
  • Slender/compact design
  • Smooth Face
Industry Standard(s)
  • Certified to CSA 22.2, No. 42 File 285
  • Fed. Spec. W-C-596
  • NEMA® WD-6 Compliant
  • UL Listed to UL498 File No. E2186
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - UL 94 V-2
  • Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact)
  • Mechanical - Product Identification - Ratings are a permanent part of the device
  • Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
