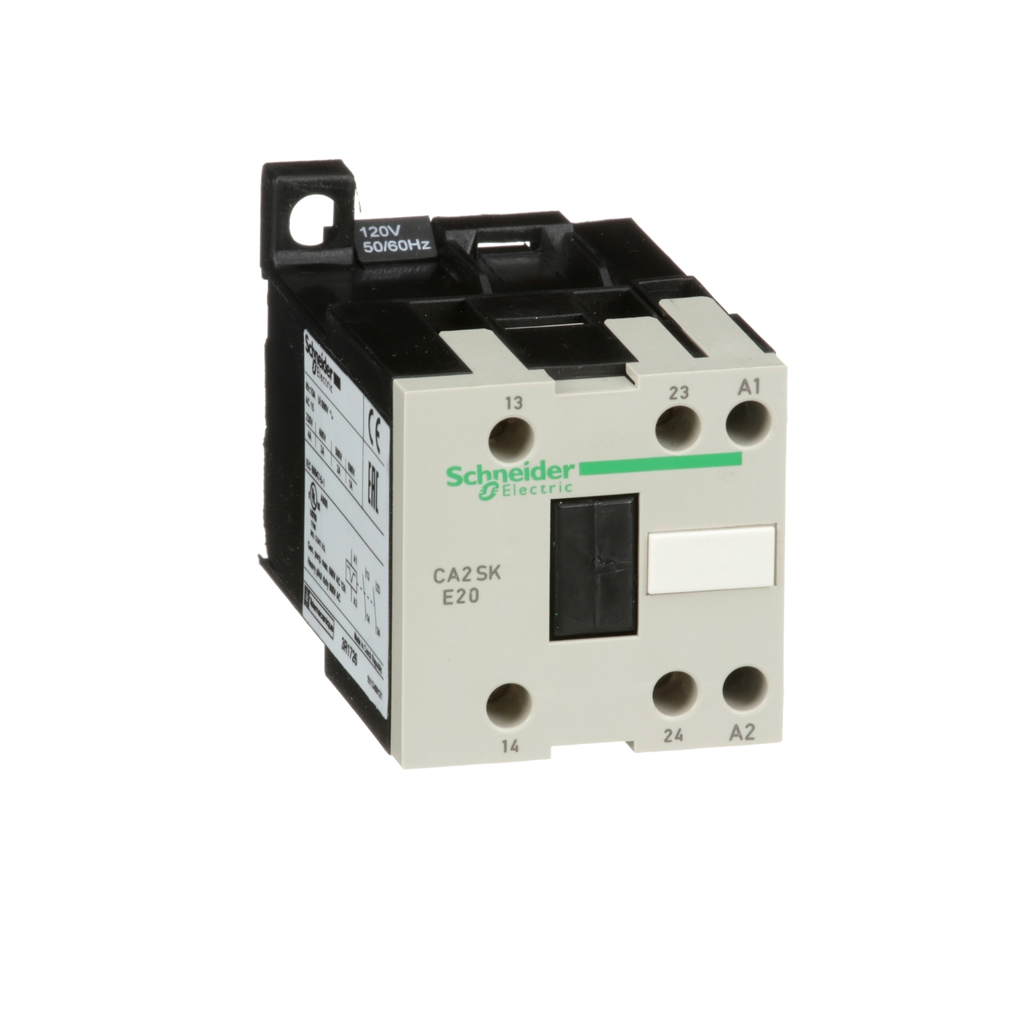

Product image for Square D CA2SKE20G7 120 VAC 10 Amp 4.2 VA 4-Pole IEC Control Relay
Image thumbnail 0
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Square D CA2SKE20G7 120 VAC 10 Amp 4.2 VA 4-Pole IEC Control Relay

Manufacturer: Square-D / Schneider | Catalog # CA2SKE20G7 | Cooper Electric Part # 95971
$161.16/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
1 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
TeSys SK industrial control relays are very compact relays that mount of DIN rail. The coil has an operating voltage of 120 VAC 50/60 Hz. Relay has 2 NO contacts. TeSys SK industrial control relays have a 10 ampere resitive ratinga and a NEMA A600 rating. Relays have screw clamp terminals. TeSys SK industrial control relays are UL Listed and CSA certified.

Technical Information

Amperage
10 Amp
Applications
Control circuit
Contact Configuration
2 NO
Contact Rating
<= 690 V <= 400 HZ
Enclosure
IP2X
Net Weight
0.132 kg
Operating Cycles
1200 cyc/h
Operating Temperature
-20-50 Adegrees C
Size
2.68 in
Standard
CSA C22.2 No 60947-5-1,EN/IEC 60947-5-1,UL 60947-5-1
Storage Temperature
-50-70 degrees C
TC Connection
SCREW CLAMP TERMINALS 1 1.5-6 MMASOLID- SCREW CLAMP TERMINALS 2 1.5-4 MMASOLID- SCREW CLAMP TERMINALS 1 0.5-6 MMAFLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 1 0.35-6 MMAFLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 2 0.35-1.5 MMAFLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 2 0.35-2.5 MMAFLEXIBLE WITHOUT CABLE END
Type
Control relay
Voltage
690 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
TeSys;TeSys CASK

General Product Info

12-Digit UPC
389110567086
GTiN
03389110567083
Product UPC
78590196716
Weight
0.132 kg

Dimensions

Depth
68 mm
Height
58 mm
Warranty Length
18 mth
Width
45 mm

Certifications and Compliance

Certifications
CB Scheme,CE,CULus,EAC,UKCA
Country of Origin
Czechia
Compatible Products
  • LA4SKC1U
  • LA4SKE1E
  • LA4SKE1U
Cross Sell Products
  • LA9D90
