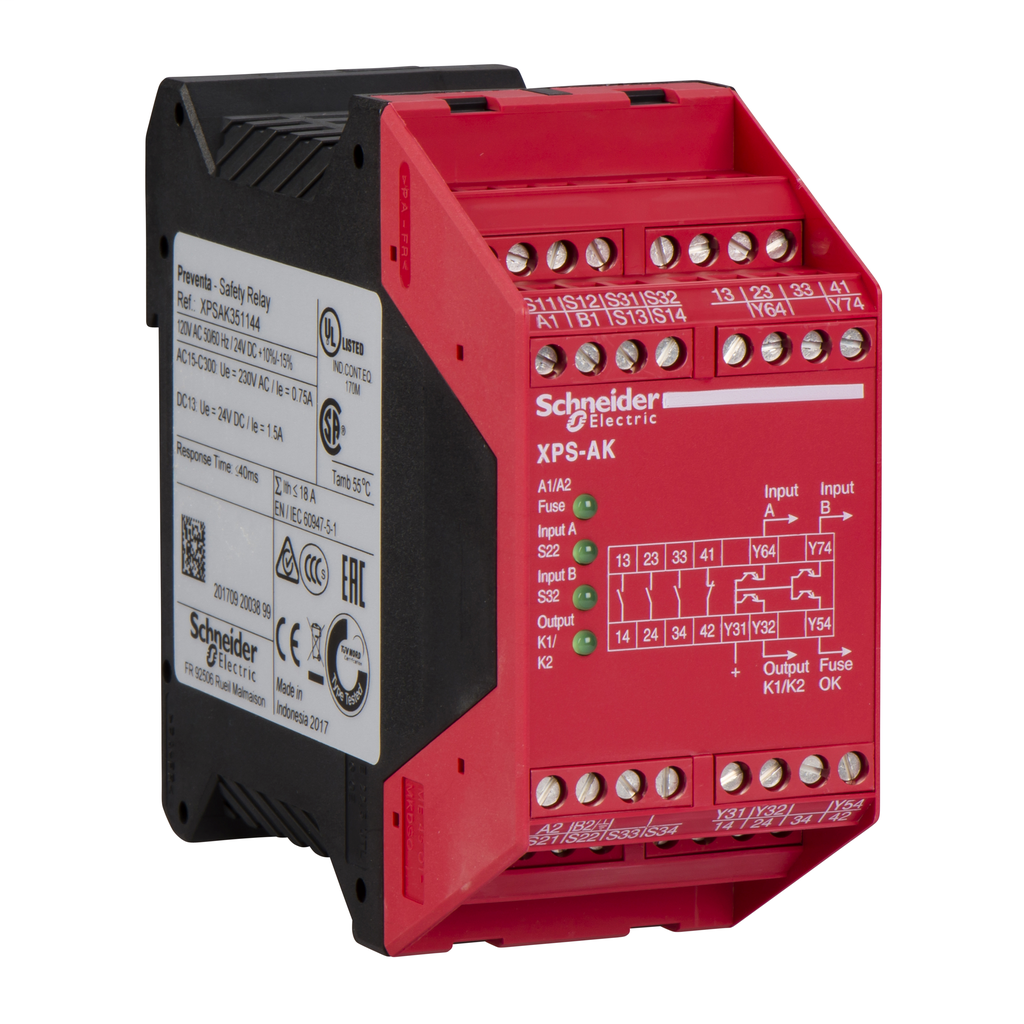

Product image for SQD XPSAR351144P SAFETY RELAY 300V
Image thumbnail 0
Image thumbnail 1
Email

SQD XPSAR351144P SAFETY RELAY 300V

Manufacturer: Square-D / Schneider | Catalog # XPSAR351144P | Cooper Electric Part # 958788
$840.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
This XPSAR safety module monitors emergency shutdown pushbuttons, limit switches and light curtains. It meets the requirements of Performance Level PL e/Category 4 conforming to standard EN/ISO 13849-1 and SILCL3 conforming to EN/IEC 61508 and EN/IEC 62061. It can be used for monitoring emergency stop circuits conforming to EN/ISO 13850 and EN/IEC 60204-1 and electrical monitoring of switches activated by protection devices conforming to standard EN/ISO 14119. And for monitoring of type 4 light curtains conforming to EN/IEC 61496-1 that have solid-state safety outputs with test function (light curtains XUS L). It is compatible with emergency push buttons, limit switches and safety light curtains, the 3 most common safety sensors in the industry. It has removable terminals for easier and better control wires tightening, thus improving installation reliability. It has additional solid-state output for communication with PLCs about safety status of your process.

Technical Information

Applications
EMERGENCY STOP MONITORING 1-CHANNEL WIRING-EMERGENCY STOP WITH 2 NC CONTACTS MONITORING 2-CHANNEL WIRING-MONITORING OF ELECTRO-SENSITIVE PROTECTION EQUIPMENT (ESPE)-MONITORING OF A MOVABLE GUARD ASSOCIATED WITH 2 SWITCHES AND AUTOMATIC START-MULTIPLE EMERGENCY STOP MONITORING 2-CHANNEL WIRING-MONITORING OF A MOVABLE GUARD,FOR EMERGENCY STOP, SWITCH AND SAFETY LIGHT CURTAIN MONITORING
Contact Configuration
7 N.O. (INSTANTANEOUS) 2 N.C - 4 SOLID STATE
Contact Rating
20 MA 24 V-2 A 24 V DC-13)50 MS RELAY OUTPUT,360 VA HOLDING AC-15 C300 RELAY OUTPUT-3600 VA INRUSH AC-15 C300 RELAY OUTPUT
Current
24 V
Output
RELAY INSTANTANEOUS OPENING, 7 NO, VOLT-FREE
Power Supply
115 V AC - 15...15 -24 V DC - 15...10
Standard
EN 1088/ISO 14119,EN/IEC 60204-1,EN/IEC 60947-5-1,EN/ISO 13850
TC Connection
CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 1 X 0.2...1 X 2.5 MMA FLEXIBLE WITH CABLE END, WITH DOUBLE BEZEL-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 1 X 0.2...1 X 2.5 MMA SOLID WITH CABLE END, WITH DOUBLE BEZEL-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 1 X 0.25...1 X 2.5 MMA FLEXIBLE WITH CABLE END, WITH DOUBLE BEZEL-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 2 X 0.2...2 X 1 MMA SOLID WITH CABLE END, WITH DOUBLE BEZEL-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 2 X 0.2...2 X 1.5 MMA FLEXIBLE WITH CABLE END, WITH DOUBLE BEZEL-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 2 X 0.25...2 X 1 MMA FLEXIBLE WITH CABLE END, WITH DOUBLE BEZEL-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 2 X 0.5...2 X 1.5 MMA FLEXIBLE WITH CABLE END, WITH DOUBLE BEZEL
Type
PREVENTA SAFETY MODULE

Manufacturer Information

Brand
Preventa
Sub Brand
PREVENTA

General Product Info

12-Digit UPC
785901344148
GTiN
03389110274318
Product UPC
78590134414
Weight
0.88 lb

Certifications and Compliance

CA Prop65 Warning
This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov
Certifications
CSA,TV,UL
Country of Origin
Indonesia
