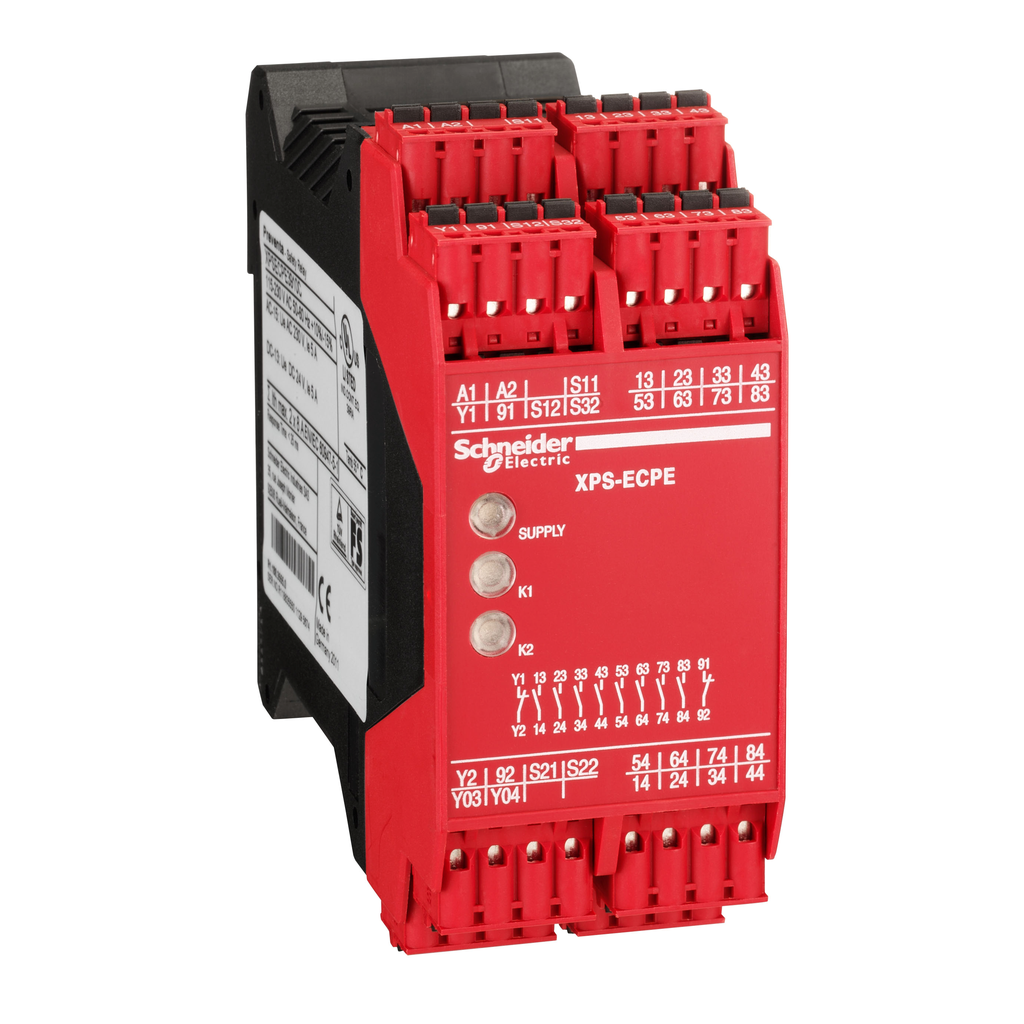

Product image for SQUARED XPSECPE3910P module XPSEC -
Image thumbnail 0
Image thumbnail 1

Email

SQUARED XPSECPE3910P module XPSEC -

Manufacturer: Square-D / Schneider | Catalog # XPSECPE3910P | Cooper Electric Part # 958508

$475.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
module XPSEC - increasing the number of safety contacts - 115..230 V AC DC

Technical Information

Applications
Increasing the number of safety contacts;Increasing the number of safety contacts
Contact Rating
3 A 24 V DC-13)50 MS RELAY OUTPUT-20 MA 24 V SOLID STATE OUTPUT CIRCUIT,360 VA HOLDING AC-15 B300 RELAY OUTPUT-3600 VA INRUSH AC-15 B300 RELAY OUTPUT
IP Rating
IP20,IP40
Net Weight
0.65 kg
Operating Temperature
-25-55 degrees C
Output
2 NC + 1 solid state output
Power Supply
115...230 V AC - 15...10
Rated Insulation Voltage
300 V
Standard
EN/IEC 60204-1,EN/IEC 60947-5-1
Storage Temperature
-25-70 degrees C
TC Connection
CAPTIVE SCREW CLAMP TERMINALS, 1 X 0.2...1 X 2.5 MMA SOLID WITHOUT CABLE END-CAPTIVE SCREW CLAMP TERMINALS, 1 X 0.2...1 X 2.5 MMA FLEXIBLE WITHOUT CABLE END-CAPTIVE SCREW CLAMP TERMINALS, 1 X 0.25...1 X 2.5 MMA FLEXIBLE WITH CABLE END, WITHOUT BEZEL-CAPTIVE SCREW CLAMP TERMINALS, 1 X 0.25...1 X 1.5 MMA FLEXIBLE WITH CABLE END, WITH BEZEL-CAPTIVE SCREW CLAMP TERMINALS, 2 X 0.2...2 X 1 MMA SOLID WITHOUT CABLE END-CAPTIVE SCREW CLAMP TERMINALS, 2 X 0.2...2 X 1 MMA FLEXIBLE WITHOUT CABLE END-CAPTIVE SCREW CLAMP TERMINALS, 2 X 0.25...2 X 1 MMA FLEXIBLE WITH CABLE END, WITHOUT BEZEL-CAPTIVE SCREW CLAMP TERMINALS, 2 X 0.5...2 X 1.5 MMA FLEXIBLE WITH CABLE END, WITH DOUBLE BEZEL
Type
Preventa safety module

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Telemecanique

General Product Info

12-Digit UPC
785901167846
GTiN
03389118380370
Product UPC
78590116784
Weight
1.43 lb

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,TV,UL
Country of Origin
Germany
