STI CS3636 36X36IN COMPOSITE SHEET

Manufacturer: Specified Technologies Inc | Catalog # CS3636 | Cooper Electric Part # 958335
$667.97/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet

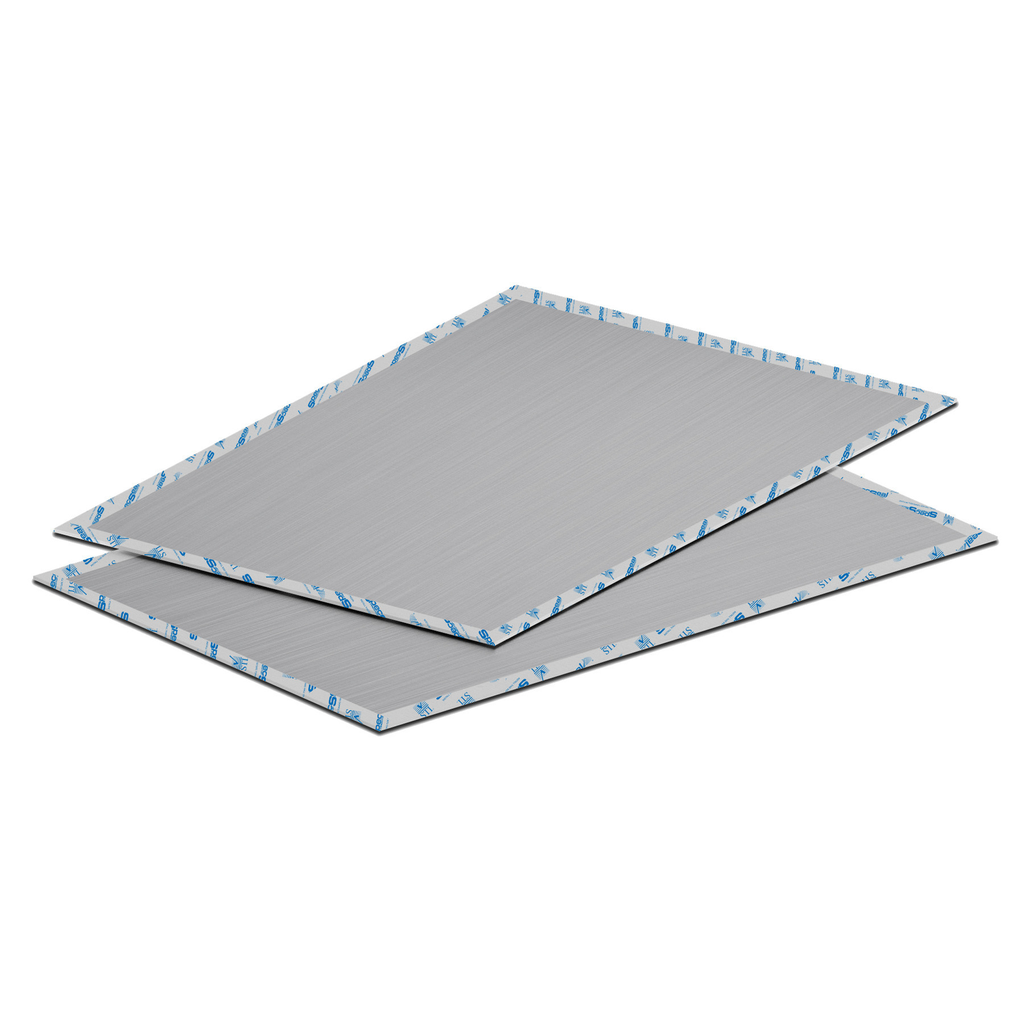

SpecSeal Composite Sheet is the ideal solution for large openings where a permanent seal is required. Composite sheet consists of a thin sheet steel with intumescent embedded onto a single side. Composite sheet partners with other SpecSeal firestop products such as Firestop Collars and EZ Path Devices to size down oversized openings.

Technical Information

Type
Composite Sheet

Manufacturer Information

Brand
SpecSeal

General Product Info

12-Digit UPC
730573136362
Color
Silver
Product UPC
73057313636
Weight
15.65 lb

Dimensions

Height
1-1/2 Inch
Length
36 Inch
Width
36 in

Certifications and Compliance

Country of Origin
USA
Features
  • The composite sheet shall be lightweight panel comprised of an intumescent layer bonded to a galvanized steel sheet reinforced with steel wire mesh covered with aluminum foil. The composite sheet shall provide a minimum 15x free expansion and shall contain no water soluble expansion ingredients. The composite sheet shall be UL Certified and tested to the requirements of ASTM E814 (UL1479) and CAN/ ULC-S115.
  • Easily cut with hand sheers., Tested for up to 4 Hours of fire resistance when tested to ASTM E814/UL1479., Profession Fit and Finish., Partners with other SpecSeal Firestop Products.
  • Profession Fit and Finish
  • Partners with other SpecSeal Firestop Products
  • Easily cut with hand sheers
  • Tested for up to 4 Hours of fire resistance when tested to ASTM E814/UL1479
Standards and Certifications
  • ASTM E814
  • UL 1479
  • CAN/ULC S115
  • ASTM E814 (UL1479)
  • CAN/ULC-S115
  • FM Approved: Yes
  • UL Certified Firestop: UL Certified
  • FBC System Compatible: No
Applications
  • Blank Openings
  • Busway
  • Cables
  • Cable tray
  • Duct
  • Metal Pipe. Multi Penetration
Properties
  • Finished Product
  • Intumescent
  • light weight
  • Low VOC
  • No Expiration
  • Paintable
  • Re-Enterable
  • Smoke Barrier
  • STC Rating
Construction Type
  • SpecSeal Composite Sheet is the basis for firestop systems that meet the exacting criteria of ASTM E814 (UL1479) and CAN/ULC-S115. UL Systems have been tested for all common forms of construction and many common penetrating items with ratings up to 4 hours.
Industry
  • Residential
  • Commercial
  • Industrial
  • Construction
  • Government
Recommended Use

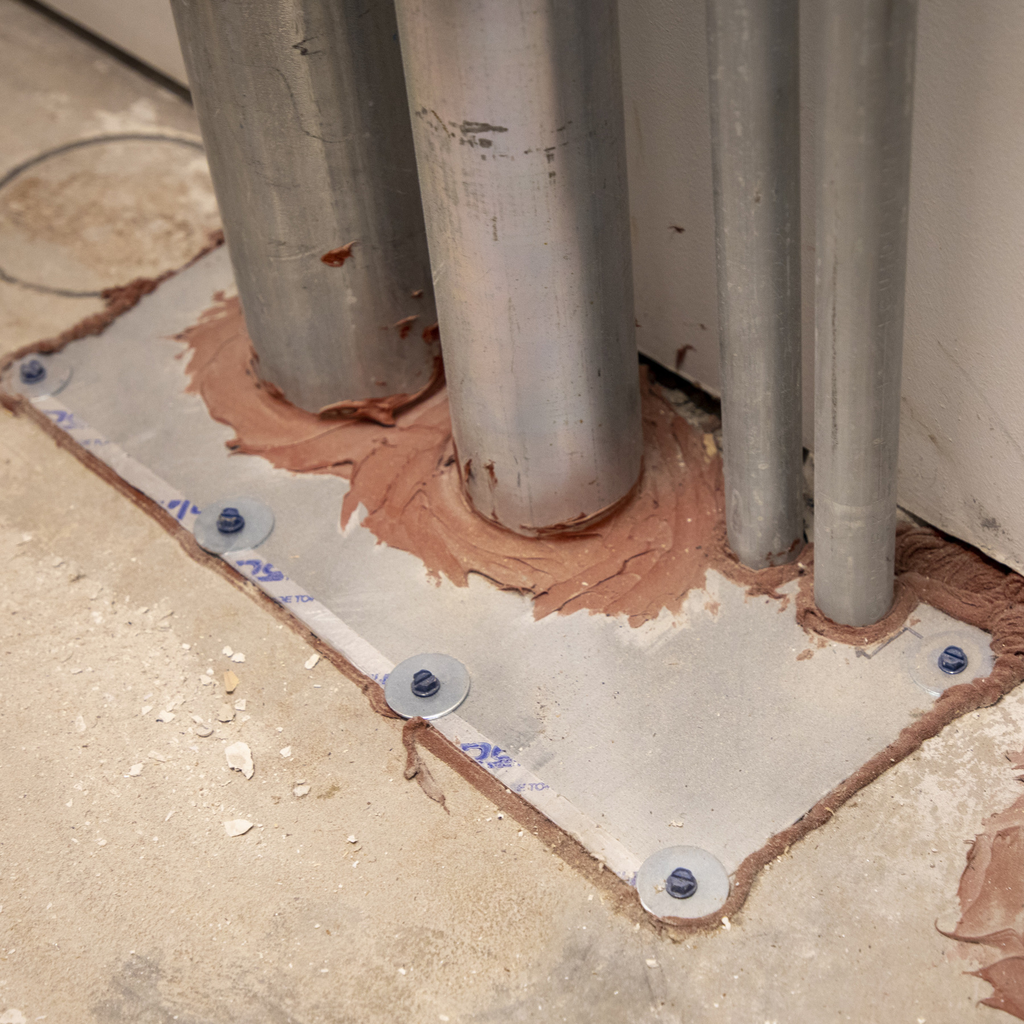

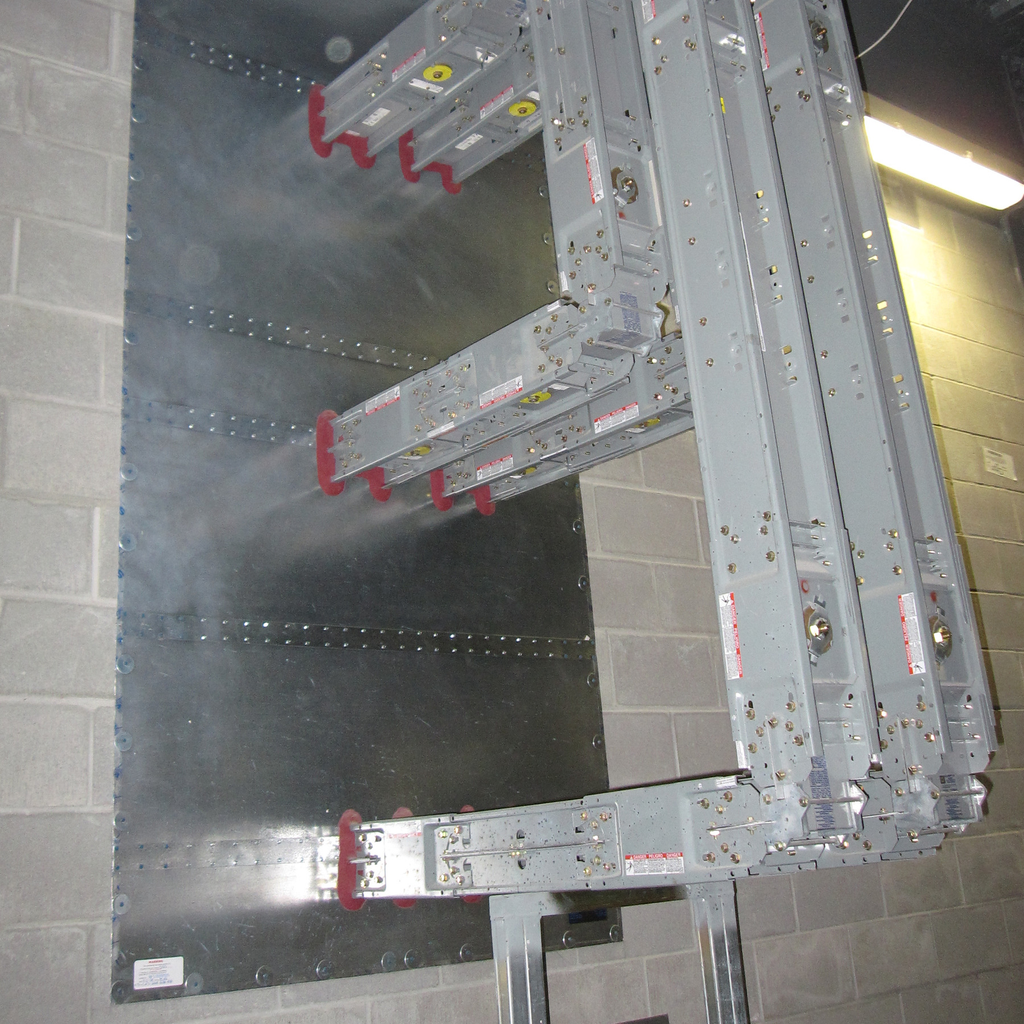

  • SpecSeal Composite Sheet is used in conjunction with other STI Firestop Products to seal penetrations through both fire-resistance rated walls and floors for metallic and non-metallic pipes, insulated pipes, cable trays, cables, conduits, steel ducts, busways, or blank openings. SpecSeal Composite Sheet provides an effective seal against fire, smoke, and combustion byproducts for openings of any shape in common construction assemblies
