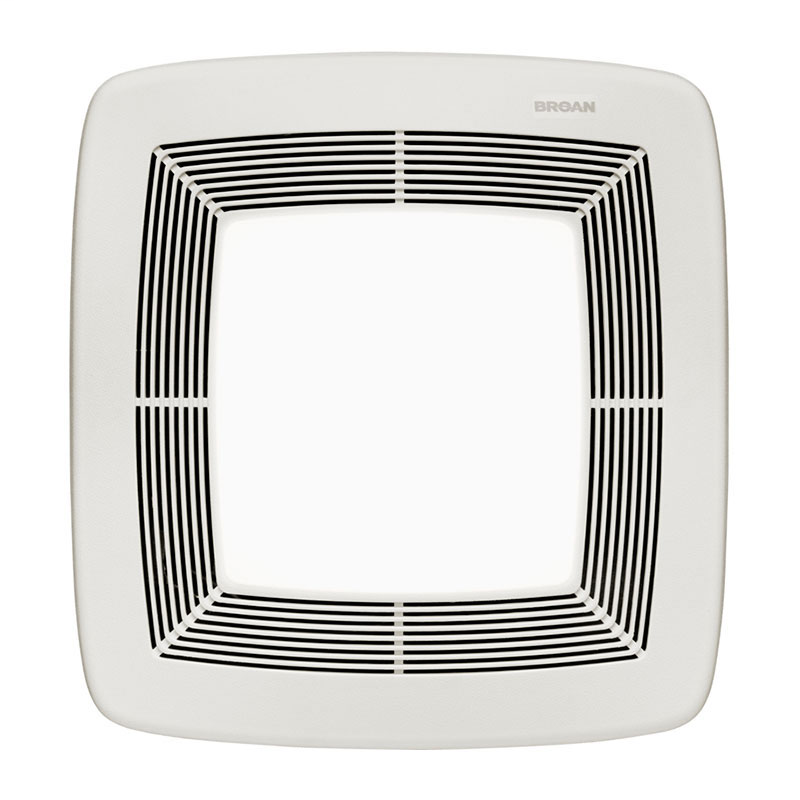

Broan RB80L 80 CFM Single-Speed Energy Star Qualified Fan with Light and Night Light

Manufacturer: Nutone | Catalog # RB80L | Cooper Electric Part # 957759
$319.77/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Installation / Instruction Manual
Broan ULTRA PRO™ Series Fans deliver everything you wished for in a bath fan . premium ventilation to help reduce airborne pollutants, extremely quiet operation, energy efficiency, consistent power and most impressively, the fastest, easiest, most universal installation available. These fans are ideal for both spot ventilation in humid bathrooms, as well as continuous ventilation to meet various building codes and Green Building standards.

Technical Information

Airflow Rate
80 CFM
Amperage
1 Amp
Bulb Included
Yes
Duct Size
4 in
Light Type
Fluorescent
Voltage
120 Volt
Wattage
28 Watt

Manufacturer Information

Brand
Broan-NuTone

General Product Info

12-Digit UPC
026715230068
GTiN
00026715230068
Product UPC
02671523006

Dimensions

Grille Length
13 in
Grille Width
13-3/4 in
Housing Height
7-5/8 in
Housing Width
11-3/8 in
Warranty Length
3 yr
Features
  • Powerful ventilation reduces humidity to quickly eliminate fogged mirrors and manage moisture, so your vision will always be clear and your surroundings will always be comfortable
  • QStream™ Technology - State-of-the-art blower design with airflow-smoothing baffles optimally smoothes airflow and reduce turbulence so the wheel can turn more slowly and quietly with no airflow loss
  • QFlow™ Technology - Duct connector damper flap is completely removed from airstream to reduce static pressure again, allowing the blower to turn more slowly and quietly, Damper also seals against perimeter surfaces when closed to prevent backdrafts
  • ULTRALucent™ Lighting Technology delivers high-power, dual LEDs providing superior light intensity. Long-life LEDs last up to 25,000 hours You get the best of both worlds; clear, even lighting with no hot spots and smaller energy bills. Dimmable LED can be adjusted to illuminate the room or provide a soft night light when installed with a dimmer switch (dimmer switch sold separately). CFL models also available
  • ULTRAQuick™ Installation Technology uses an exclusive telescoping mounting frame with pre-installed screws, snap-in housing, snap-in blower and an inside-out mounting duct connector that deliver the fastest, easiest, most universal installation
  • Retrofit installations can be done entirely from the room-side no attic access required. This means a faster, easier installation, so you can move on to something else
  • Unique telescoping mounting frame can be placed and fastened through drywall hole because it expands from 14 to 24 and fits any type of joist, I-Joist or truss construction for a no guesswork installation to make the work fast and easy
  • Snap-in housing and blower further simplify installation since you can hear and feel when they are properly seated. Easy-to-position carriage allows housing location adjustment between joists so you can control the correct ceiling placement
  • UL Listed for use over tubs and showers with a GFCI circuit; so you can capture the steam before it spreads throughout the room by locating your fan exactly where you need it the most
  • Can be used to comply with ASHRAE 62.2 and CALGreen
ULTRAQuick Installation Technology
  • ULTRA™ Series Ventilation Fans are engineered to be the fastest, easiest, most universal installation in remodel, retrofit, and new constructiontelescoping mounting frame can fit any type of joist or truss system. Exclusive features simplify room-side installation to save valuable time and money.
QFlow Damper Technology
  • Unique duct connector & damper design reduces static pressure, allowing the fan to operate more slowly and quietly, damper also seals tightly when closed to prevent backdrafts.
QStream Sound Technology
  • State-of-the-art blower design with airflow-smoothing baffles optimally smoothes airflow and reduce turbulence so the wheel can turn more slowly and quietly with no airflow loss.
ULTRALucent Lighting Technology
  • Provides 36 watt lights (two 18-watt bulbs included) delivering the brightness (measured in lumens) of models previously requiring 60 watts of CFL output.
