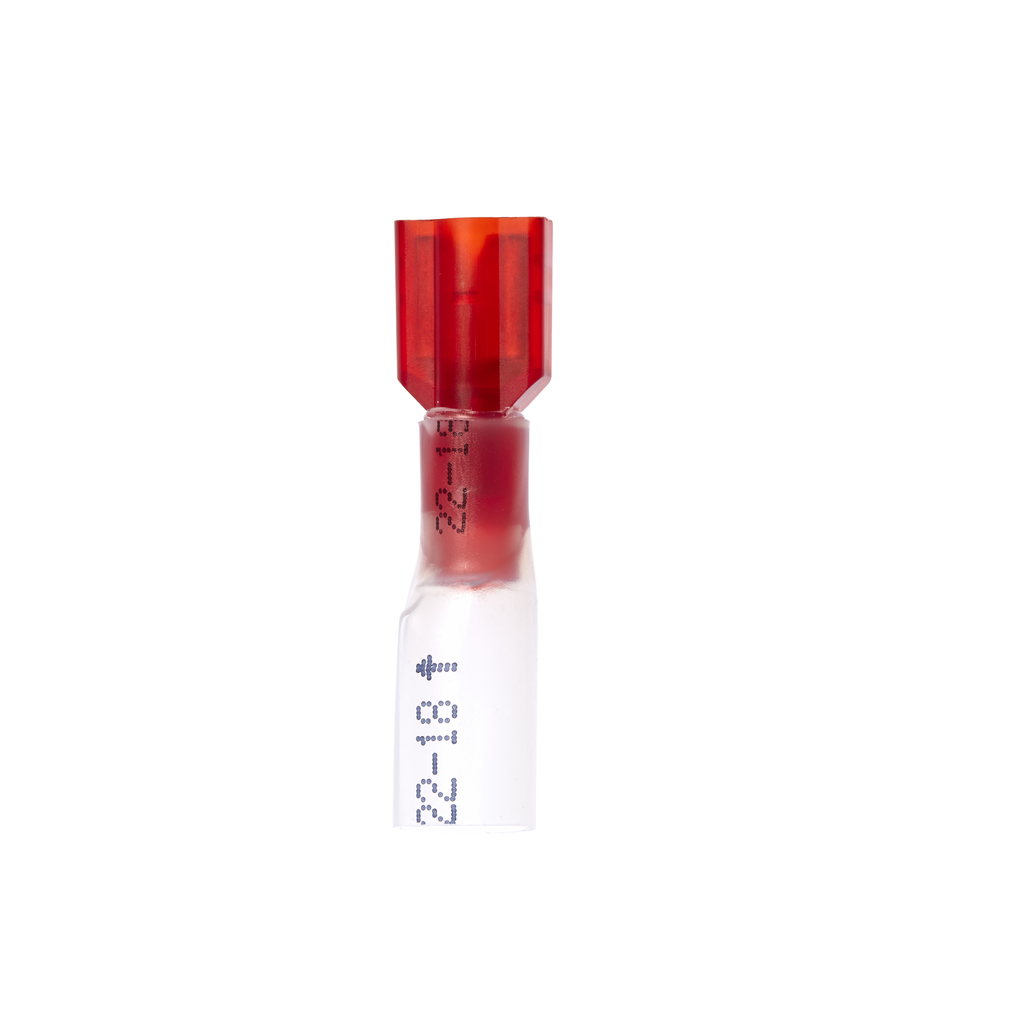

Product image for 3M 7100164285 3M™ Scotchlok™ Heat S
Email

3M 7100164285 3M™ Scotchlok™ Heat S

Manufacturer: 3M | Catalog # 7100164285 | Cooper Electric Part # 957705
$1.53/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page
3M™ Scotchlok™ Color-Coded Heat Shrink Female Disconnect Terminal has dents and rolled edges for easy disconnect. The butted-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands a maximum temperature of 221 degrees F (105 degrees C) and its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Technical Information

Barrel Type
Butted
Material
Heat Shrink
Terminal Size
22 - 18 AWG
Type
Disconnect

Manufacturer Information

Brand
3M
Sub Brand
Scotchlok™

General Product Info

12-Digit UPC
054007063551
GTiN
00054007063551
Product UPC
05400706355

Dimensions

Diameter
0.23 Inch
Overall Length
1.2 in
Width
0.37 in

Certifications and Compliance

Country of Origin
USA
Features
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
  • Mates with 0.25-in wide male tab
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Withstands a maximum temperature of 221 degrees F (105 degrees C)
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
