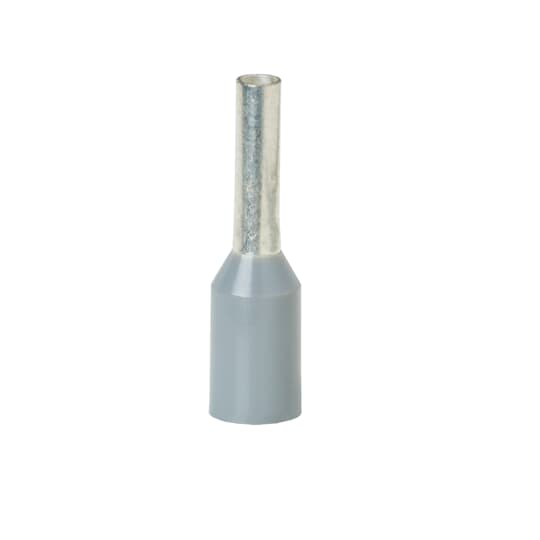

Product image for Thomas & Betts F2026 .70 Inch Length 18 AWG 75 mm.. Wire Range Nylon Insulated Ferrule
Image thumbnail 0
Image thumbnail 1
Email

Thomas & Betts F2026 .70 Inch Length 18 AWG 75 mm.. Wire Range Nylon Insulated Ferrule

Manufacturer: ABB | Thomas & Betts | Catalog # F2026 | Cooper Electric Part # 956222
$42.76/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure

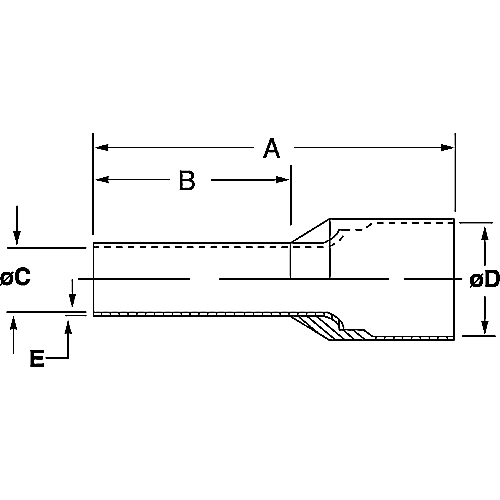

Polypropylene-Insulated Ferrule, Total Length .709 Inches/18.0mm, Pin Length .472 Inches/12mm, Pin Diameter .051 Inches/1.3mm, Base Diameter .11 Inches/2.8mm, Wire Range 18 AWG/.75mm2, Color Gray, Copper, Tin Plated

Technical Information

Conductor Size
18 AWG
Contact Material
Copper
Insulation Type
Insulated Nylon
Material
Copper
Standard
UL E489056
Strip Length
12 mm
Temperature Rating
105 degrees C
Type
Polypropylene Insulated Ferrule
Wire Size
18 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210339955
Color
Gray
Finish
Electro Tin Plated
GTiN
05414363151074
Product UPC
78621033995

Dimensions

Overall Length
0.7 in
Features
  • Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks.
Notes
  • Ferrule dimensions conform to DIN 46228, Part 4.
