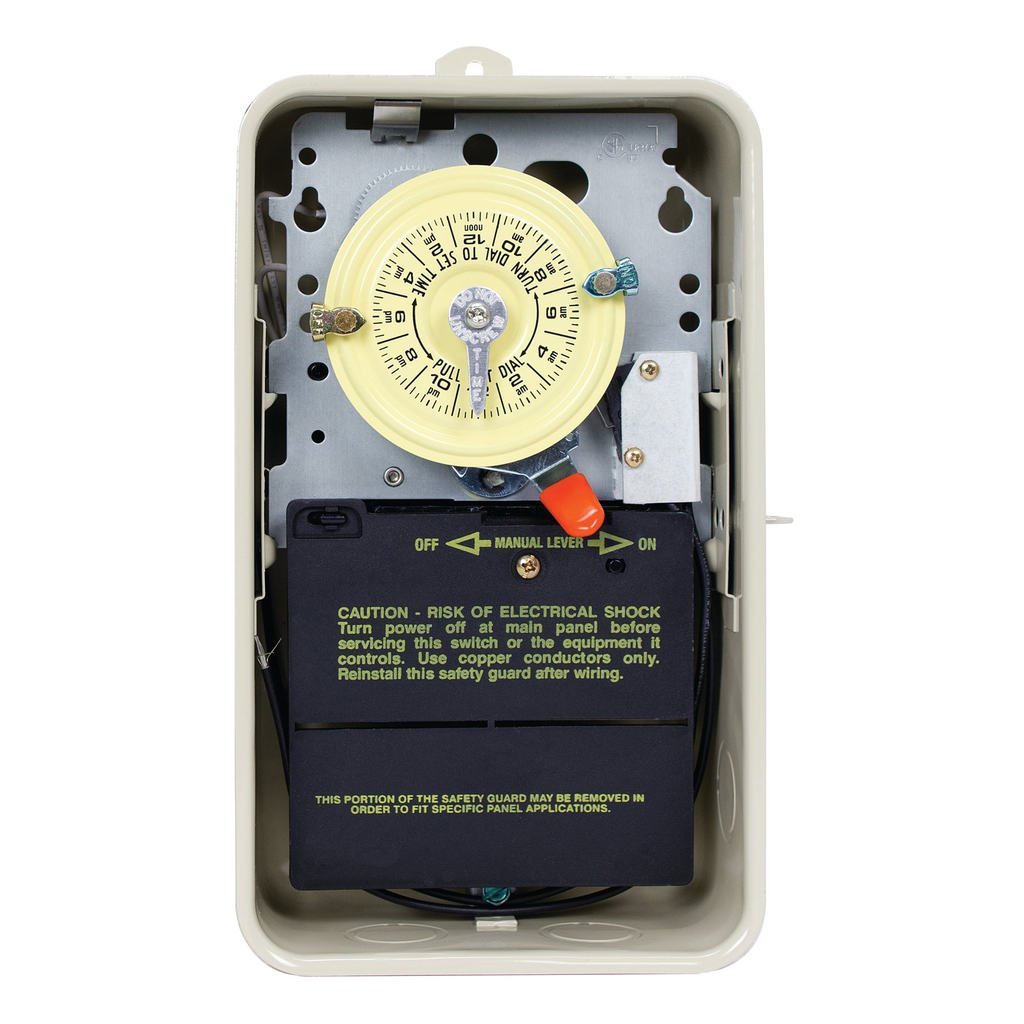

Product image for Intermatic T104R201 NEMA 3R Steel Case 208 to 277 VAC 60 Hz 40 Amp DPST Electromechanical Time Switch with Pool Heater
Email

Intermatic T104R201 NEMA 3R Steel Case 208 to 277 VAC 60 Hz 40 Amp DPST Electromechanical Time Switch with Pool Heater

Manufacturer: Intermatic, Inc | Catalog # T104R201 | Cooper Electric Part # 95546
$323.59/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Closes 5:00pm ET
7 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
Heavy-duty mechanical time switches control a single load

Technical Information

Action
DPST
Applications
Heater Thermostat Control,Motor Control,Pump Control,Water Circulation
Contact Configuration
2 NO
Contact Rating
40 AMP @ 120 - 480 VAC (Resistive), 40 AMP @ 120 - 277 VAC (Tungsten, Inductive)
Enclosure
NEMA 3R Steel
Frequency
60 Hz
Input Voltage
208-277 V
Max Operating Temperature
130 degrees F
Min Operating Temperature
-40 degrees C
Mounting Type
Wall Mount
Number of Circuits
1
Number of Poles
2 Pole
Operating Temperature
-40 To 130 degrees F
Power Consumption
3 W
Standard
CCSAus Certified
Switch Type
DPST
Type
Mechanical
Voltage
208-277 VAC

Manufacturer Information

Brand
NA

General Product Info

12-Digit UPC
078275000070
Color
Gray
GTiN
00078275000070
Product UPC
07827500007

Dimensions

Depth
3-5/8 Inch
Height
10-1/8 Inch
Warranty Length
1 yr
Width
6.5 in

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - Lead
Country of Origin
Mexico
Features
  • Highest motor load ratings in the industry
  • 12 ON/OFF operations per day
  • One ON and one OFF tripper included
  • Available with pool heater protection
  • Teeter-type terminals for multiple load connections
  • NA
