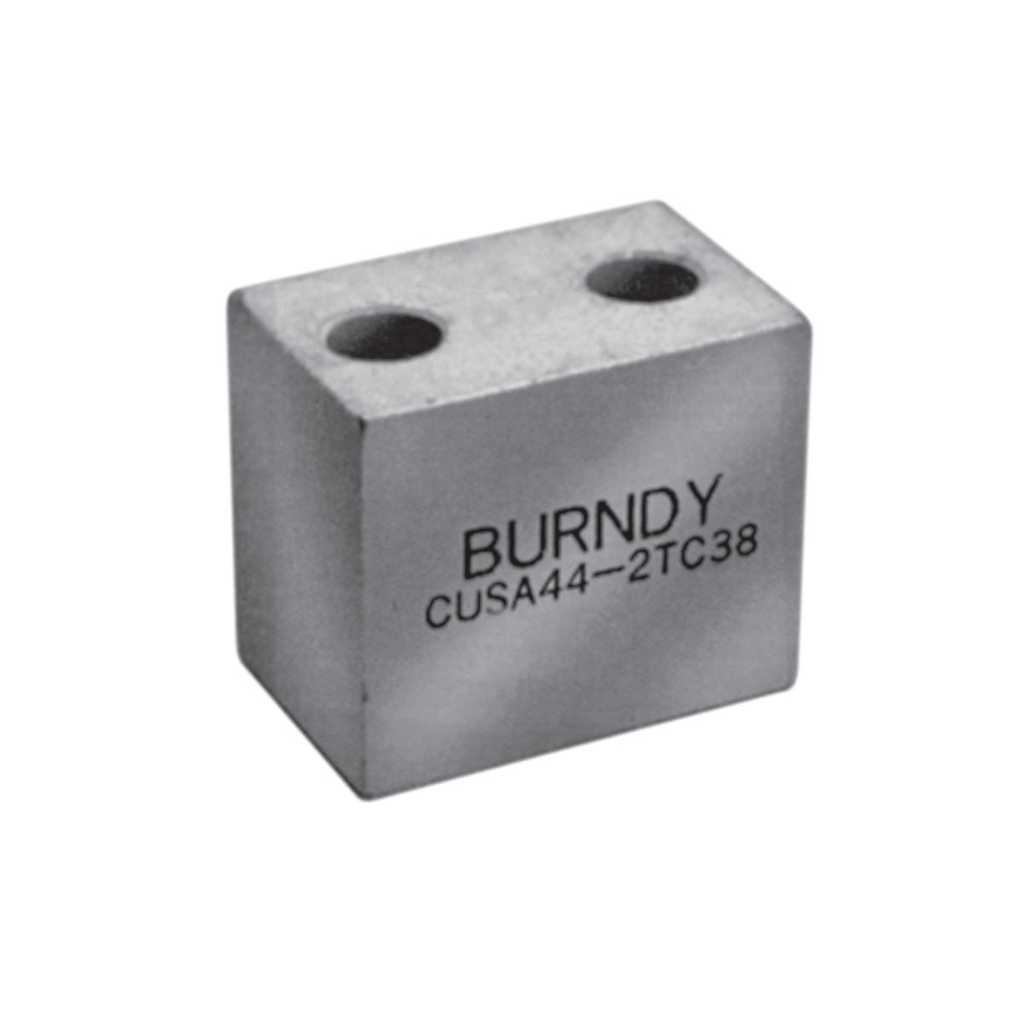

Product image for Burndy CUSA442NTC Copper, tin plated, 2 hole (1/2" stud - 1-3/4" hole spacing), up to 35kV, used to elevate terminals for vertical parallel conductor accommodates Adapter length 300", width 112", height 150
Email

Burndy CUSA442NTC Copper, tin plated, 2 hole (1/2" stud - 1-3/4" hole spacing), up to 35kV, used to elevate terminals for vertical parallel conductor accommodates Adapter length 300", width 112", height 150

Manufacturer: Burndy | Catalog # CUSA442NTC | Cooper Electric Part # 955133
$122.28 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
BAA | Buy American Compliant BAA | Buy American Compliant Product Spec Sheet
Cu Alloy Hystack; 2 Holes; 10 AWG-750 kcmil; 600V-35kV; 1/2" stud; Tin Plated; Compression

Technical Information

Applications
Designed to get terminals to the back end of a bus bar or other areas that require terminals to be elevated off the mounting surface
Bolt Size
1/2 IN
Conductor Material
COPPER
Conductor Size
1 AWG
Conductor Type
CU C Str-Size
Connection Type
STACKING ADAPTER
Material
Copper
Max Voltage
35000 V
Plated?
Yes
Plating Type
Tin - Electro Plated
Stud Size
1/2 in
Temperature Rating
194
Type
Standard Barrel, Tin Plated
Wire Size
1000 kcmil

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810269176
Finish
Tin-Plated,Tin-Plated
GTiN
00781810269176
Product UPC
78181026917

Dimensions

Height
1-1/2 Inch
Length
3 Inch
Overall Length
76 mm
Width
1.13 in

Certifications and Compliance

BAA | Buy American Compliant
Y
Country of Origin
USA
CSA
No
Features
  • For use on terminals made from copper
  • Designed specifically for stacking standard terminals, uses include placing the stacking adapter on the mounting plate and a terminal on top of the stack adapter and bolt down, or placing a stacking adapter on a terminal pad that will be mounted to a bus bar or mounting plate and a terminal on top of the stacking adapter, and bolt down
  • May be used with standard NEMA two and four hole terminals, to stack four hole NEMA terminations requires use of two stacking adapters assembled side-by-side
  • Stacking adapters are clearly marked
