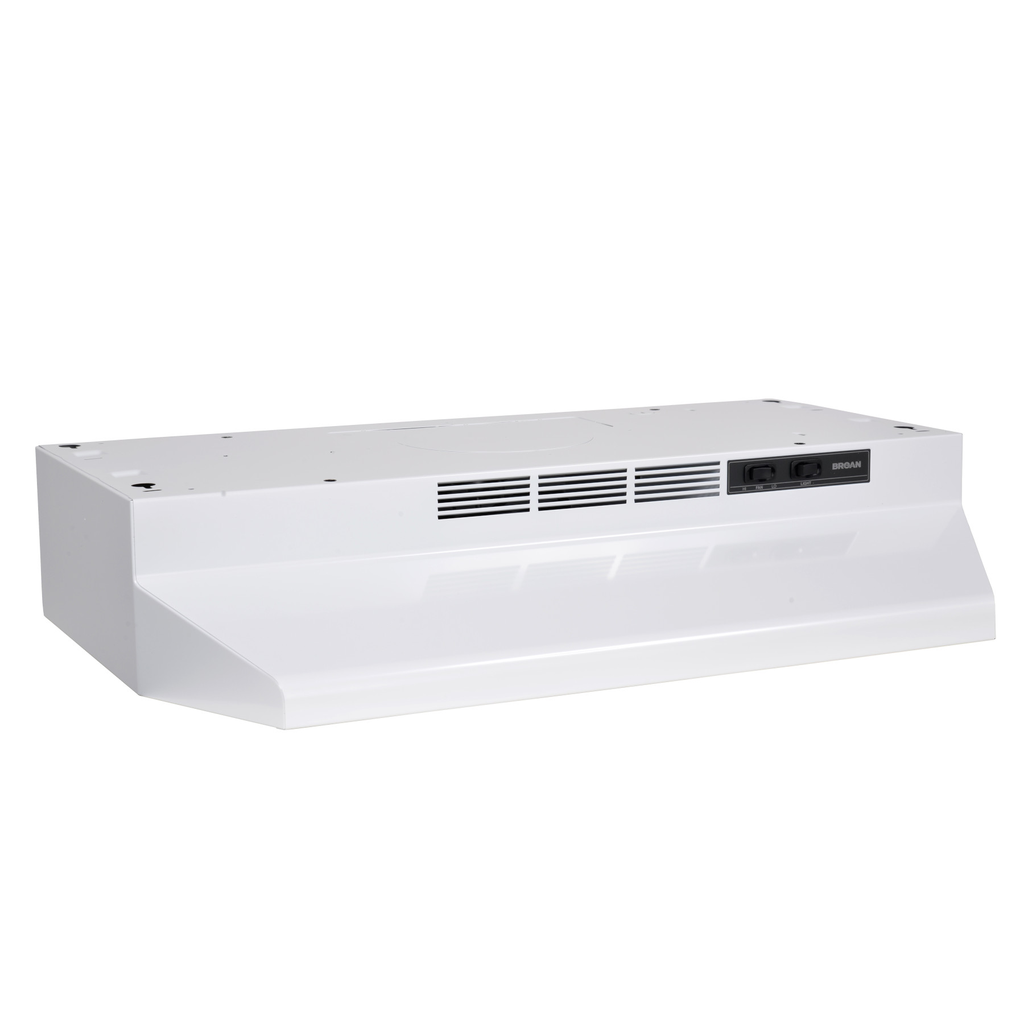

Product image for BROAN F403601 White Range Hood
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

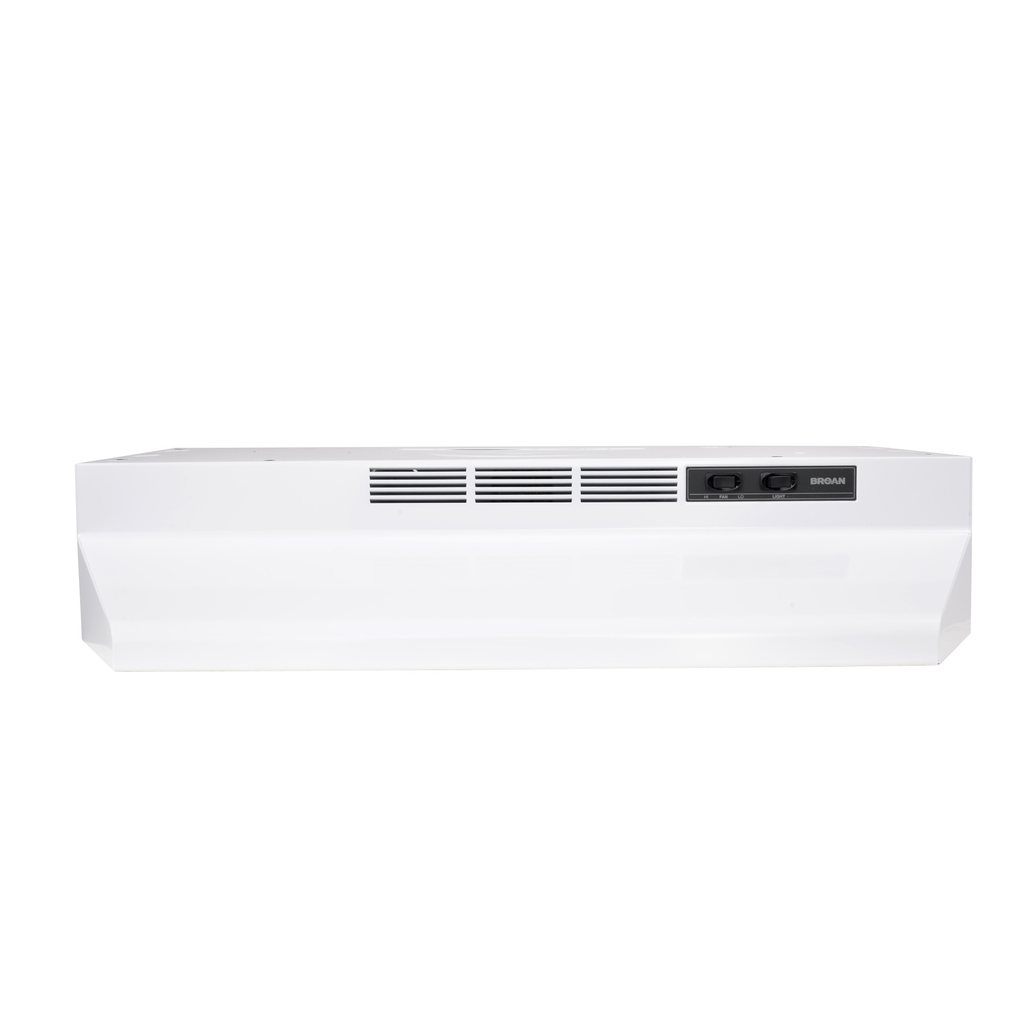

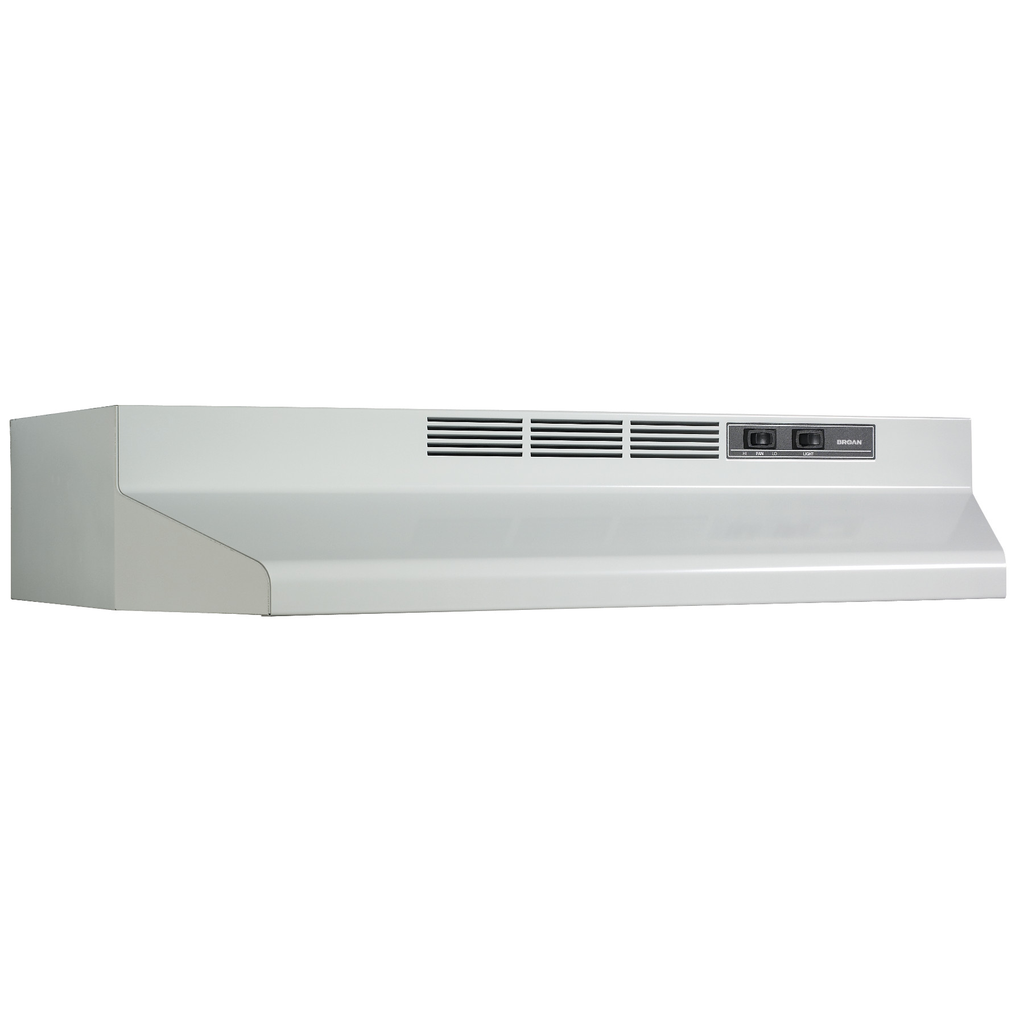

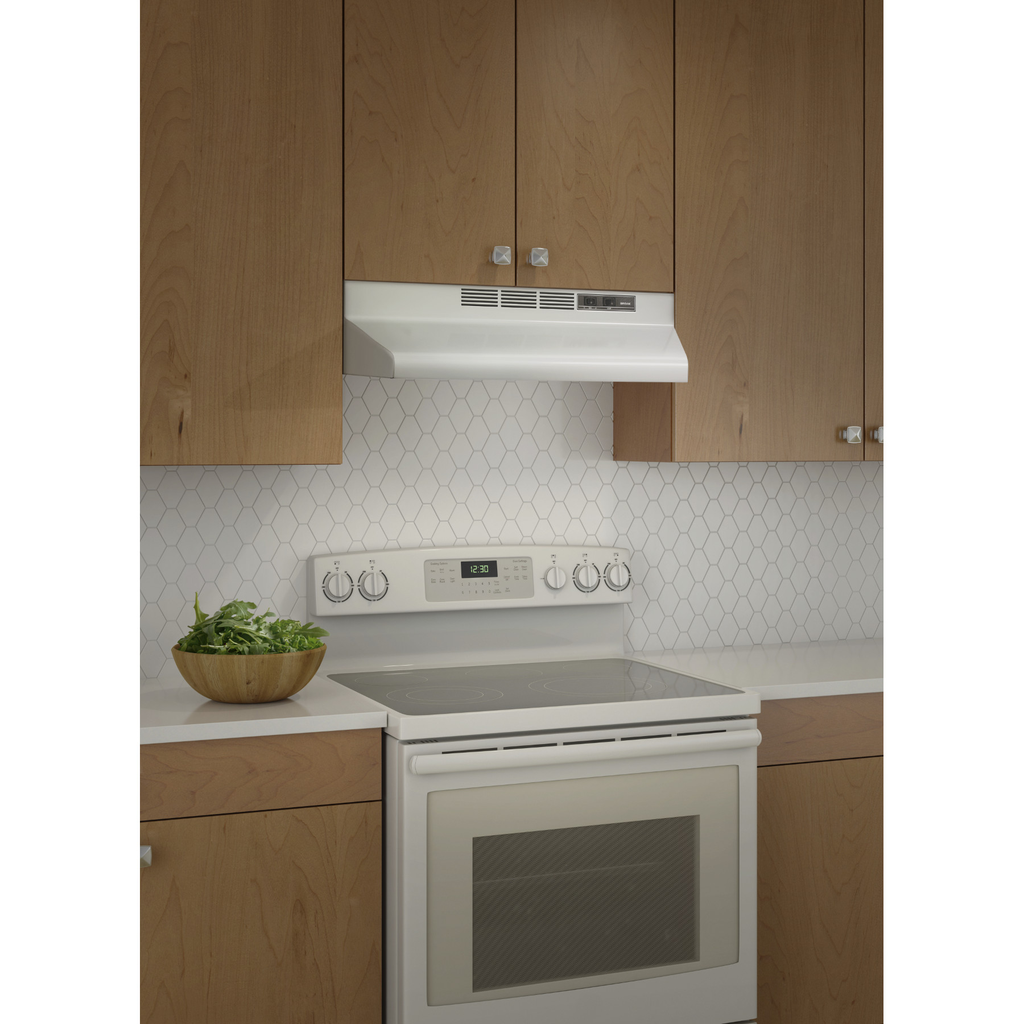

BROAN F403601 White Range Hood

Manufacturer: Nutone | Catalog # F403601 | Cooper Electric Part # 954914
$177.73/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
The F40000 series provides installation flexibility with 4-way convertibility to fit virtually all applications. The hood is designed for under cabinet use and installs as 3-1/4 in. x 10 in. ducted opening with vertical or horizontal ducting; or 7 in. round vertical ducting or as non-ducted with air recirculation. The hood is equipped with a 230 MAX Blower CFM designed for years of trouble free service, an easy to clean grease filter, a protective lamp lens that distributes light evenly over the cook-top, and control switches for fan speed and light activation

Technical Information

Airflow Rate
160 CFM
Amperage
2.5 Amp
Bulb Included
No
Duct Shape
Rectangular,Round
Duct Size
7 in
Filter Type
Aluminum
Indoor Outdoor
No
Light Type
Incandescent
Material
Steel
Mounting Type
Under-Cabinet
Nightlight
No
Style
Traditional
Switch Type
Rocker
Voltage
120 Volt
Wattage
300 Watt

Manufacturer Information

Brand
Broan-NuTone

General Product Info

12-Digit UPC
026715143023
Color
White
Finish
White
GTiN
00026715143023
Product Series
Economy
Product UPC
02671514302
Weight
13.05 lb

Dimensions

Depth
17-1/2 Inch
Height
6 Inch
Length
17-1/2 Inch
Warranty Length
1 yr
Width
36 in

Certifications and Compliance

Country of Origin
USA
Features
  • Provides installation flexibility with 4-way convertibility to fit virtually all applications
  • Simple to use rocker switches let you adjust the fan speed and the light setting separately
  • Two fan speeds help you tackle a variety of venting jobs
  • 230 Max Blower CFM quickly removes smoke and cooking odors from the air
  • Vertical and horizontal exhaust option lets you connect the ductwork to the top or rear of the range hood
  • Removable, reusable, dishwasher-safe aluminum mesh filter for easy cleaning and maintenance; supports ductless filtration via non-ducted filter (purchase separately)
  • Uses up to a 75-Watt in incandescent light to brightly illuminate the cooking area (bulb sold separately)
  • Includes a 3-1/4 in. x 10 in. damper/adapter and a 7 in. round adapter for easy installation (7 in. damper sold separately)
  • Enclosed light and fan/filter assemblies, mitered corners and hemmed edges for good looks and easy cleaning
  • One year limited warranty
  • UL listed and HVI 2100 certified
  • 2-speed blower quickly pulls smoke and odors from the air
  • Brighten up your cooktop area with up to a 75 watt bulb
  • Configurable remote operation to meet ADA compliance standards
Includes
  • Damper;filter;hardware
  • Instructions
