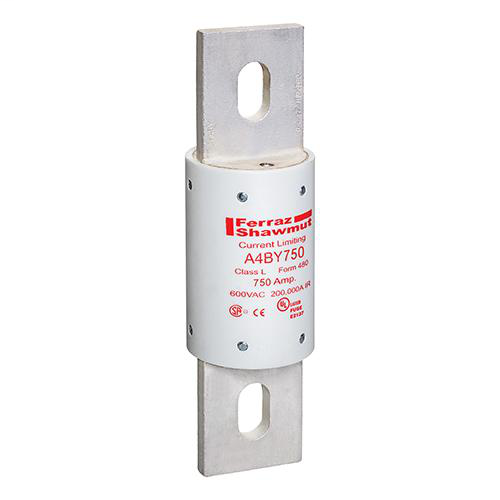

Product image for Mersen A4BY750 600V 750A L TD FUSE
Email

Mersen A4BY750 600V 750A L TD FUSE

Manufacturer: Mersen | Catalog # A4BY750 | Cooper Electric Part # 954875
$1,601.10/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Amp-Trap A4BY fuses have been the industry's favorite when it comes to protecting service entrance equipment, feeder circuits, and circuit breakers. The A4BY is a 100percent rated device and may be applied at continuous currents up to its ampere rating. A 4-second minimum time delay at 500percent rating allows the A4BY to pass normal current surges and to coordinate with ground fault relays.

Technical Information

Amperage
750 Amp
Applications
For Mains, Feeders, Circuit Breakers, Load Centers, Panelboards, Switchboards, Metering Centers
Contact Material
Silver Plated Copper
Fuse Class
Class L
Insulation Material
GMG
Interrupt Rating
100, 200 kAIC
Mounting Type
Bolt-On
Rated Voltage AC
600 V
Rated Voltage DC
300 V
TC Connection
Blade
Terminal Material
Silver-Plated Copper
Terminal Type
Blade
Type
Time-Delay, Low Voltage
Voltage
600 VAC, 300 VDC

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Ferraz Shawmut Canada, Inc.
Sub Brand
Amp-Trap®

General Product Info

12-Digit UPC
782001939106
Class
L
Construction
Glass Melamine
GTiN
10782001939103
Product UPC
78200193910
Weight
3.95 lb

Dimensions

Diameter
2 Inch
Length
8.63 Inch
Features
  • Unique dimensions prevent replacement by other fuse classes
  • Blade-stamped catalog numbers for permanent identification
  • Glass melamine body and plated terminals provide superior reliability in harsh environments
Applications
  • Mains
  • Feeders
  • Circuit Breakers
  • Load centers
  • Panelboards
  • Switchboards
  • Metering Centers
Approvals & Standards
  • Mersen Self-Certification, UL Listed to Standard 248-10, File E2137
  • CSA Certified to Standard C22.2, No. 248.10 IEC 269-2-1
  • DC Tested to UL 248 limits (Mersen Self-Certified)
