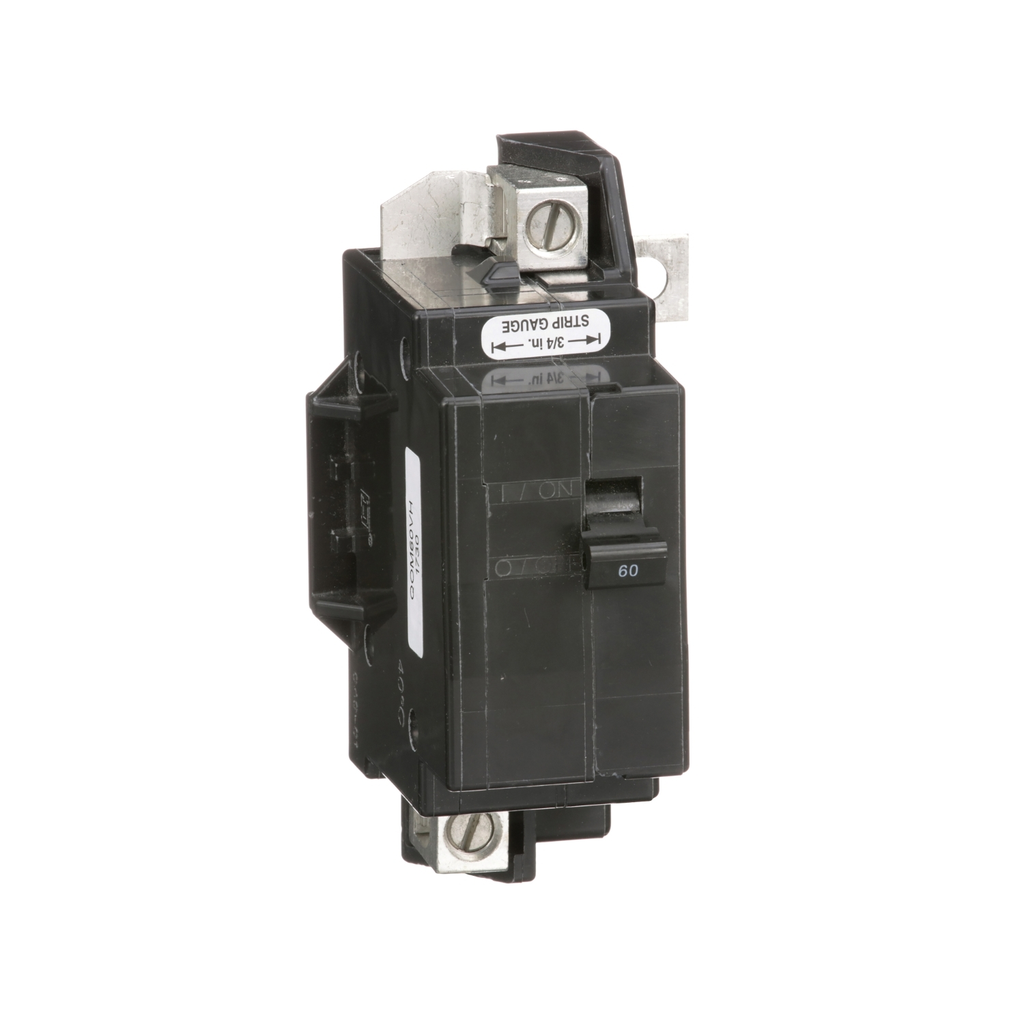

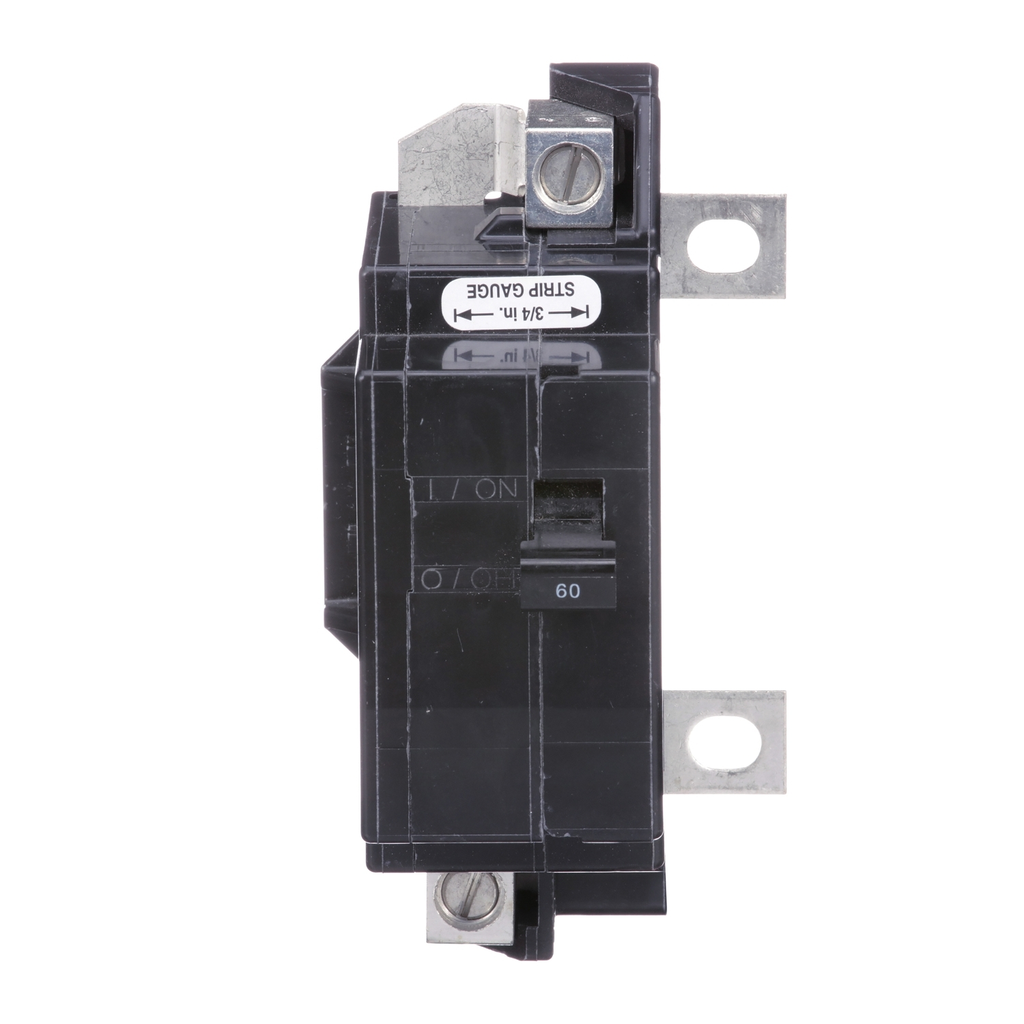

Square D QOM60VH Main Circuit Breaker 60A 120/240V 1Ph 2P , Bolt-On

Manufacturer: Square-D / Schneider | Catalog # QOM60VH | Cooper Electric Part # 95478
$140.00/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Wednesday 7:00am ET
3 available

For Delivery

Order by Wednesday 5:00pm ET for delivery Thursday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Product Brochure
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick break action and positive handle indication They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This QOB miniature breaker is rated as 60 A, 120/240 V, and 2 pole. This unit can be used as a main breaker with 22 kA breaking capacity and bolt on mounting. A full line of factory installed accessories is also available such as shunt trips, auxiliary switches and alarm switches. QO breakers use a compact 3/4 inch width design for small system footprint. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555

Technical Information

Amperage
60 Amp
Applications
LOAD CENTER MAIN BREAKER
Circuit Breaker Type
Standard
Conductor Size
4-2/0 AWG
Current
60 Amp
Interrupt Rating
10, 22 kAIC
Line Rated Current
60 A
Mounting Type
Bolt-on
Net Weight
0.562 kg
Number of Phases
1 Phase
Number of Poles
2 Pole
Operating Temperature
40 Adegrees C
Range
QO NULL
Short Circuit Current
10 kA
TC Connection
BOX LUGS
Trip Range
60 A
Type
CIRCUIT BREAKER
Voltage
120/240 Volt
Wire Size
AWG 4...AWG 2/0 aluminium/copper NULL

Manufacturer Information

Brand
Square D
Sub Brand
QO

General Product Info

12-Digit UPC
785901879602
GTiN
00785901879602
Product UPC
78590187960
Used With
QO load center;Homeline load center NULL
Weight
0.562 kg

Dimensions

Depth
5 in
Height
5.08 in
Length
5 Inch
Warranty Length
18 mth
Width
3.46 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,UL Listed
Country of Origin
Mexico
Carbon Footprint Of The Installation Phase A5
  • 0.0029606254
  • 0 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 0.1 kg CO2 eq.
  • 0.0757822022
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 2 kg CO2 eq.
  • 2.2403615731
Accessories
  • QO1HT
  • QOTHT
  • QO3HT
  • QO1LO
  • HLO1
  • QOHPL
  • QO1PA
  • QOTHPA
  • QO1PAF
  • QO2DTI
Persona Type Names
  • End User
  • Contractor
  • Original Equipment Manufacturer
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 248 kg CO2 eq.
  • 248.4799930762
Accessory Products
  • QO1HT
  • QOTHT
  • QO3HT
  • QO1LO
  • HLO1
  • QOHPL
  • QO1PA
  • QOTHPA
  • QO1PAF
  • QO2DTI
Persona Type Ids
  • EU
  • LC
  • OM
Carbon Footprint Of The Distribution Phase A4
  • 0.0725681737
  • 0.1 kg CO2 eq.
Tightening Torque
  • 6-6 N.m 4-65 mm² (AWG 12...AWG 2/0)
AWG Gauge
  • AWG 4...AWG 2/0 aluminium/copper
Product Destination
  • load center QO
  • load center Homeline
  • QO load center
  • Homeline load center
UE Rated Operational Voltage
  • 120/240 V AC
