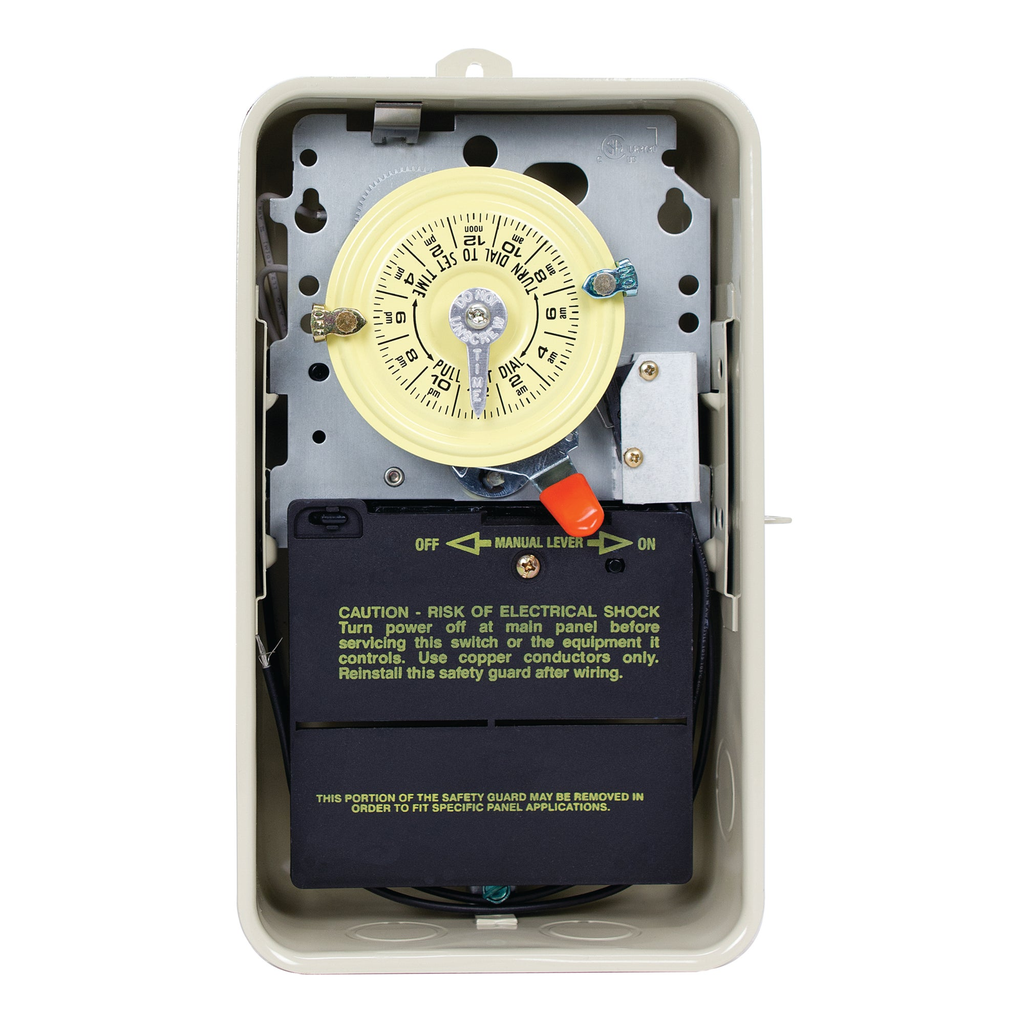

Intermatic T101R201 NEMA 3R Steel Case 125 VAC 60 Hz 40 Amp SPST Electromechanical Time Switch with Pool Heater

Manufacturer: Intermatic, Inc | Catalog # T101R201 | Cooper Electric Part # 95221
$320.58/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
1 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
Heavy-duty mechanical time switches control a single load

Technical Information

Action
SPST
Applications
Heater Thermostat Control,Motor Control,Pump Control
Contact Configuration
1 NO
Contact Rating
40 AMP @ 120 - 480 VAC (Resistive), 40 AMP @ 120 - 277 VAC (Tungsten, Inductive)
Enclosure
NEMA 3R Steel
Frequency
60 Hz
Input Voltage
120 V
Max Operating Temperature
130 degrees F
Min Operating Temperature
-40 degrees C
Mounting Type
Wall Mount
Number of Circuits
1
Number of Poles
1 Pole
Operating Temperature
-40 To 130 degrees F
Power Consumption
3 W
Standard
CCSAus Certified
Switch Type
SPST
Type
Mechanical
Voltage
120 Volt

Manufacturer Information

Brand
NA

General Product Info

12-Digit UPC
078275000063
Color
Gray
GTiN
00078275000063
Product UPC
07827500006

Dimensions

Depth
3-5/8 Inch
Height
10-1/8 Inch
Warranty Length
1 yr
Width
6.5 in

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - Lead
Country of Origin
Mexico
Features
  • Highest motor load ratings in the industry
  • 12 ON/OFF operations per day
  • One ON and one OFF tripper included
  • Available with pool heater protection
  • Teeter-type terminals for multiple load connections
  • NA
