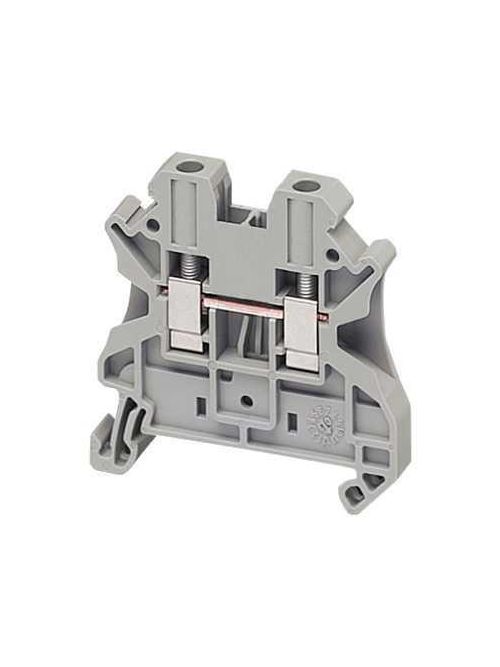

Product image for Square D NSYTRV26T 2 mm 6-Point Gray 26 to 10 AWG Solid/Stranded Copper Screw Terminal Block
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Square D NSYTRV26T 2 mm 6-Point Gray 26 to 10 AWG Solid/Stranded Copper Screw Terminal Block

Manufacturer: Square-D / Schneider | Catalog # NSYTRV26T | Cooper Electric Part # 951832
$10.99/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 2.5 mm. nominal cross section. The rated operational voltage is 500V conforming to EN/IEC 60947-7-1. The rated current is 20A conforming to EN/IEC 60947-7-1. It has grey surface treatment. Mounting by clip-on and sideways connection by three-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 .C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (CSA, cURus, EAC). It is compliant with Green Premium (RoHS/REACH).

Technical Information

Amperage
20 Amp
Applications
LINERGY,SPACIAL ENCLOSURES,CONNECTION ACCESSORY,TERMINAL BLOCK
Conductor Size
0.00 in (2.5 mm)
Dielectric Strength
1000 V
Line Rated Current
20-20 A
Material
Chromium-nickel Steel,Copper Alloy,Polyamide
Mounting Type
Clip-On
Net Weight
25.1 g
Number of Terminations
2
Size
3.05 in
Strip Length
9 mm
TC Connection
1 X SCREW TERMINAL UPSTREAM M3)-1 X SCREW TERMINAL DOWNSTREAM M3)
Tool Type
Connection screwdriver;Disconnection screwdriver
Type
Spacial enclosures;Terminal block;Passthrough
Voltage
500 Volt
Wire Size
0.00 in (2.5 mm)

Manufacturer Information

Brand
Schneider Electric
Sub Brand
TRV;Linergy

General Product Info

12-Digit UPC
606480531883
Color
Gray
GTiN
03606480531880
Product UPC
78590194342
Weight
25.1 g

Dimensions

Height
77.5 mm
Length
90 mm
Warranty Length
18 mth
Width
5.2 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,CURus,EAC
Country of Origin
Poland
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • NSYTRAAB35
  • NSYTRAB510
  • NSYTRAABV35
  • NSYTRAB520
  • NSYTRAB530
  • NSYTRACE26
  • NSYTRAB540
  • NSYTRAL22
  • NSYTRAB550
  • NSYTRAL23
  • NSYTRAL24
  • NSYTRAL25
  • NSYTRAB580
  • NSYTRAL210
  • NSYTRAB590
  • NSYTRAL220
  • NSYTRAATM1
  • NSYTRAATP1
  • NSYTRAB5L1N
  • NSYTRAFT
  • NSYTRABPV5
  • NSYTRACS2
  • NSYTRASB4
  • NSYSDR200BD
  • NSYTRABCV23
