ABB HUB6-G PVC CTD ZINC HUB CONN 6I

Manufacturer: Ocal / Thomas & Betts | Catalog # HUB6-G | Cooper Electric Part # 951755
$1,181.15/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure
PVC Coated Zinc Hub Connector with Thermoplastic Insulated Throat, Pipe Size 6 Inch/155 Metric, Overall Diameter 7.69 Inch/195.33 Millimeters, Maximum Panel Thickness 0.31 Inch/7.87 Millimeters, Throat Diameter 6.00 Inch/152.40 Millimeters, Nitrile Rubber (Buna-N) Sealing Ring, Dark Gray

Technical Information

Applications
To Positively Bond Conduit to Box or Enclosure
Material
PVC
Size
6 in
Standard
CSA
Temperature Rating
105 C
Trade Size
6 Inch
Type
Hub Connector

Manufacturer Information

Brand
Ocal Conduit

General Product Info

12-Digit UPC
704508388980
Color
Gray
Finish
PVC Coated
GTiN
00704508388980
Product UPC
70450838898
Features
  • Innovative sealing ring and groove.
  • Insulated throat and sharper and deeper teeth.
  • Hexagonal body and locknut design.
  • Coated with a nominal .002 in. (2 mil) blue urethane on the interior, before PVC Coating is applied.
  • Pressure sealing sleeves to protect the connection.
  • A minimum .040 in. (40 mil) PVC Coating is bonded to the exterior.
Notes

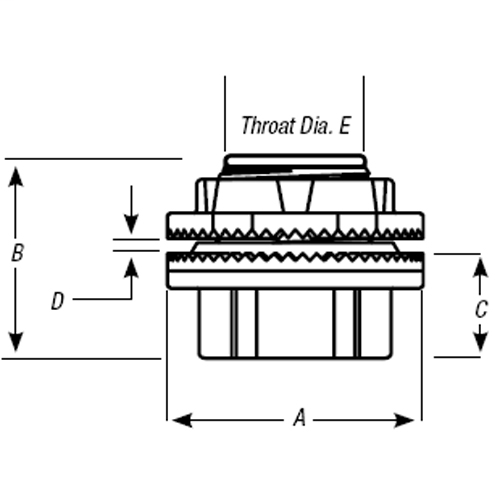

  • Dimensional values are of uncoated fittings.
  • Standard color is dark gray. Also available in white and light blue. Custom colors are also available upon request. Please contact Technical Services, 888-862-3289.
