ABB HUB5-G PVC CTD ZINC HUB CONN 5I

Manufacturer: Ocal / Thomas & Betts | Catalog # HUB5-G | Cooper Electric Part # 951754
$994.44/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure

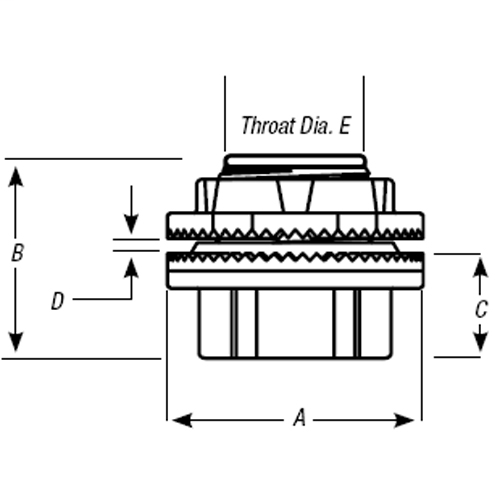

PVC Coated Zinc Hub Connector with Thermoplastic Insulated Throat, Pipe Size 5 Inch/129 Metric, Overall Diameter 6.88 Inch/174.75 Millimeters, Maximum Panel Thickness 0.25 Inch/6.35 Millimeters, Throat Diameter 4.94 Inch/125.48 Millimeters, Nitrile Rubber (Buna-N) Sealing Ring, Dark Gray

Technical Information

Applications
Positively Bonds Conduit to Box or Enclosure
Material
PVC
Size
5 in
Standard
CSA
Temperature Rating
105 degrees C
Trade Size
5 Inch
Type
Double Coated

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Ocal®

General Product Info

12-Digit UPC
704508388928
Color
Gray
Finish
PVC Coated Zinc
GTiN
00704508388928
Product UPC
70450838892
Features
  • Pressure sealing sleeves to protect the connection.
  • Innovative sealing ring and groove.
  • Coated with a nominal .002 in. (2 mil) blue urethane on the interior, before PVC Coating is applied.
  • Hexagonal body and locknut design.
  • Insulated throat and sharper and deeper teeth.
  • A minimum .040 in. (40 mil) PVC Coating is bonded to the exterior.
Notes
  • Dimensional values are of uncoated fittings.
  • Standard color is dark gray. Also available in white and light blue. Custom colors are also available upon request. Please contact Technical Services, 888-862-3289.
