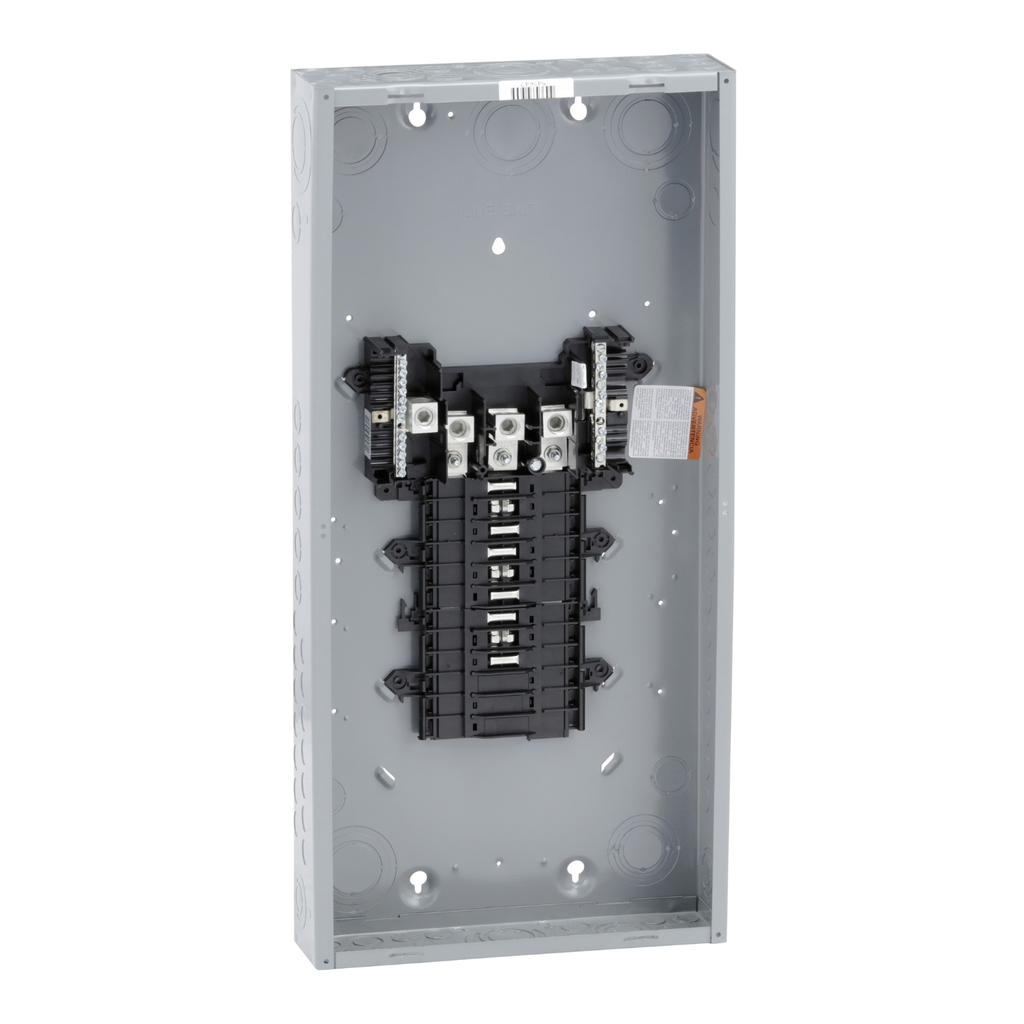

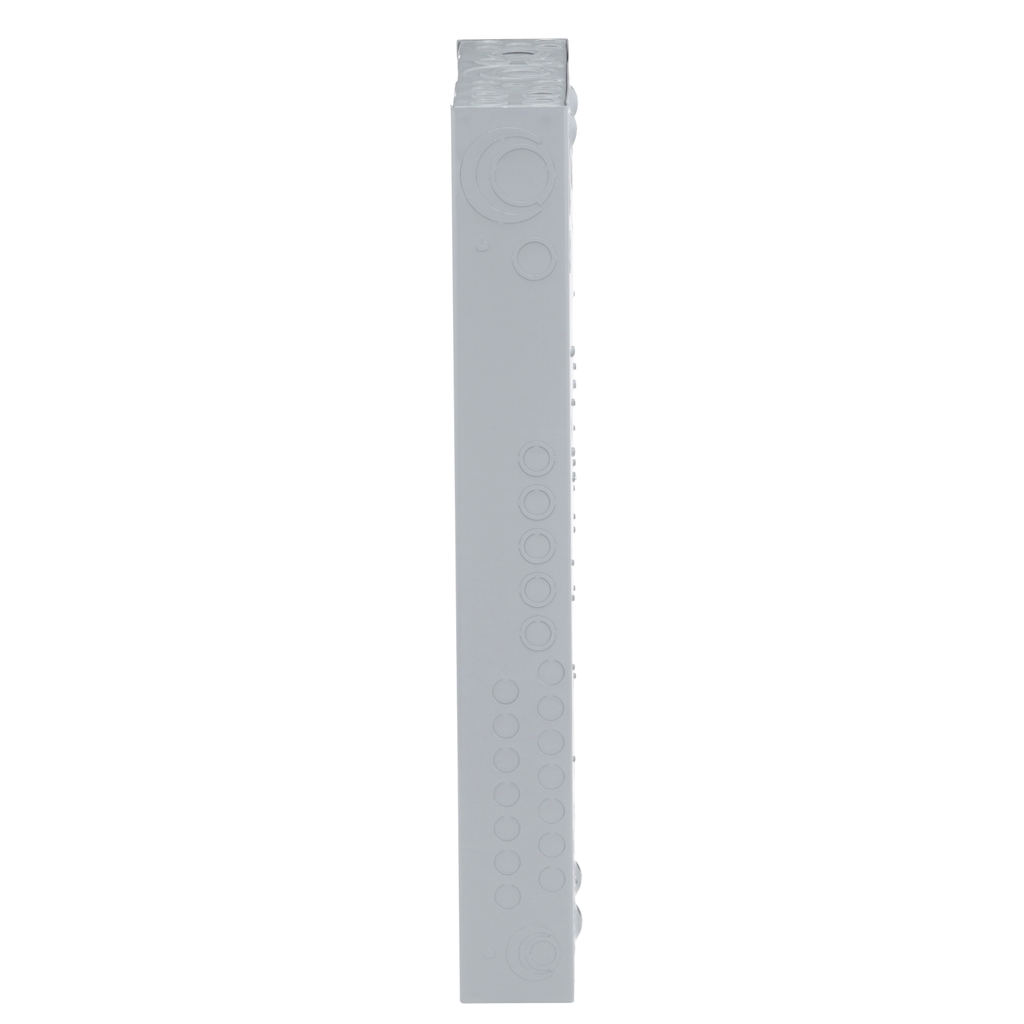

Square D QO318L200G Load Center MLO 200A 120/240V 3Ph 18SP NEMA-1

Manufacturer: Square-D / Schneider | Catalog # QO318L200G | Cooper Electric Part # 94924
$443.00/ea
ea
Log in or register to view your price, purchase history, and more!
Type 1 Indoor Type 3R Rainproof
Single Three
Main Breaker Main Lug
0

Not Available for Pickup at Ocean Closes 5:00pm ET
2 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Product Brochure
QO Load Centers offer premium features by allowing QO breakers, ground arc fault interrupters arc fault interrupters and surge arresters to be installed inside QO Load Centers enable the use of a full complement of accessories such as ground bars which are included here. Systems can be single or three phase and have indoor and outdoor versions. Indoor enclosures are designed to rotate 180 degrees to accommodate top or bottom service entrance feed which saves expensive service cable. QO Load Centers feature plated copper bus, providing superior performance and durability. This QO Load Center contains a main lug and is rated at 200 A and 3 phase. This system provides 12 spaces in a NEMA 1 enclosure.

Technical Information

Amperage
200 Amp
Applications
DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE.
Cable Size
AWG 6...250 KCMIL ALUMINIUM/COPPER
Conductor Size
6 AWG-250 kcmil
Cover Type
Order Separately
Current
200 Amp
Enclosure
1
Enclosure Material
Steel
Interrupt Rating
65 kAIC
Line Rated Current
200 A
Material
Tin Plated Copper: Busbar
NEMA Size
1
Number of Circuits
18
Number of Phases
3,4 Phase
Number of Spaces
18
Operating Temperature
23 degrees F (-5 degrees C) || 104 degrees F (40 degrees C)
Short Circuit Current
65 kA
Short Circuit Current Ratng
65 kA
Surface Finish
Baked Enamel Gray
Type
Load Center
Voltage
120 Volt
Wire Size
AWG 6...250 kcmil aluminium/copper

Manufacturer Information

Brand
Square D
Sub Brand
QO

General Product Info

12-Digit UPC
785901295440
Finish
Baked Enamel
GTiN
00785901295440
Product UPC
78590129544

Dimensions

Height
758 mm
Warranty Length
18 mth
Width
362 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • QO120
  • QO2175SB
  • QOC30UF
  • QO230
  • QO250PSPD
  • QOC30US
  • HEPD25
  • QO115
  • QOC30UC
  • SDSA3650
  • HEPD50
  • QO240
  • QOC30UFW
  • HEPD80
  • QO250
  • S106
  • HEPD25MKF
  • QGL32200
  • HEPD58MKF
