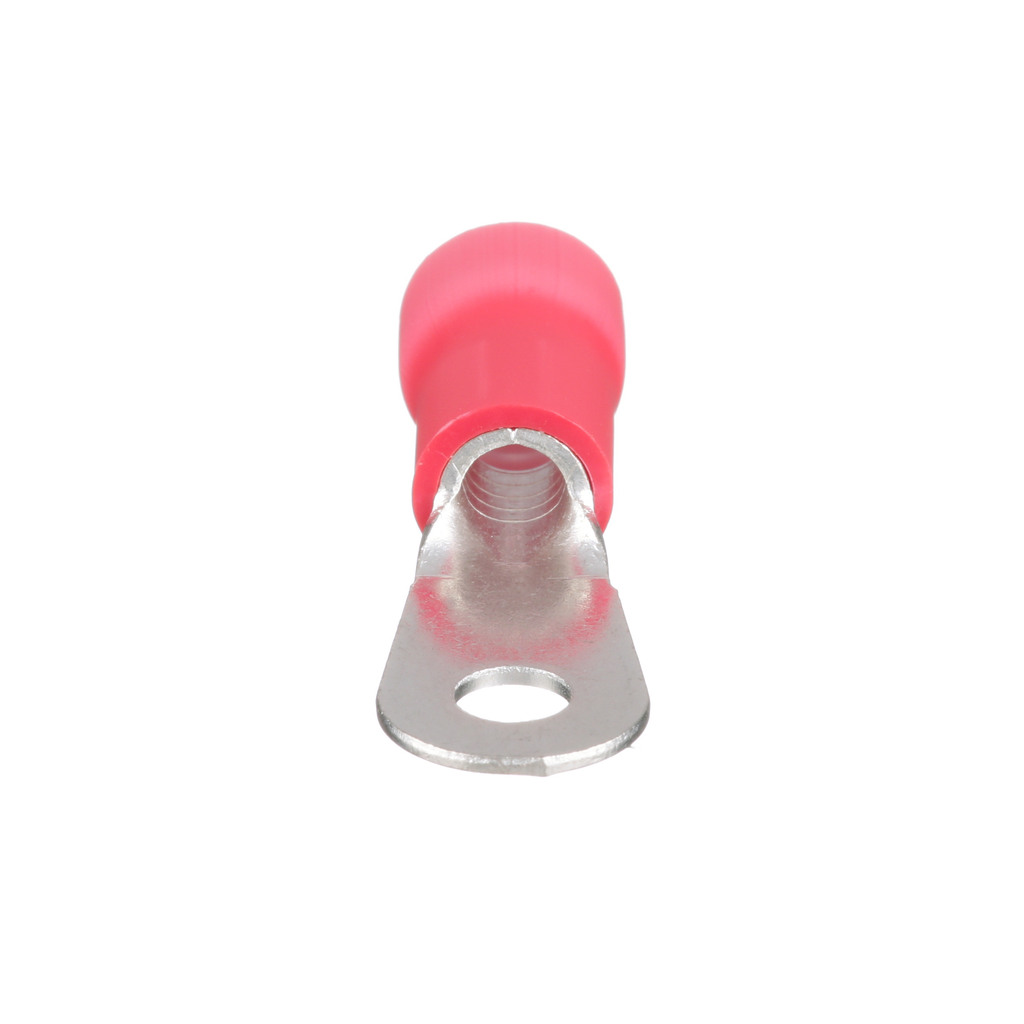

Image thumbnail 1
Image thumbnail 2

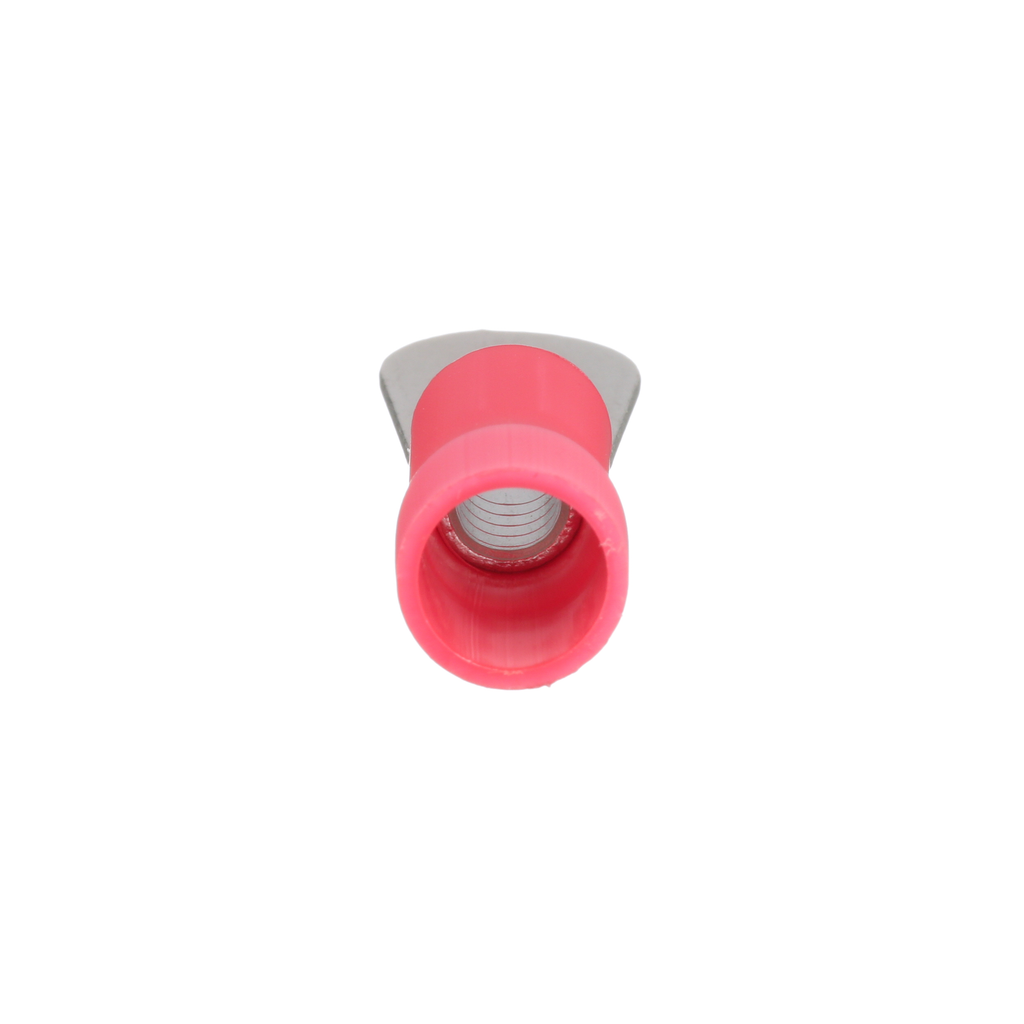

Image thumbnail 3
Email

Panduit PV8-10R-TY Large Wire Vinyl Insulated Ring Terminal

Manufacturer: Panduit Corp | Catalog # PV8-10R-TY | Cooper Electric Part # 948784
$1,603.87/m (1000 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet Product Catalog Page Engineering Drawing
The PV8-10R-TY Pan-Term® Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.

Technical Information

Barrel Length
0.65 in
Barrel Type
Funnel
Color Coding
Red
Conductor Size
8 AWG
Enclosure
Ring shape
Material
Copper
Max Operating Temperature
105 degrees C
Size
#10
TC Connection
Funnel Entry
Temperature Rating
221 F
Tongue Thickness
0.04 in
Tongue Width
0.47 in
Type
Ring Terminal
Voltage
600 Volt
Wire Size
8 AWG

Packaging

Pkg Qty
200

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983421176
Color
Red
Finish
Tin Plated
GTiN
00074983421176
Product UPC
07498342117

Dimensions

Overall Length
1.53 in
Width
0.47 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico
Standards and Certifications
  • Standards Met: cULus Listed 587H E52164, CSA Certified LR31212
