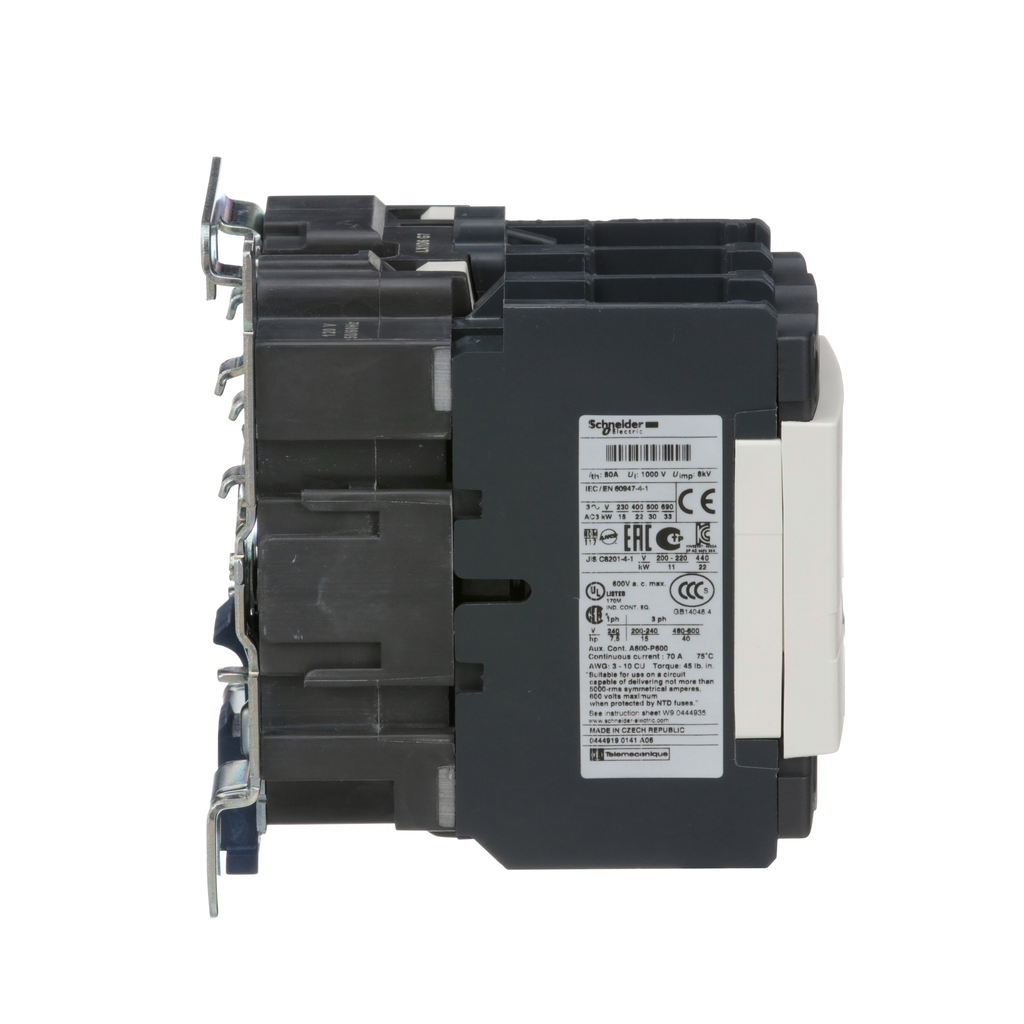

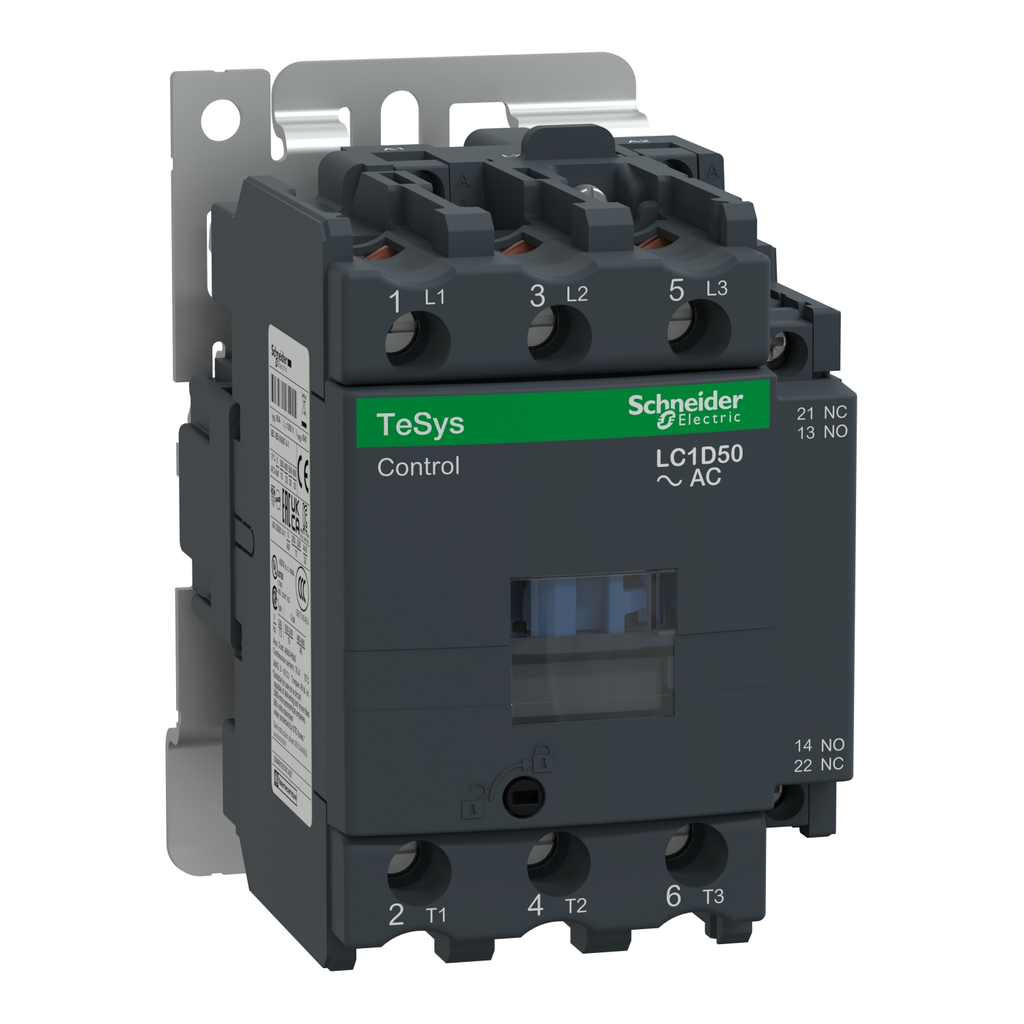

Product image for Square D LC1D50G7 600 VAC 50 Amp 3-Pole 1NO 1NC Screw Terminal Full Voltage Non-Reversing IEC Contactor
Image thumbnail 0
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Square D LC1D50G7 600 VAC 50 Amp 3-Pole 1NO 1NC Screw Terminal Full Voltage Non-Reversing IEC Contactor

Manufacturer: Square-D / Schneider | Catalog # LC1D50G7 | Cooper Electric Part # 94785
$384.91 /ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Closes 5:00pm ET
3 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 50A inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactors have both Horsepower and Kw motor rating for international acceptance. Contactor is rated for 15HP at 200 to 208VAC, 15HP at 240VAC, 40HP at 480VAC and 40HP at 600VAC three phase. Contactor is also rated for 3HP at 115VAC and 7.5HP at 240VAC single phase. When used with a 480VAC up to 110A circuit breaker, this contactor can have a SCCR up to 100kA. When used with up to a 600VAC 110A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 120 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 4.80 inches tall, 2.17 inches wide and 4.72 inches deep. It weighs 1.87 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.

Technical Information

Applications
Motor control;resistive load
Coil Voltage
120@50/60Hz V
Contact Configuration
1 NO + 1 NC,3 NO
Contact Rating
10 A 60 AC CONTROL CIRCUIT-80 A 60 AC POWER CIRCUIT
Impedance
1.5 MOhm - Ith 80 A 50 Hz For Power Circuit
Net Weight
1.4 kg
Operating Cycles
3600 cyc/h 60 C
Operating Temperature
-40-70 Adegrees C AT UC,-5-60 Adegrees C
Size
119 MM,122 MM,55 MM
Standard
CSA C22.2 No 14,EN 60947-4-1,EN 60947-5-1,IEC 60947-4-1,IEC 60947-5-1,UL 508
Storage Temperature
-60-80 degrees C
TC Connection
Control circuit screw clamp terminal 1 x 1-4 mmsolid without cable end;control circuit screw clamp terminal 2 x 1-4 mmsolid without cable end;control circuit screw clamp terminal 1 x 1-4 mmflexible with cable end;control circuit screw clamp terminal 2 x 1-2.5 mmflexible without cable end;power circuit screw terminals;power circuit screw clamp terminal 2 x 1-25 mmsolid without cable end;control circuit screw clamp terminal 2 x 1-4 mmflexible with cable end;power circuit screw clamp terminal 1 x 1-35 mmflexible without cable end;power circuit screw clamp terminal 1 x 1-35 mmsolid without cable end;power circuit screw clamp terminal 2 x 1-25 mmflexible with cable end;power circuit screw clamp terminal 2 x 1-35 mmflexible without cable end
Type
Contactor
Voltage
690 Volt
Wattage
3.7 Watt AC-3 - 9.6 Watt AC-1

Manufacturer Information

Brand
Schneider Electric
Sub Brand
LC1D

General Product Info

12-Digit UPC
338911042148
GTiN
03389110421453
Product UPC
78590142145
Weight
1.4 kg

Dimensions

Depth
4.69 in
Height
4.8 in
Warranty Length
18 mth
Width
2.17 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Certifications
BV,CCC,CSA,DNV,GL,GOST,LROS (pending),RINA,UKCA,UL
Country of Origin
Czechia
Insulation Resistance
  • > 10 MOhm for control circuit
Heat Dissipation
  • 4-5 W at 50/60 Hz for control circuit
Inrush Power In VA
  • 140-140 VA cos phi 0.75 (at 20 °C)
  • 160-160 VA cos phi 0.75 (at 20 °C)
Connections Terminals
  • control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end
  • control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: so
IE Rated Operational Current
  • 80 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
  • 80 A (at <60 °C) at <= 440 V AC AC
ITH Conventional Free Air Thermal Current
  • 10 A (at 60 °C) for control circuit
  • 80 A (at 60 °C) for power circuit
CAD
  • https://download.schneider-electric.com/files?p_Doc_Ref=E0200401-01&p_File_name=E0200401-01.dwg
  • https://download.schneider-electric.com/files?p_Doc_Ref=E0200401-01&p_File_name=E0200401-01.dxf
  • https://download.schneider-electric.com/files?p_Doc_Ref=LC1D
IP Degree Of Protection
  • IP2X IEC 60529
  • IP2X VDE 0106
Climatic Withstand
  • IACS E10 exposure to damp heat
Power Dissipation Per Pole
  • 3.7 W AC-3
  • 9.6 W AC-1
  • 3.7 W AC-3e
Maximum Operating Rate
  • 3600 cyc/h at 60 °C
Prop 65
  • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Carbon Footprint Of The Installation Phase A5
  • 0 kg CO2 eq.
  • 0.03709489667225843
Non Overlap Time
  • 1.5 ms on de-energisation between NC and NO contacts
  • 1.5 ms on energisation between NC and NO contacts
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 2.4684457274736755
  • 2 kg CO2 eq.
Standards
  • UL 60947-4-1
  • EN 60947-4-1
  • EN 60947-5-1
  • IEC 60947-5-1
  • CSA C22.2 No 14
  • IEC 60947-4-1
Operating Time
  • 12...26 ms closing
  • 4...19 ms opening
Control Circuit Type
  • AC 50/60 Hz
Minimum Switching Voltage
  • 17 V for control circuit
UC Control Circuit Voltage
  • 120 V AC 50/60 Hz
Related Products
  • with
  • LADN22
  • LADN11
  • LADN20
  • LAD8N11
  • LADT2
  • LADN40
  • LADN31
  • LADN02
  • LADT0
  • LAD8N20
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 8 kg CO2 eq.
  • 8.200493000872394
UI Rated Insulation Voltage
  • control circuit 600 V CSA
  • control circuit 600 V UL
  • power circuit 600 V CSA
  • power circuit 600 V UL
  • power
Average Impedance
  • 1.5 mOhm - Ith 80 A 50 Hz for power circuit
Maximum Horse Power Rating
  • 3 hp at 115 V AC 60 Hz for 1 phase motors conforming to CSA
  • 3 hp at 115 V
Market Segmentation
  • Commercial
  • Industrial
Persona Type Names
  • End User
  • Contractor
  • Original Equipment Manufacturer
  • OEM - Control Panelbuilder
  • Panel Builder
  • System Integrator
Fire Resistance
  • 850 °C IEC 60695-2-1
Contactor Application
  • motor control
  • resistive load
Motor Power KW
  • 22 kW at 380...400 V AC 50/60 Hz (AC-3)
  • 25 kW at 415 V AC 50/60 Hz (AC-3)
  • 25 kW at 415 V AC 50
Flame Retardance
  • V1 conforming to UL 94
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 61 kg CO2 eq.
  • 61.259758021595786
Persona Type Ids
  • EU
  • LC
  • OM
  • OM8
  • PB
  • SI
Auxiliaries
  • LADN22
  • LADN11
  • LADN20
  • LAD8N11
  • LADT2
  • LADN40
  • LADN31
  • LADN02
  • LADT0
  • LAD8N20
Safety Reliability Level
  • B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1
  • B10d = 1369863 cycles contactor with nominal load EN/ISO 13
Carbon Footprint Of The Distribution Phase A4
  • 1.7614752578811517
  • 2 kg CO2 eq.
Tightening Torque
  • control circuit 1.2 N.m screw clamp terminal flat Ø 6 mm
  • control circuit 1.2 N.m sc
Mechanical Robustness
  • shocks contactor opened 10 Gn for 11 ms)
  • shocks contactor closed 15 Gn for 11 ms)
  • vibratio
Minimum Switching Current
  • 5 mA for control circuit
Operating Altitude
  • 9842.52 ft (3000 m) without derating
Control Circuit Voltage Limits
  • 0.3...0.6 Uc (60-60 °C):drop-out AC 50/60 Hz
  • 0.8...1.1 Uc (60-60 °C):opera
Market Segmentation Id
  • COMMERCIAL
  • INDUSTRIAL
IRMS Rated Making Capacity
  • 140 A AC for control circuit conforming to IEC 60947-5-1
  • 900 A at 440 V for power c
Associated Fuse Rating
  • 10 A gG for control circuit conforming to IEC 60947-5-1
  • 100 A gG at <= 690 V coordinat
Hold In Power Consumption In VA
  • 13-13 VA 50 Hz cos phi 0.3 (at 20 °C)
  • 15-15 VA 60 Hz cos phi 0.3 (at 20 °C)
  • 15-15 VA 60 Hz cos phi 0.3
UE Rated Operational Voltage
  • power circuit <= 690 V AC 25...400 Hz
Permissible Ambient Air Temperature Around The Device
  • -5-60 °C
  • -40-70 °C at Uc
Rated Breaking Capacity
  • 900 A at 440 V for power circuit conforming to IEC 60947
UIMP Rated Impulse Withstand Voltage
  • 6 kV IEC 60947
