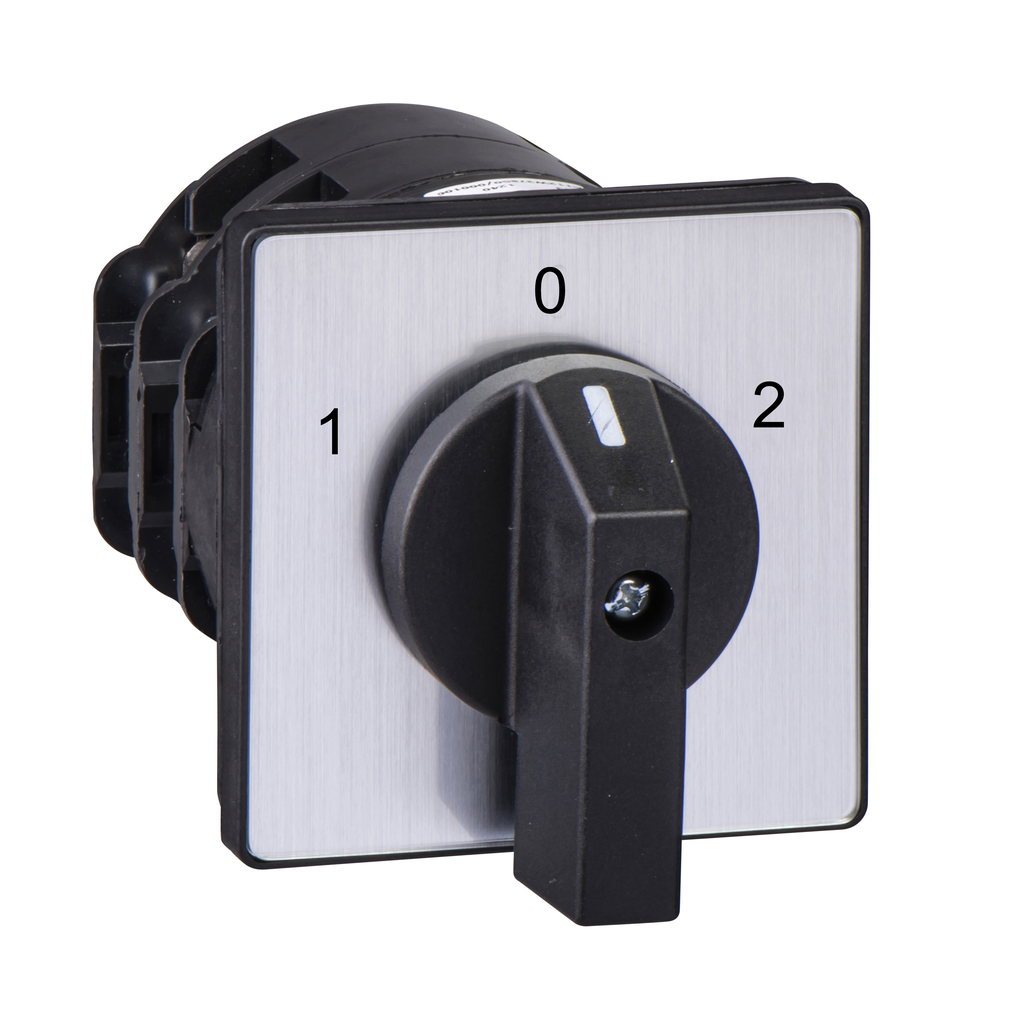

Product image for SQUARED K115F003UP Cam changeover s
Email

SQUARED K115F003UP Cam changeover s

Manufacturer: Square-D / Schneider | Catalog # K115F003UP | Cooper Electric Part # 947226
$833.49/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This metal head cam switch is designed to meet most industrial and process control application thanks to a compact size and has several selection functions It has a 60 or 300 degree between its switching positions It works at a rated conventional free air thermal current of 115 A

Technical Information

Action
Slow-break
Actuator
BLACK HANDLE
Amperage
100 Amp AC-21A EN/IEC 60947-3
Net Weight
0.645 kg
Number of Poles
3 Pole
Operating Temperature
-25-55 degrees C
Short Circuit Current
15000 A
Size
154 MM,88 MM,88 MM
Standard
IEC 60947-3
Storage Temperature
-40-70 degrees C
TC Connection
CAPTIVE SCREW CLAMP TERMINALS FLEXIBLE 1 X 25 MMA-CAPTIVE SCREW CLAMP TERMINALS SOLID 1 X 35 MMA
Type
Changeover switch;Complete cam switch
Wattage
13000 Watt AC-3 380/440 Volt 1 Phase EN/IEC 60947 - 3-15000 Watt AC-23 Amps 220/240 Volt 1 Phase EN/IEC 60947 - 3-15000 Watt AC-3 220/240 Volt 3 Phase EN/IEC 60947 - 3-22000 Watt AC-23 Amps 380/440 Volt 1 Phase EN/IEC 60947 - 3-30000 Watt AC-23 Amps 220/240 Volt 3 Phase EN/IEC 60947 - 3-30000 Watt AC-3 380/440 Volt 3 Phase EN/IEC 60947 - 3-30000 Watt AC-3 660/690 Volt 3 Phase EN/IEC 60947 - 3-3700 Watt AC-3 110 Volt 1 Phase EN/IEC 60947 - 3-45000 Watt AC-23 Amps 380/440 Volt 3 Phase EN/IEC 60947 - 3-5500 Watt AC-23 Amps 110 Volt 1 Phase EN/IEC 60947 - 3-65000 Watt AC-23 Amps 660/690 Volt 3 Phase EN/IEC 60947 - 3-7500 Watt AC-3 220/240 Volt 1 Phase EN/IEC 60947 - 3

Manufacturer Information

Brand
Schneider Electric
Sub Brand
K115

General Product Info

12-Digit UPC
785901636175
GTiN
03389110083385
Product UPC
78590163617
Weight
1.42 lb

Dimensions

Height
88 mm
Warranty Length
18 mth
Width
88 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CULus 120 V 5 Hp 1 Phase,CULus 240 V 10 Hp 1 Phase,CULus 240 V 20 Hp 3 Phase,CULus 480 V 30 Hp 3 Phase
Country of Origin
Austria
