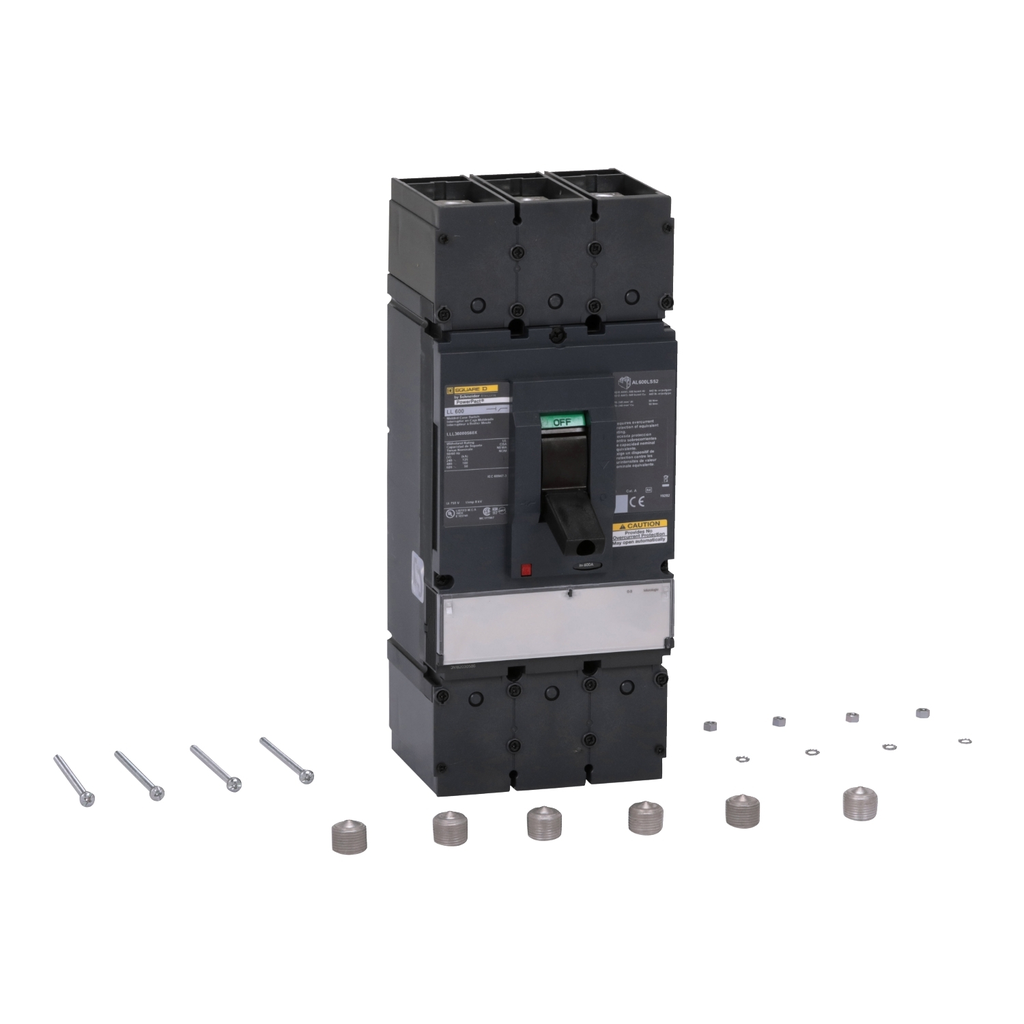

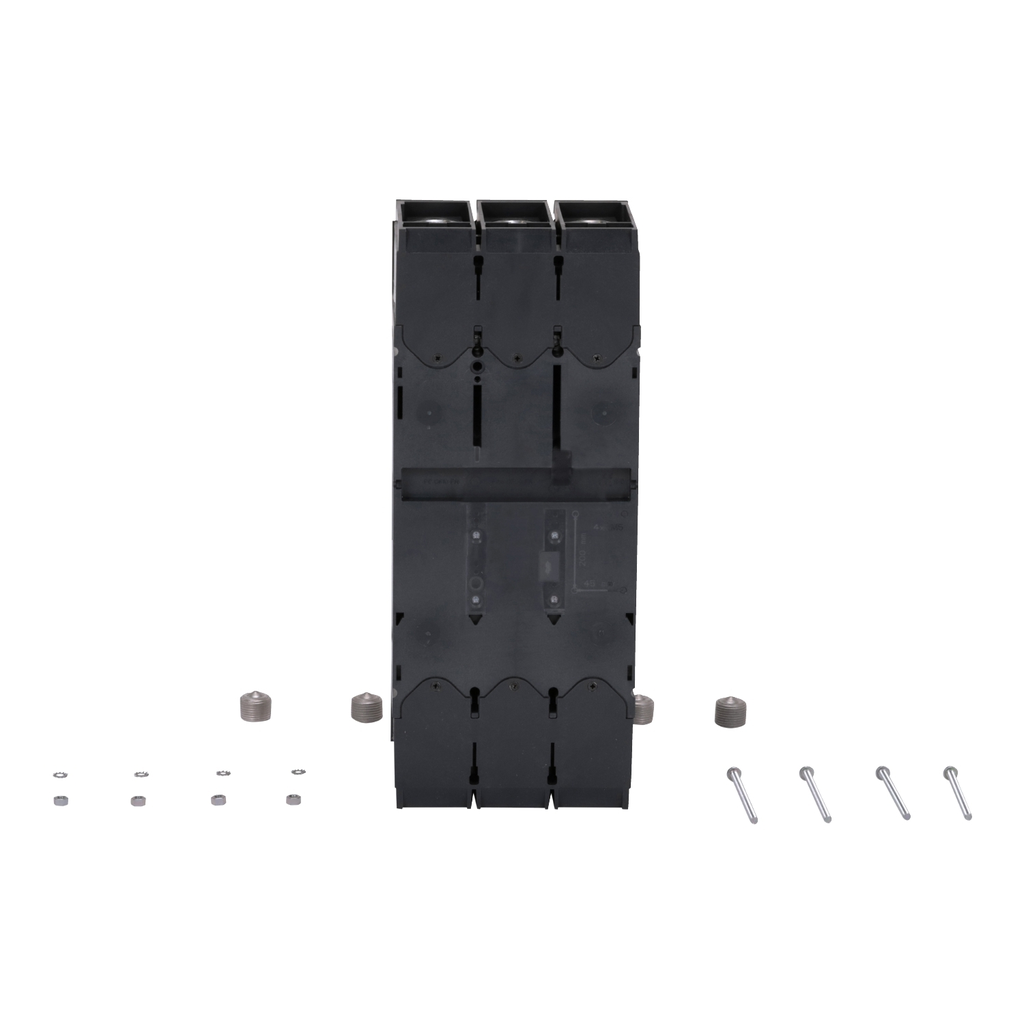

Square D LLL36000S60X 3-Pole 600 Amp 600 Volt Automatic Molded Case Switch

Manufacturer: Square-D / Schneider | Catalog # LLL36000S60X | Cooper Electric Part # 946716
$5,465.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Product Brochure
PowerPacT L-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction, use the same accessories, and offer the same connection possibilities as the L-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. For an overload or a short circuit, it must be protected by an upstream device. PowerPacT L-Frame switches are available in unit mount, I-Line, plug-in, or drawout versions. This switch has lugs on both the line and load sides. This PowerPacT L, 600A, 3 pole, automatic switch has a short circuit withstand current rating of 50kA at 600VAC. PowerPacT L automatic switches comply to UL and CSA standards.

Technical Information

Amperage
600 Amp
Applications
USED TO OPEN AND CLOSE A CIRCUIT UNDER NORMAL OPERATING CONDITIONS
Circuit Breaker Type
L-Frame
Frame
L- FRAME
Interrupt Rating
50 kAIC
Line Rated Current
600 A
Mounting Type
Unit Mount
Number of Poles
3 Pole
TC Connection
LINE/LOAD LUGS
Trip Point
6600-6600 A
Trip Range
4800 A
Trip Type
MAGNETIC
Type
Automatic switch
Voltage
600 Volt

Manufacturer Information

Brand
Square D
Sub Brand
POWERPACT

General Product Info

12-Digit UPC
785901123743
GTiN
00785901123743
Product UPC
78590112374

Dimensions

Depth
6.61 Inch
Height
13.38 Inch
Length
6.61 Inch
Warranty Length
18 mth
Width
5.51 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,IEC,UL Listed
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Carbon Footprint Of The Installation Phase A5
  • 2.15354297118668
  • 2 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 12 kg CO2 eq.
  • 11.697597315639042
Electrical Connection
  • lugs, line
  • lugs, load
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 50 kg CO2 eq.
  • 49.76154065146522
Accessories
  • PDC5DG20L3
  • S29450
  • S29386
  • S29390
  • S29329
  • AL600LS52K3
  • AL600LF52K3
  • CU600LS52K3
  • PDC12DG4L3
  • S29370
Market Segmentation
  • Commercial
  • Industrial
Persona Type Names
  • End User
  • Contractor
  • Original Equipment Manufacturer
  • OEM - Control Panelbuilder
  • Panel Builder
  • Electrician
  • System Integrator
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 1 103 kg CO2 eq.
  • 1103.4317836714188
Accessory Products
  • PDC5DG20L3
  • S29450
  • S29386
  • S29390
  • S29329
  • AL600LS52K3
  • AL600LF52K3
  • CU600LS52K3
  • PDC12DG4L3
  • S29370
Persona Type Ids
  • EU
  • LC
  • OM
  • OM8
  • PB
  • SC
  • SI
Short Circuit Withstand
  • 125 kA 240 V UL 489
  • 100 kA 480 V UL 489
  • 50 kA 600 V UL 489
Carbon Footprint Of The Distribution Phase A4
  • 2.232429153421412
  • 2 kg CO2 eq.
Tightening Torque
  • 50-50 N.m 70-240 mm² (AWG 2/0...500 kcmil)
AWG Gauge
  • x AWG 2/0...500 kcmil ( aluminium/copper )
Market Segmentation Id
  • COMMERCIAL
  • INDUSTRIAL
UE Rated Operational Voltage
  • 600 V AC
