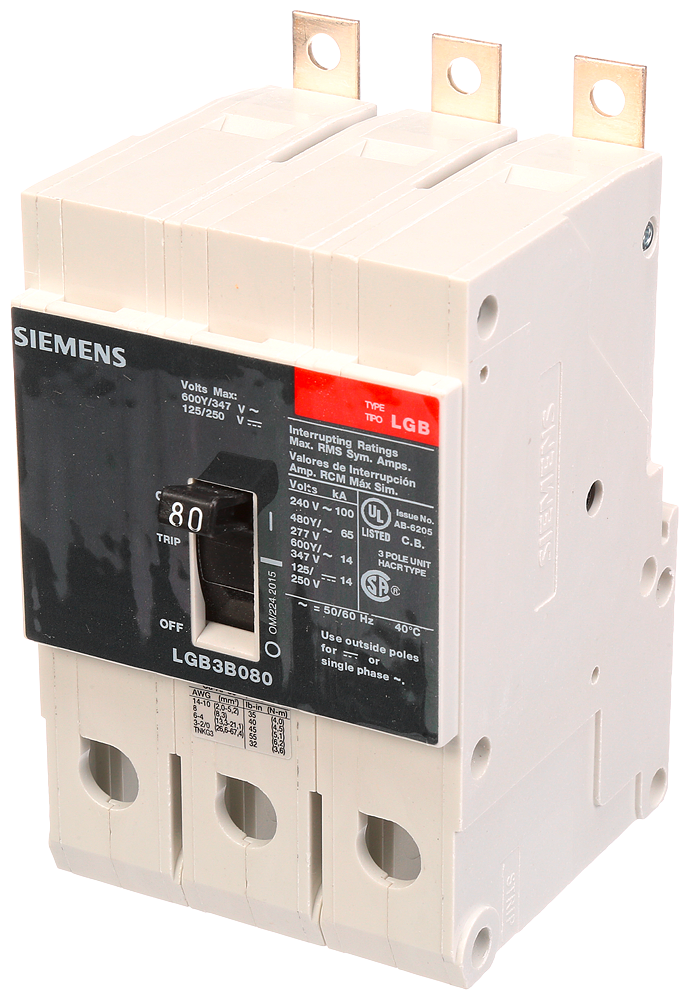

Product image for Siemens LGB3B080B BRKR LGB 80A 3P 480Y
Email

Siemens LGB3B080B BRKR LGB 80A 3P 480Y

Manufacturer: Siemens | Catalog # LGB3B080B | Cooper Electric Part # 946325
$774.47/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
SIEMENS LOW VOLTAGE PANELBOARD MOUNT G FRAME CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP. UL LISTED LGB FRAME WITH VERY HIGH BREAKING CAPACITY. 80A 3-POLE (14KAIC AT 600Y/347V) (65KAIC AT 480Y/277V). SPECIAL FEATURES: MOUNTS ON PANELBOARD, LOAD SIDE LUGS ONLY (TC1GG20) WIRE RANGE: 8 - 1/0 AWS (CU/AL). DIMENSIONS (W x H x D) IN: 3 x 5.4 x 2.8.

Technical Information

Amperage
80 Amp
Applications
INDUSTRIAL
Connection Type
Low Tab Panelboard Mount
Frame
125A
Frequency
50/60 Hz
Interrupt Rating
65 kAIC
Material
MOLDED CASE CIRCUIT BREAKER
Number of Poles
3 Pole
Operating Temperature
40DEGC
Standard
UL 489,CSA-C22.2
TC Connection
LOW TAB PANELBOARD MOUNT
Trip Type
THERMAL MAGNETIC TRIP UNIT
Type
LGB
Voltage
480 Volt

Manufacturer Information

Brand
Siemens

General Product Info

12-Digit UPC
887621220310
GTiN
00887621220310
Product UPC
88762122031
Weight
2.750 lb

Dimensions

Height
4-3/4 Inch
Length
7.6 Inch
Width
4.500 in

Certifications and Compliance

Country of Origin
Mexico
