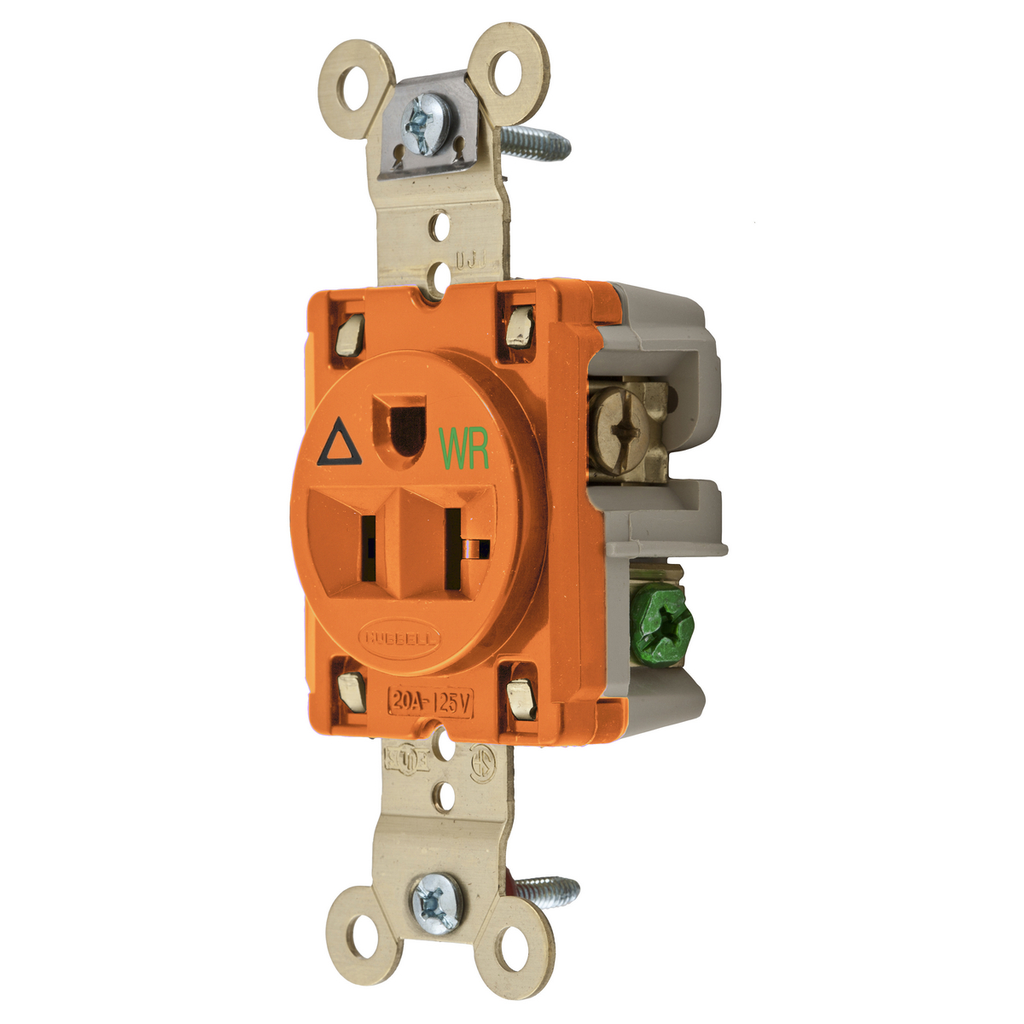

Product image for HWDK IG5361WR WR RCPT, SING, SB, IG
Image thumbnail 0
Image thumbnail 1
Email

HWDK IG5361WR WR RCPT, SING, SB, IG

Manufacturer: Hubbell Wiring Device | Catalog # IG5361WR | Cooper Electric Part # 945562
$104.18/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Weather Resistant Single, Commercial/Industrial Grade, Isolated Ground, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Brown.

Technical Information

Amperage
20 Amp
Applications
Extra Heavy Duty Specification Grade
Base Material
PBT
Conductor Size
12-10 AWG
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Horsepower
1 hp
Material
Thermoplastic
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2-2 Pole
Number of Wires
3,3
Operating Temperature
-40 degrees C
Size

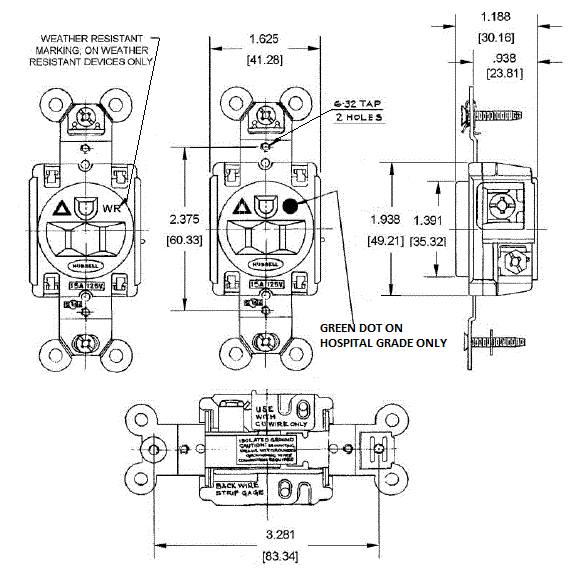

3.28 in x 1.63 in x 1.19 in
Standard
CSA 22.2,Fed. Spec. W-C-604,NEMA® WD-6,No. 42 File 285,UL,UL498 File No. E2186
Style
Finder Groove Face
TC Connection
Back and Side Wired Screw Terminals
Type
Single Receptacle
Voltage
125 Volt
Wattage
2500 Watt
Wire Count
3
Wire Size
12-10 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
783585320489
Color
Orange
Environmental Conditions
Weather Resistant
GTiN
00783585320489
Product Series
Heavy Duty
Product UPC
78358532048
Weight
0.15 lb

Dimensions

Height
1.19 Inch
Length
3.28 Inch
Width
1.63 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Weather-resistance complies with national electrical code requirements
  • Triangle marking on face indicates isolated ground
  • Finder Groove Face
  • Back wired ground terminal allows faster, easier installation
  • Isolated Ground and Weather Resistant
