SQUARED XALD222 Control station, Ha

Manufacturer: Square-D / Schneider | Catalog # XALD222 | Cooper Electric Part # 945133
$53.66/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3

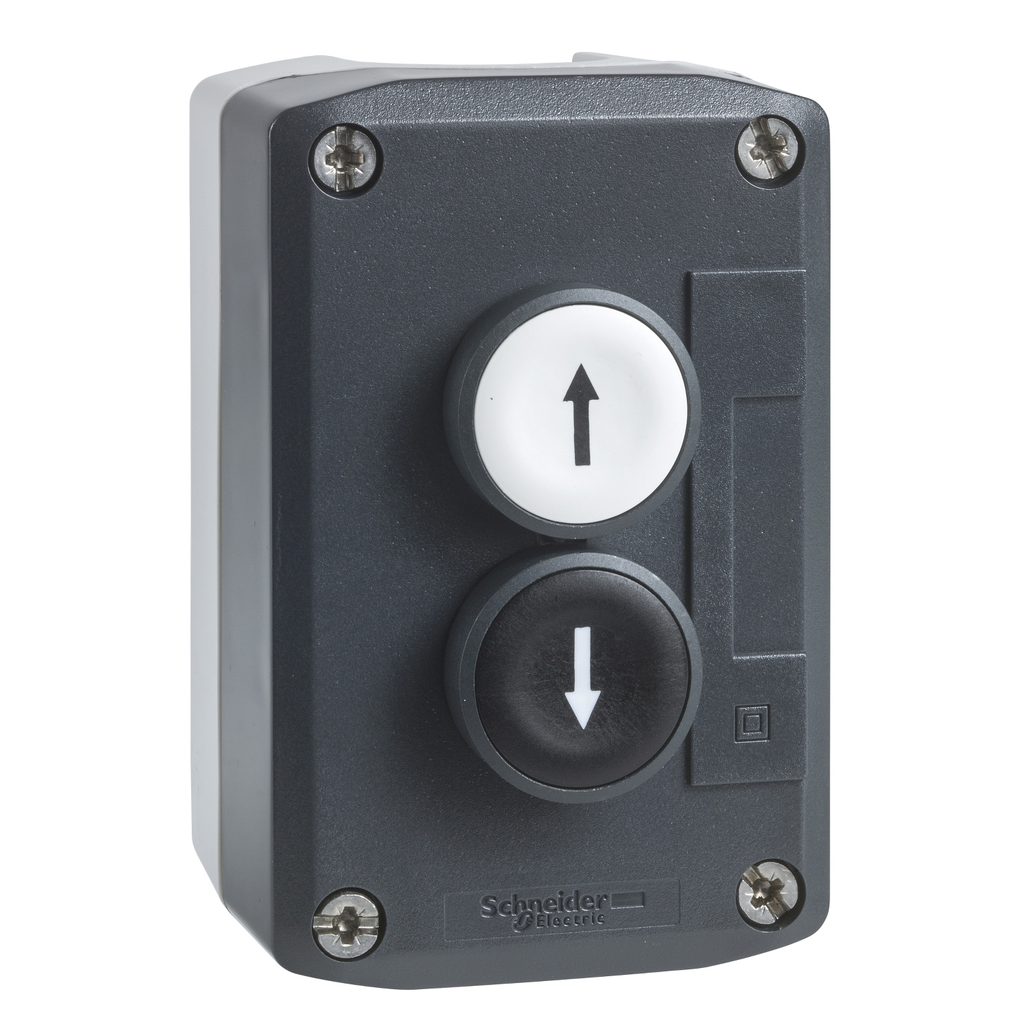

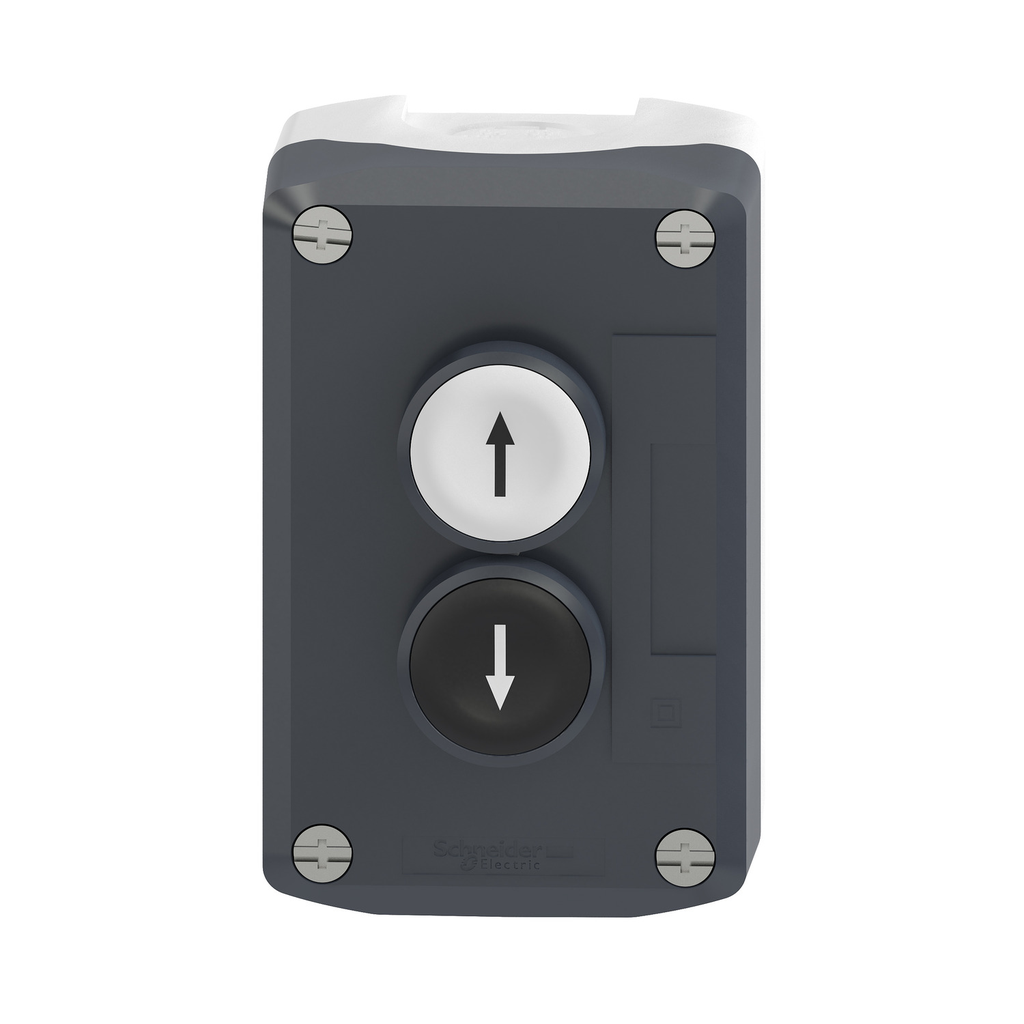

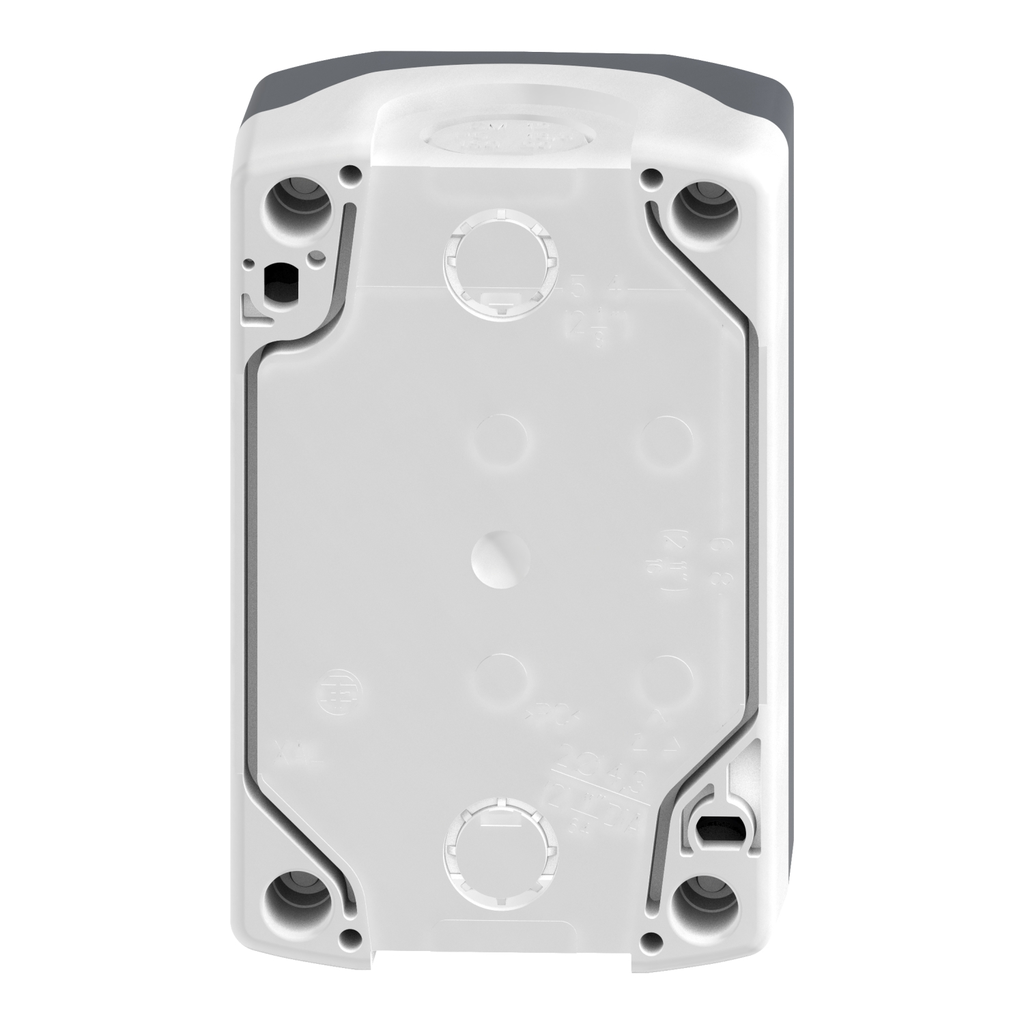

This Harmony XALD dark grey control station is ideal to control simple hoists. This dark grey control station enables machine builders to easily add control and signalling functionality on their machines, with permanent modifications or damage to their machine body. It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents. It is compatible with Harmony XB5 range push buttons, switches and pilot lights. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP69 / IP67 / IP66 / IP69K, making it ideal for operation in harsh environments. It is also resistant to chemicals and offers double insulation.

Technical Information

Action
Slow-break
Actuator
White ''up arrow'' 1 NO - black ''down arrow'' 1 NO;2 flush push-buttons
Amperage
6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1
Applications
For XB5 22 mm control and signalling units
Cable Entry
14-14 mm
Contact Material
Silver Alloy
Enclosure
NEMA 13-NEMA 4X
Material
Polycarbonate
Net Weight
0.233 kg
Operating Force
3.8 N
Operating Temperature
-40-70 Adegrees C
Standard
CSA C22.2 No 14,IEC 60947-1,IEC 60947-5-1,IEC 60947-5-4,IEC 60947-5-5,JIS C8201-1,JIS C8201-5-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA WITH CABLE END EN/IEC 60947-1-SCREW CLAMP TERMINALS, >= 1 X 0.22 MMA WITHOUT CABLE END EN/IEC 60947-1
Type
Complete control station

Manufacturer Information

Brand
Schneider Electric
Sub Brand
XALD

General Product Info

12-Digit UPC
785901618690
GTiN
03389110114164
Product UPC
78590161869
Weight
0.233 kg

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
France
Compatible Products
  • ZBZ28
  • ZBY2101
  • ZB4FBZ014
Cross Sell Products
  • XB5AA31
Spare Part Products
  • ZB5AA335
  • ZB5AA334
  • XALD02H7
