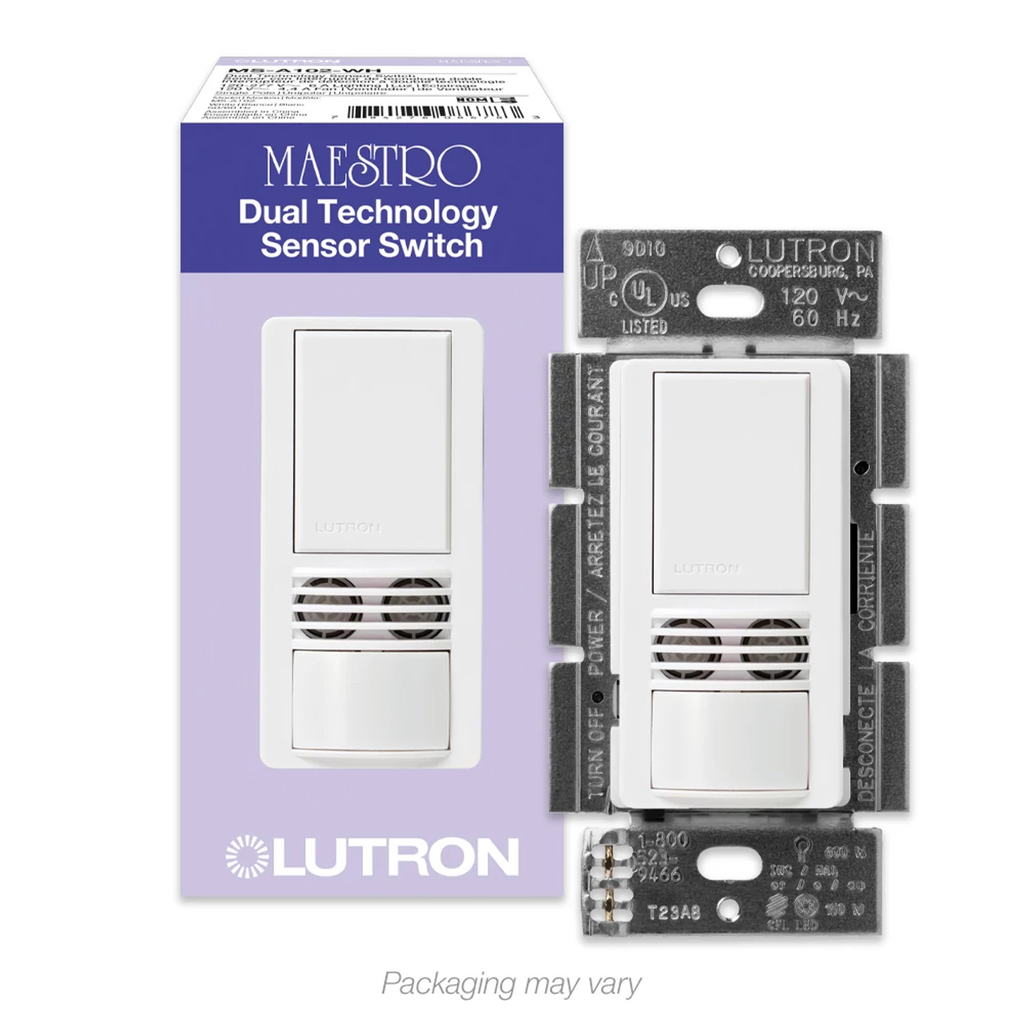

Product image for Lutron MS-A102-WH 120 to 277 VAC 6 Amp 1-Pole White Dual Technology Occupancy Sensor Switch
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Lutron MS-A102-WH 120 to 277 VAC 6 Amp 1-Pole White Dual Technology Occupancy Sensor Switch

Manufacturer: Lutron | Catalog # MS-A102-WH | Cooper Electric Part # 943092
$122.28/ea
ea
Log in or register to view your price, purchase history, and more!
1 available

For Pick Up

at Ocean Opens Monday 7:00am ET
4 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
Product Spec Sheet
Maestro Dual Technology (Dual Tech) occupancy sensor switch, applies exclusive XCT Technology for minor and fine motion detection in white

Technical Information

Amperage
6 Amp
Applications
For Lighting Control
Body Material
Plastic
Enclosure
Plastic
Enclosure Material
Plastic
Indicator
Smart ambient light detection (ALD)/Fixed ambient light detection
Material
Plastic
Mounting Type
Wall, Flush
Number of Poles
1 Pole
Operating Temperature
32 To 104 degrees F
Power Supply
120 V
Response Time
1, 5, 15, 30 min
Sensing Range
900 ft2 (82 m2) major motion coverage/400 ft2 (36 m2) minor motion coverage
Sensor Type
Ultrasonic
Standard
NOM,Title 20/24 Certified
Temperature Rating
0 degrees C to 40 degrees C
Type
Single-Circuit, Indoor
Voltage
120-277 Volt

Manufacturer Information

Brand
Lutron Electronics Company
Sub Brand
Maestro

General Product Info

12-Digit UPC
784276086783
Color
White, Matte
Environmental Conditions
0 To 90% Humidity,Indoor Use Only,Non-condensing
Finish
Gloss
GTiN
00784276086783
Product UPC
78427608678

Certifications and Compliance

Country of Origin
China
Features
  • Includes (1) Lutron Maestro Dual-Tech Motion 6A Sensor Switch; Gloss Finish
  • Single Pole Only; Rated to work with a single circuit up to 6A lighting, 4.4A (1/6HP) fans motors, or 4.4A combined fan/light
  • Ground or Neutral required; 120-277V
  • 180-degree sensor field of view (900 sq ft major motion & 400 sq ft minor motion coverage); tamper resistant lens
  • Lutron Dual Sensing Technology: Ultrasonic and PIR (Passive-Infrared) for major, minor, fine and very fine motion detection
  • Smart Ambient Light Detection (ALD) can be programmed so lights stay off if enough light is present in the room
  • Adaptive zero-cross switching algorithm for extended relay life
  • Easy to read programming buttons directly on sensor
  • Complies with Title 20/24, ASHRAE 90.1, and IECC code requirements such as automatic shutoff
  • Available in 10+ colors; Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates are sold separately)
  • Applies Lutron's exclusive XCT Technology (Dual Tech) to the ultrasonic as well as the passive infrared technology in this sensor to create a product that can detect very fine motion, such as typing
  • Includes all of the great features found in the rest of the Maestro sensor family, including: adaptive relay switching, smart ambient light detection, and simple button presses for changing settings
  • XCT technology for major, minor, fine, and very fine motion detection
  • 180 degree field-of-view
  • Tamper-resistant PIR lens
  • Up to 900 ft2 (81 m2) major motion coverage and 400 ft2 (36 m2) minor motion coverage
  • Two ambient light detect (ALD) options: Learning ALD mode: uses adaptive algorithm
  • Sensor learns user's preferred light level over time
  • Fixed ALD mode: four selectable light level thresholds: Hi, Med, Low, Min
  • Can be set to auto-on/auto-off or manual-on/auto-off per circuit
  • Adjustable timeout for each circuit (1, 5, 15, or 30 minutes)
  • Sensitivity adjustment: PIR (Hi, Med, Min), ultrasonic (Hi, Med, Low, Off)
  • Switches all lighting loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent
  • Switches fan loads at 120 V
  • Does not require neutral wiring.
Standards and Certifications
  • UL
  • NOM
  • TITLE20
  • TITLE24
  • Title 20/24 certified
