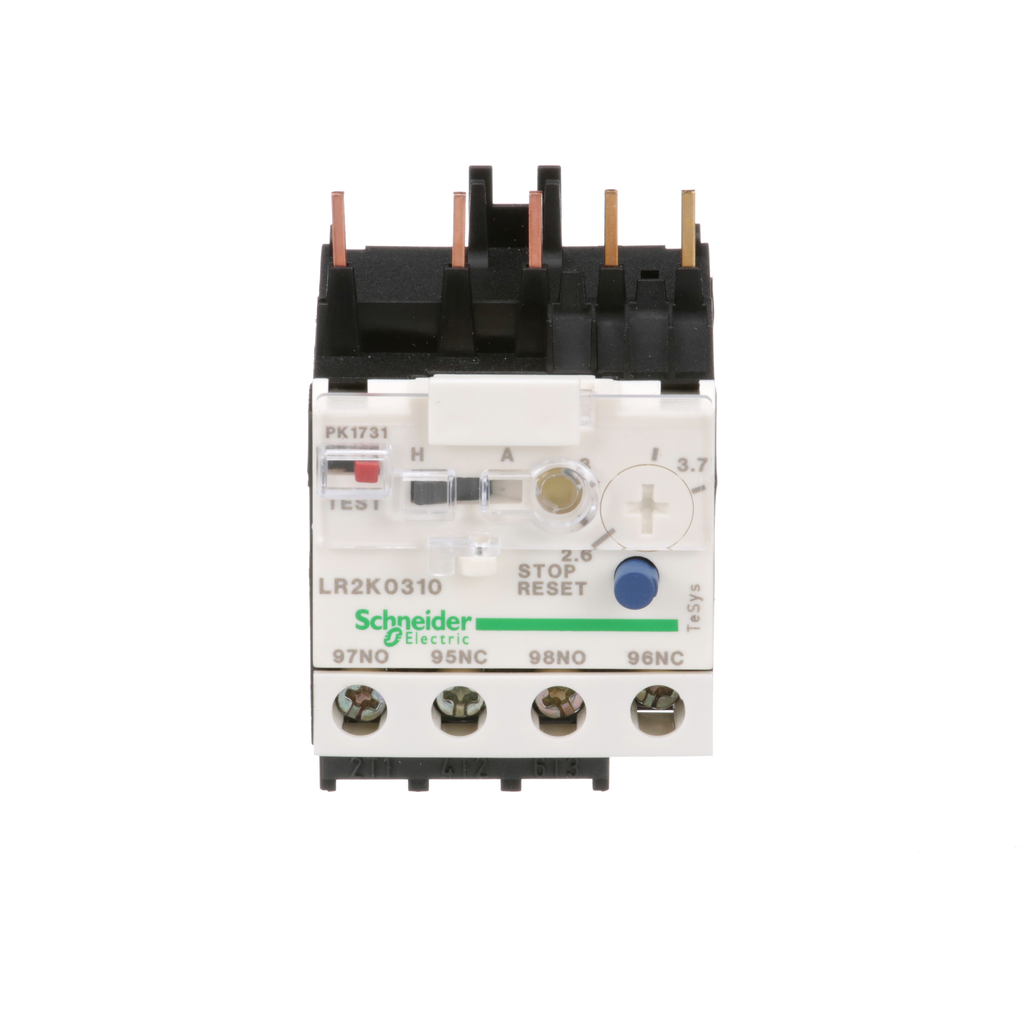

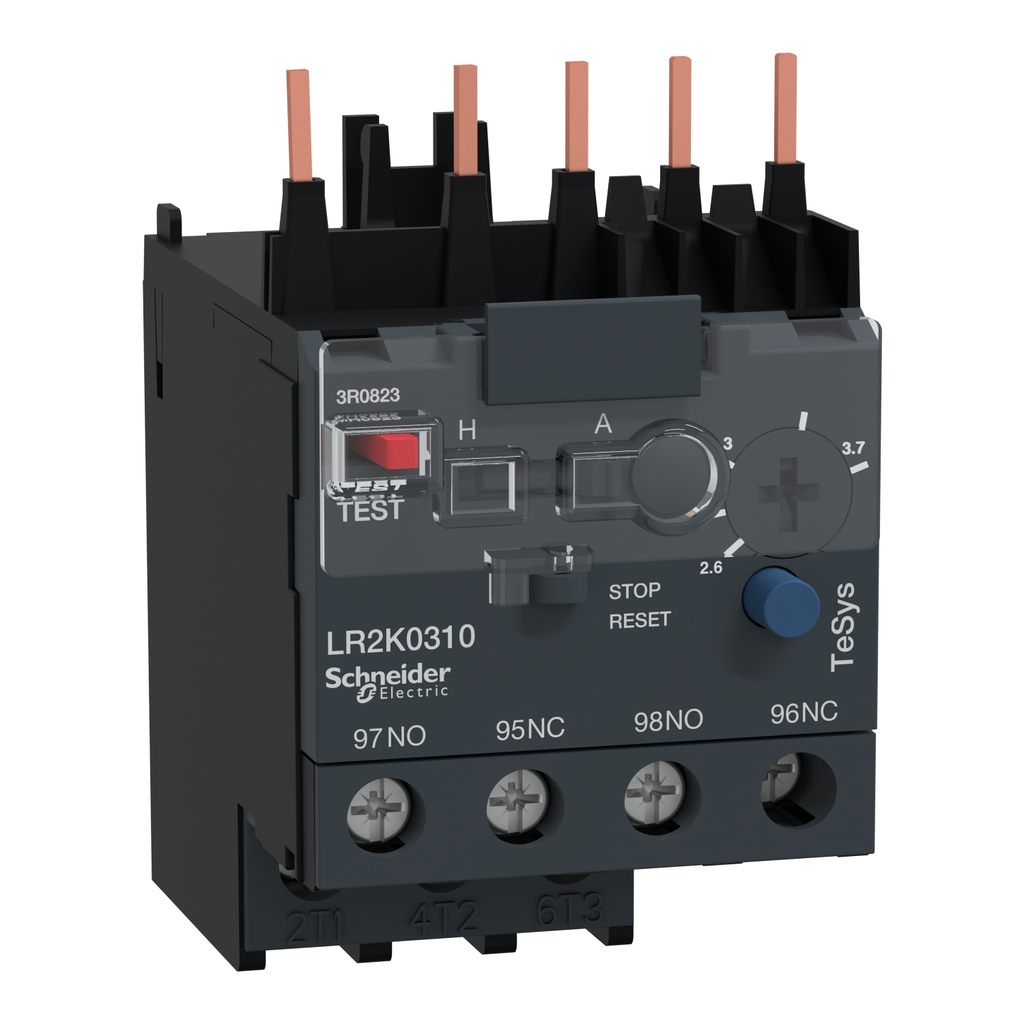

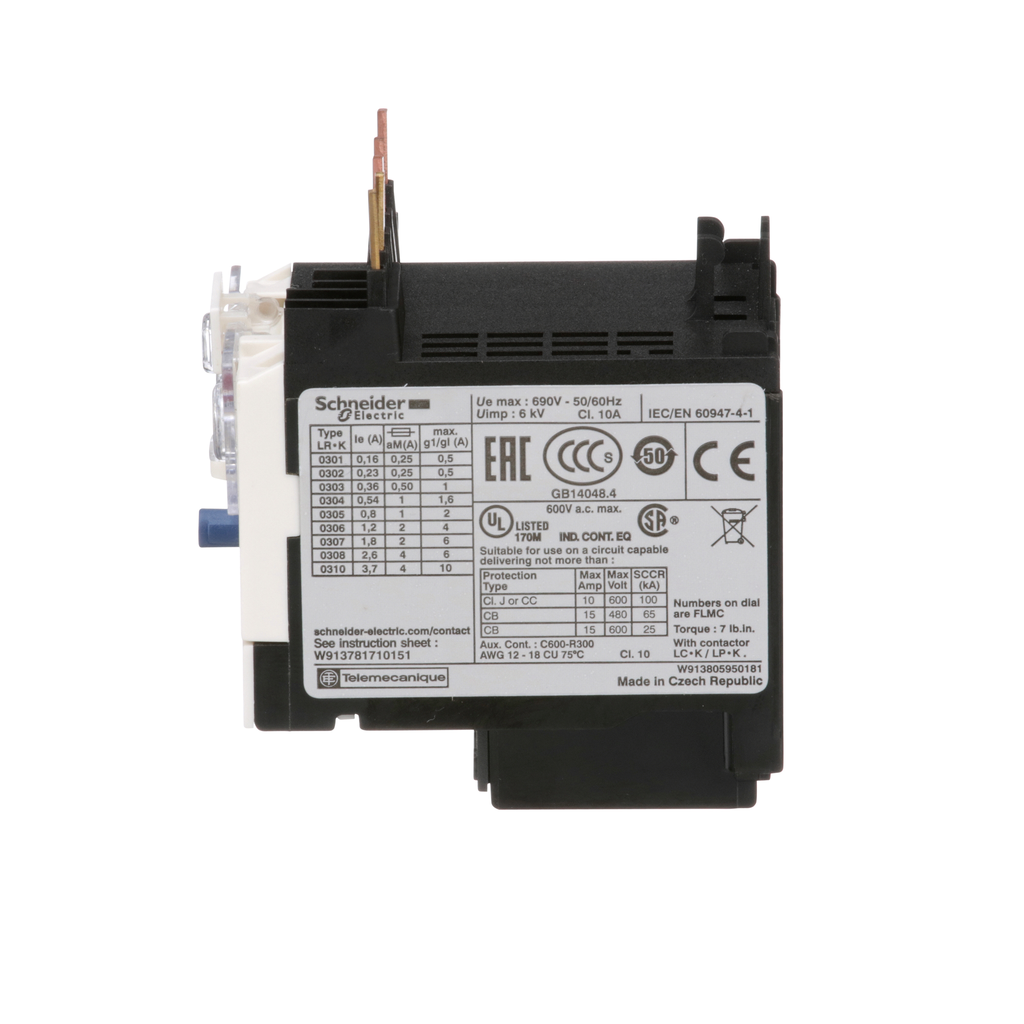

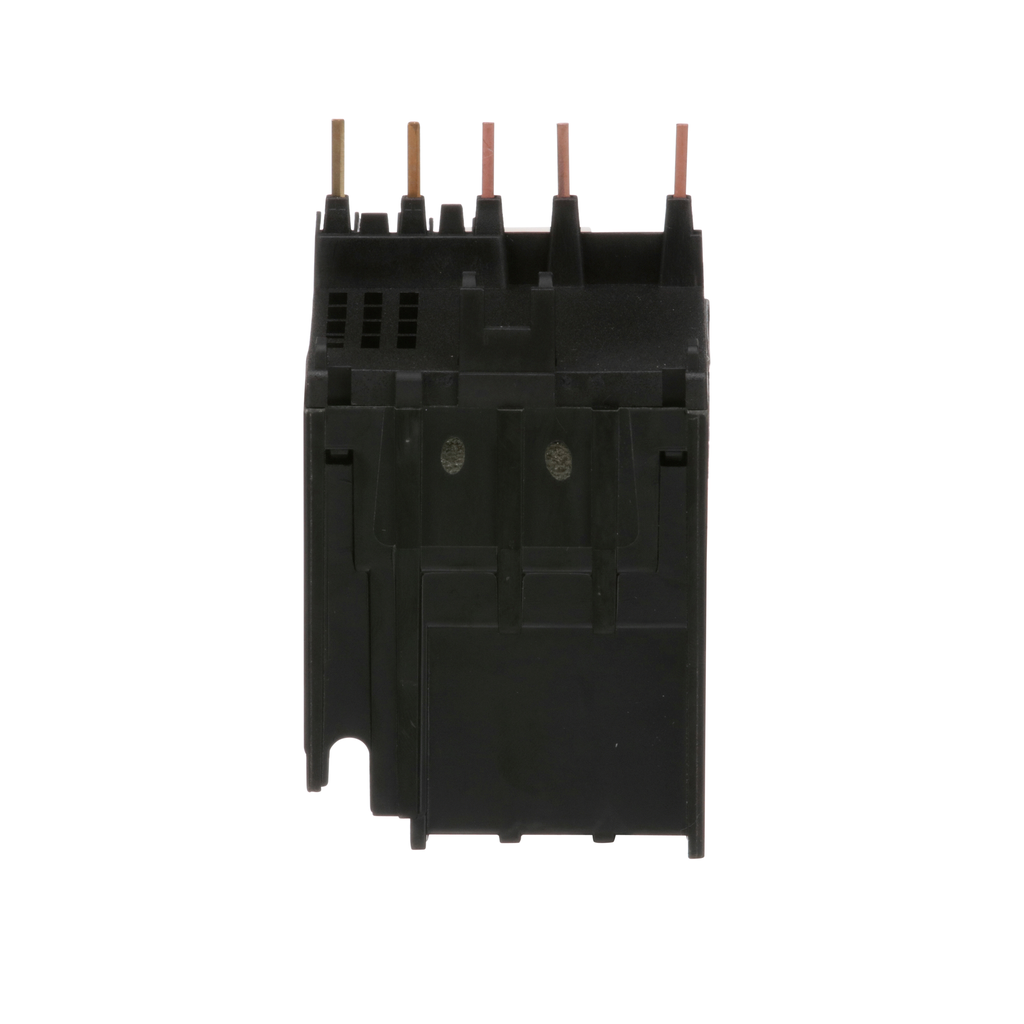

Square D LR2K0310 600 Volt 3.7 Amp 3-Pole 1NO 1NC Bi-Metallic Screw Clamp Terminal Thermal Overload Relay

Manufacturer: Square-D / Schneider | Catalog # LR2K0310 | Cooper Electric Part # 94251
$67.76/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
23 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
TeSys LRK thermal overload relay, 3.7A/690V, thermal setting range 2.6-3.7A, tripping class 10A, for protection of 3-phase motors 1.1-1.5kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test slide switch for simulation of a tripping, reset/stop button, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1K06-K16. Mounting on DIN rail, separated from the contactor, with use of a terminal block LA7K0064 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHs/Reach).

Technical Information

Applications
LC7K;LP1K;LP4K;LC1K;Motor protection
Contact Configuration
1 NO + 1 NC
Control Type
Red push-button trip test function;Blue push-button stop and manual reset; selector switch manual or automatic reset
Net Weight
0.145 kg
Number of Poles
3 Pole
Operating Cycles
<=400HZ
Operating Temperature
-20C TO 55C
Reset Type
MANUAL OR AUTO
Size
2.56 in
Standard
BS 4941,IEC 60947,NF C 63-650,VDE 0660
Storage Temperature
-40-70 degrees C
Trip Type
THERMAL - AMBIENT COMPENSATED BI-METALLIC/DIFFERENTIAL CLASS 10 WITH SINGLE PHASE SENS.
Type
Differential thermal overload relay
Voltage
250 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
LR2K;TeSys LRK

General Product Info

12-Digit UPC
338911023048
GTiN
03389110230499
Product UPC
78590188305
Weight
0.145 kg

Dimensions

Depth
2.56 in
Height
2.28 in
Warranty Length
18 mth
Width
1.77 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,UKCA,UL
Country of Origin
Czechia
Control Type
  • Red push-button trip test function
  • Blue push-button stop and manual reset
  • selector switch manual or automa
Connections Terminals
  • screw clamp terminals 1 1.5-4 mm²solid
  • screw clamp terminals 2 1.5-4 mm²solid
  • screw clamp terminal
ITH Conventional Free Air Thermal Current
  • 6 A signalling circuit
Mounting Support
  • under contactor
  • plate, with specific accessories
  • rail, with specific accessories
CAD
  • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004653_3D-CAD&p_File_name=MCADPD0004653_3D-simplified.stp
  • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004653_3D-CAD&p_File_name=MCADPD0004653_2D-back.dwg
  • https://downlo
IP Degree Of Protection
  • IP2X conforming to IEC 60529
Prop 65
  • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Carbon Footprint Of The Installation Phase A5
  • 0.043940103606662645
  • 0 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 0.4 kg CO2 eq.
  • 0.3570299549275095
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 0.9 kg CO2 eq.
  • 0.8931643852450023
Protective Treatment
  • TC IEC 60068
  • TC DIN 50016
UI Rated Insulation Voltage
  • power circuit 690 V BS 4941
  • power circuit 690 V IEC 60947
  • power circuit 750 V VDE 0110 group C
  • power
Market Segmentation
  • Commercial
  • Industrial
Persona Type Names
  • End User
  • Contractor
  • Original Equipment Manufacturer
  • OEM - Control Panelbuilder
  • Panel Builder
  • Electrician
Thermal Overload Class
  • class 10A IEC 60947-4-1
Fire Resistance
  • 850 °C IEC 60695-2-1
Flame Retardance
  • V1 conforming to UL 94
  • requirement 2 conforming to NF F 16-101
  • requirement 2 conforming to NF F 16-102
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 5 kg CO2 eq.
  • 4.986699999999999
Accessory Products
  • LA7K0064
Persona Type Ids
  • EU
  • LC
  • OM
  • OM8
  • PB
  • SC
Carbon Footprint Of The Distribution Phase A4
  • 0.017124164486850613
  • 0 kg CO2 eq.
Tightening Torque
  • 1.3 N.m screw clamp terminals Philips No 2
  • 1.3 N.m screw clamp terminals flat Ø 6 mm
Mechanical Robustness
  • shocks NO contact10 Gn for 11 ms IEC 60068-2-27
  • shocks NC contact10 Gn for 11 ms IEC 60068-2-27
  • shocks NC cont
Operating Altitude
  • 6561.68 ft (2000 m) without derating
Network Type
  • DC
  • AC
Market Segmentation Id
  • COMMERCIAL
  • INDUSTRIAL
Associated Fuse Rating
  • 6 A gG for signalling circuit conforming to VDE 0660
  • 6 A gG for signalling circuit conforming t
Local Signalling
  • trip indicator Yellow)
Ambient Air Temperature For Operation
  • -20-55 °C without derating IEC 60947
  • -30-60 °C with derating IEC 60947
UE Rated Operational Voltage
  • <= 690 V power circuit
  • 690 V AC AC-15 signalling circuit
  • 250 V DC DC-13 signalling circuit
  • 250
Phase Failure Sensitivity
  • yes IEC 60947-4-1
