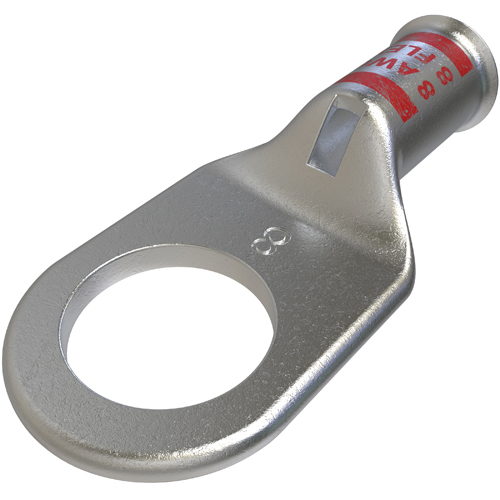

Ilsco CCL-8-38 Copper Compression Lug, Conductor Size 8, 1 Hole, 3/8in Bolt Size, Standard Barrel, Sight Window, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # CCL-8-38 | Cooper Electric Part # 94245
$5.44/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
ILSCO Copper Compression Lug, Copper material, Tin plated connector,Standard barrel, 1 mounting hole(s), mounting bolt/stud size 3/8 in, UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper Primary Conductor 8 Str, sight window, Round tang end, flex conductor range 8 G,H,I,K,M,DLO, rated for 35 kV, die color code Red, primary color Silver, die index I-21,

Technical Information

Applications
Terminating Connector
Bolt Size
3/8 IN
Color Coding
Red
Conductor Size
8 AWG
Material
Copper
Number of Holes
1 Hole
Size
L:1.305;W:0.605;H:0.33 IN
Standard
UL File Number: E6207,CSA File Number: LR-29601,UL Specifications: UL 486A-B
Stud Size
3/8 in
Temperature Rating
90 degrees C
Type
Light Duty
Voltage
600 Volt

Packaging

Pkg Qty
50

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669031065
Color
Silver
Finish
Electro-Tin Plated
GTiN
00783669031065
Product UPC
78366903106

Dimensions

Inside Diameter
0.185 in
Outside Diameter
0.256 in
Overall Length
1.276 in
