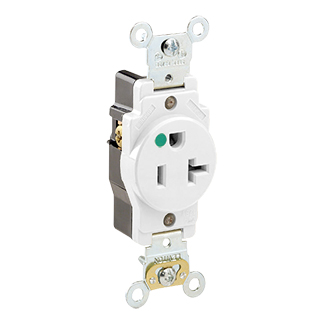

Product image for Leviton 8310-W 20 Amp 125 Volt NEMA 5-20R 2-Pole 3 Wire Self Grounding Back and Side Wired Steel Strap White Single Receptacle
Email

Leviton 8310-W 20 Amp 125 Volt NEMA 5-20R 2-Pole 3 Wire Self Grounding Back and Side Wired Steel Strap White Single Receptacle

Manufacturer: Leviton Mfg Co | Catalog # 8310-W | Cooper Electric Part # 942229
$54.79/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet Product Brochure
Single Receptacle Outlet, Heavy-Duty Hospital Grade, Smooth Face, 20 Amp, 125 Volt, Back or Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - White

Technical Information

Amperage
20 Amp
Applications
Commercial, Heavy Duty
Body Material
Nylon
Conductor Size
14-10 AWG
Connection Type
Back and Side Wired
Device Type
Single Receptacle Outlet
Dielectric
2000 V
Dielectric Strength
2000 V
Face Material
Nylon
Flamability Class
Rated V-2 Per UL94
Grade
Hospital
Grounding
Self-Grounding
Horsepower
1 hp
Material
Thermoplastic
Mounting Type
Box, Flush, Screw
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
46 H x 1.31 W x 16 D IN
Standard
ANSI C-73
TC Connection
Back & Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Termination Type
Back Wire,Side Wire
Torque
14 lb-in
Type
Heavy Duty
Voltage
125 Volt
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Industrial Receptacles

General Product Info

12-Digit UPC
078477133194
Color
White
Environmental Conditions
Flammability (Rated V-2 Per UL94)
GTiN
00078477133194
Product UPC
07847713319

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Country of Origin
Please Contact Customer Service
NEMA
  • 5-20R
