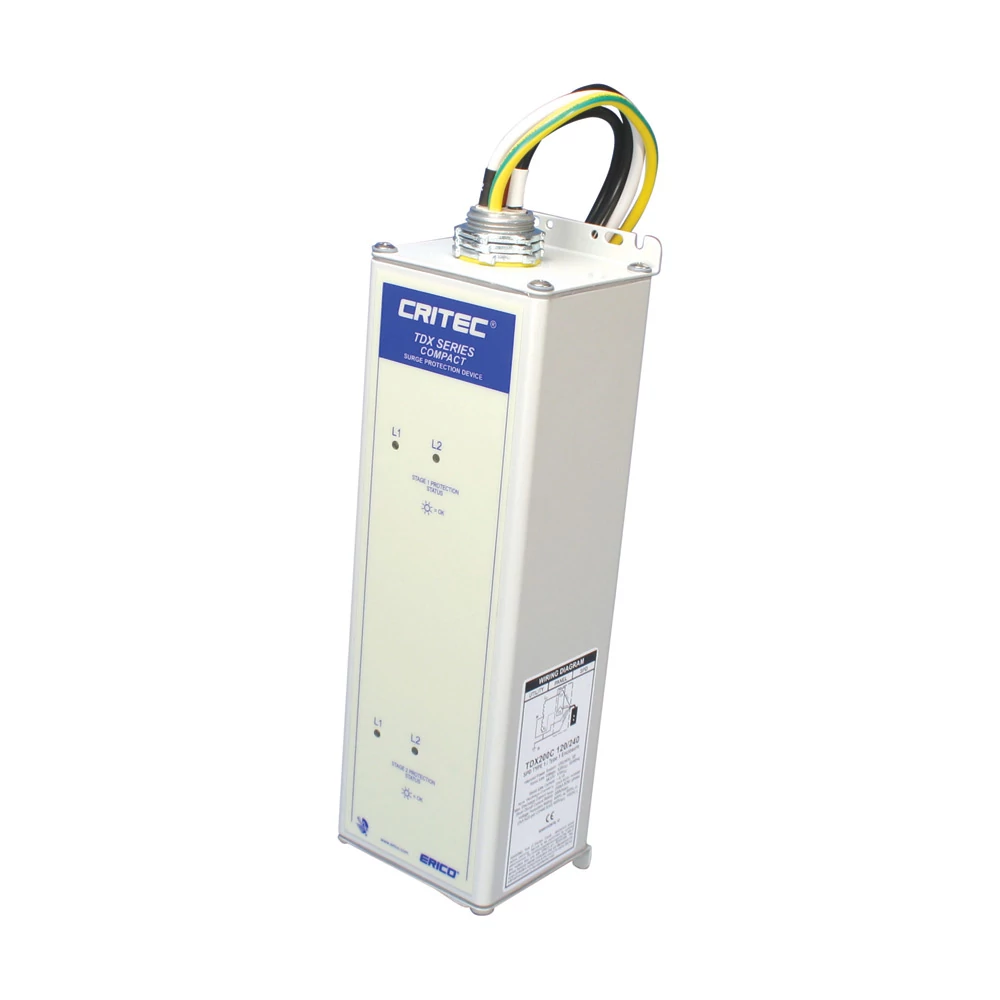

Erico TDX200C277/480 Compact TDX Panel Protector, 200 kA, 277/480 V Un

Manufacturer: Erico, Inc | Catalog # TDX200C277/480 | Cooper Electric Part # 940126
$1,688.46/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure
Transient discriminating technology for 277/480 3 phase systems.

Technical Information

Applications
Power Connections; Surge Protection
Enclosure Material
Metal
Enclosure Rating
NEMA®-4
Standard
C-Tick,UL,CE
Type
Transient Discriminating Panel Protectors

Manufacturer Information

Brand
nVent Erico
Sub Brand
ERICO

General Product Info

12-Digit UPC
782856670186
GTiN
00782856670186
Product UPC
78285667018
Weight
2.00 kg

Dimensions

Depth
78-78
Height
279-279
Width
84-84
Certifications
  • UL ANSI/UL 1449
Features
  • Built-in features include TD Technology, thermal protection and short circuit current fusing

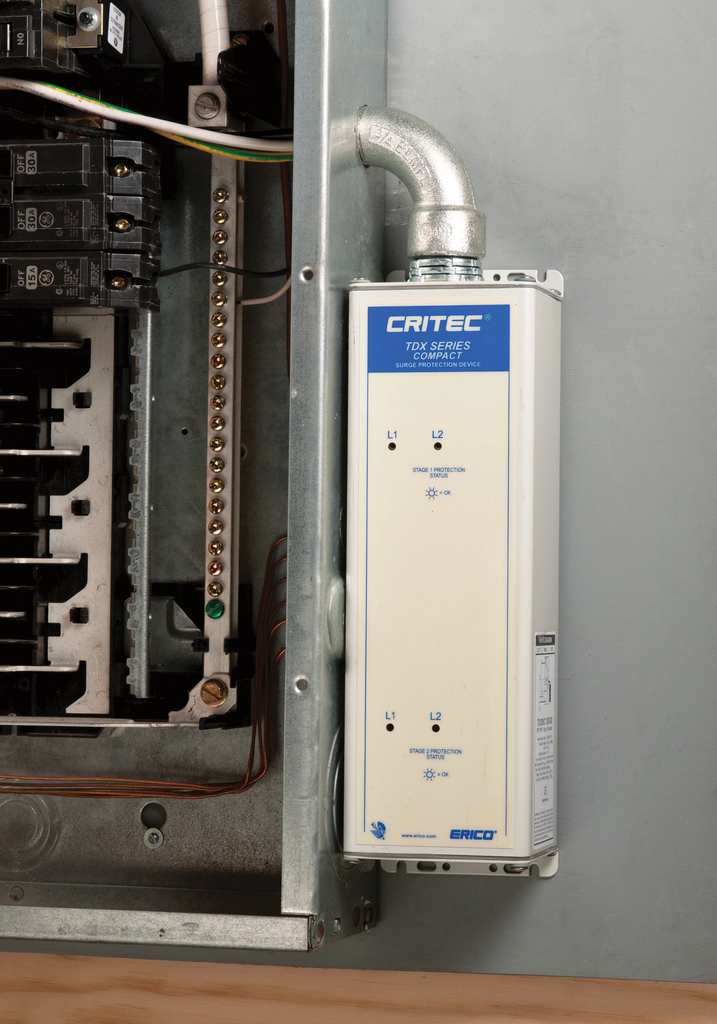

  • Compact NEMA®-4 enclosure design can be flush mounted or installed in a small space
  • LED status indication and voltage-free contacts provide remote status monitoring
  • 200 kA 8/20 ?s maximum surge rating provides protection suitable for main-distribution panels and an extended operational life
