Appleton EFS175-20232M U-LINE RECEPT MAL

Manufacturer: Appleton Electric | Catalog # EFS175-20232M | Cooper Electric Part # 939919
$764.83/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure

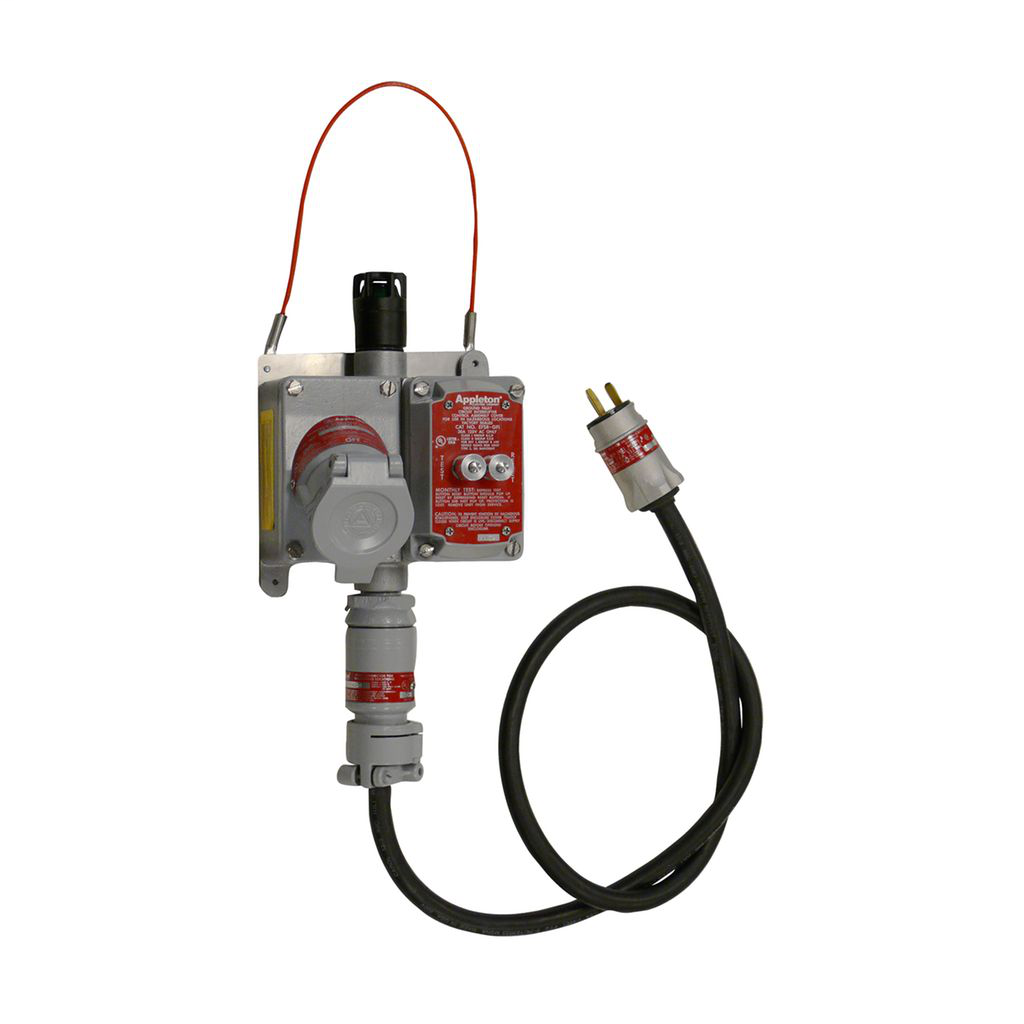

U-Line™ Factory Sealed 20 Amp Plugs and Receptacles are used with stationary or portable electrically operated devices in hazardous locations. The ECP Interchanger plug is designed with built-in switch contacts which activate when the plug is twisted into the receptacle. This design allows the ECP plug to fit into standard NEMA 5-20R and 6-20R receptacles, but does not allow standard plugs to be used with the receptacle, ensuring that only safe connections can be made in a hazardous location.

Technical Information

Amperage
20 Amp
Applications
For CPH And ECP Mating Plugs
Horsepower
1 hp
Material
Iron
Number of Poles
3 Pole
Number of Wires
2 Wire
Type
1-Gang Receptacle With Mounting Box
Voltage
125 Volt

Manufacturer Information

Brand
Appleton
Sub Brand
U-Line

General Product Info

12-Digit UPC
781381397025
GTiN
00781381397025
Product UPC
78138139702
Features
  • Energized receptacle contacts deeply recessed to reduce danger of accidental touching
  • Unique blade-type, brass contacts exert constant pressure along entire contact surface and provide superior electrical contact.
  • Insulators provide superior dielectric and mechanical strength and lowest arc tracking
  • ECP plug fits any standard non-explosionproof receptacle (NEMA 5-20R, or 6-20R) as well as U-Line™ explosionproof receptacles
  • Choice of malleable iron receptacle and mounting box or aluminum receptacle and mounting box

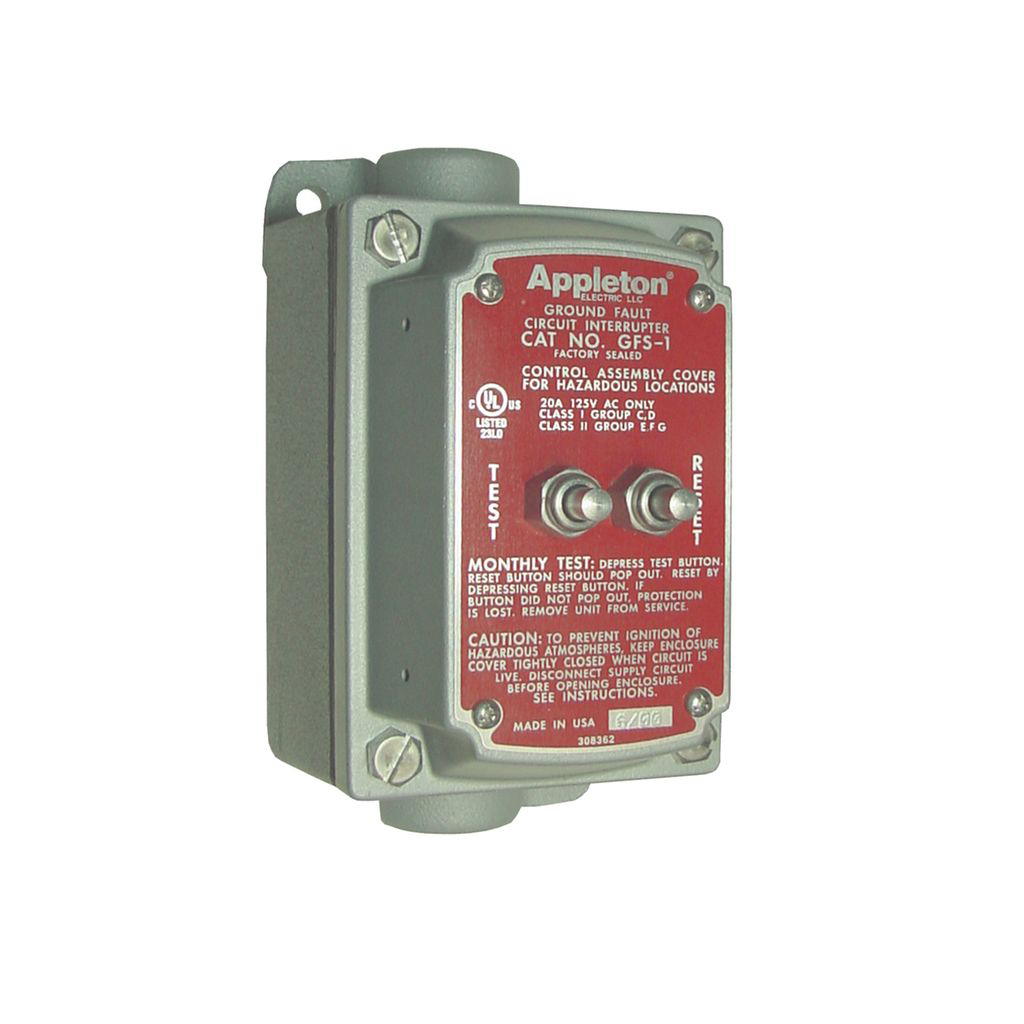

  • Ground fault circuit interrupting cover and receptacle combinations available
  • U-Line™ EFSR-K receptacle covers are UL Classified when used with Killark™ SWB series mounting boxes
  • Intermateable with competitor's plugs of like configurations
