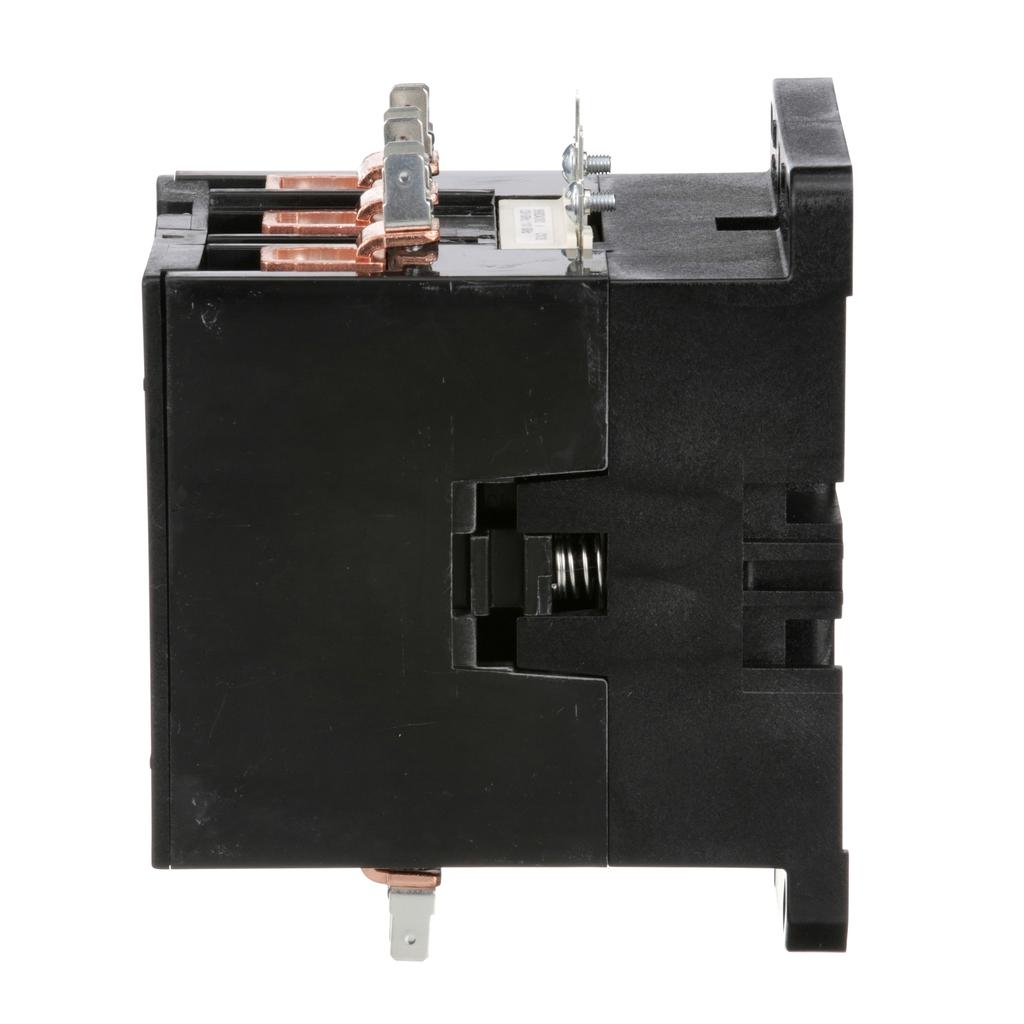

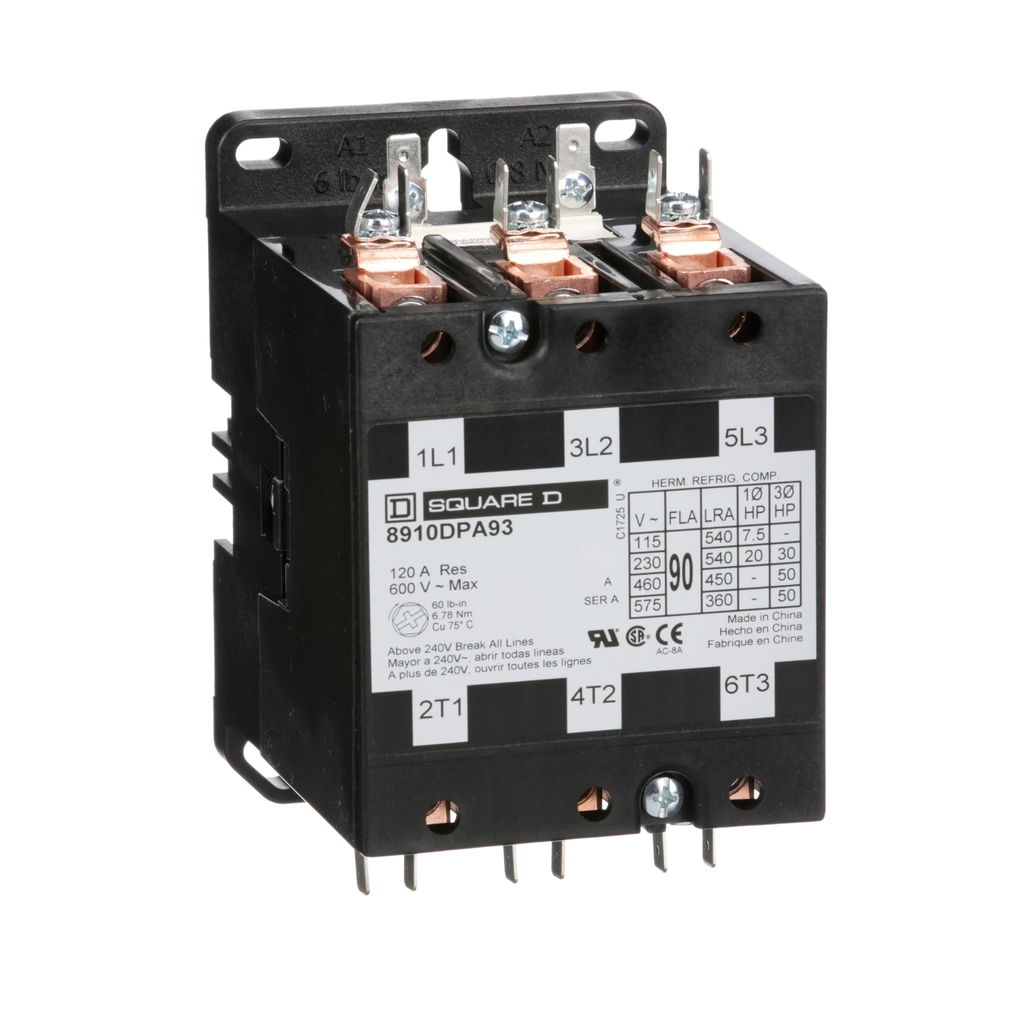

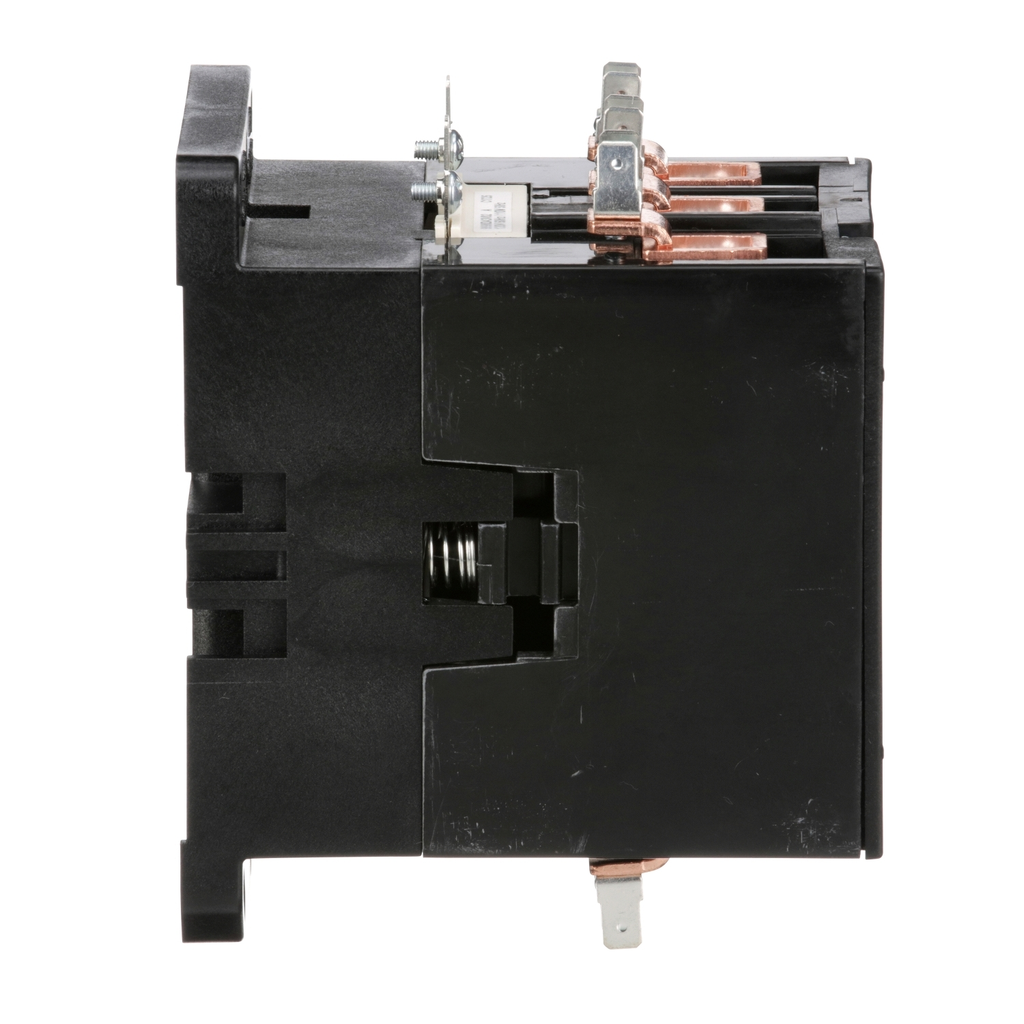

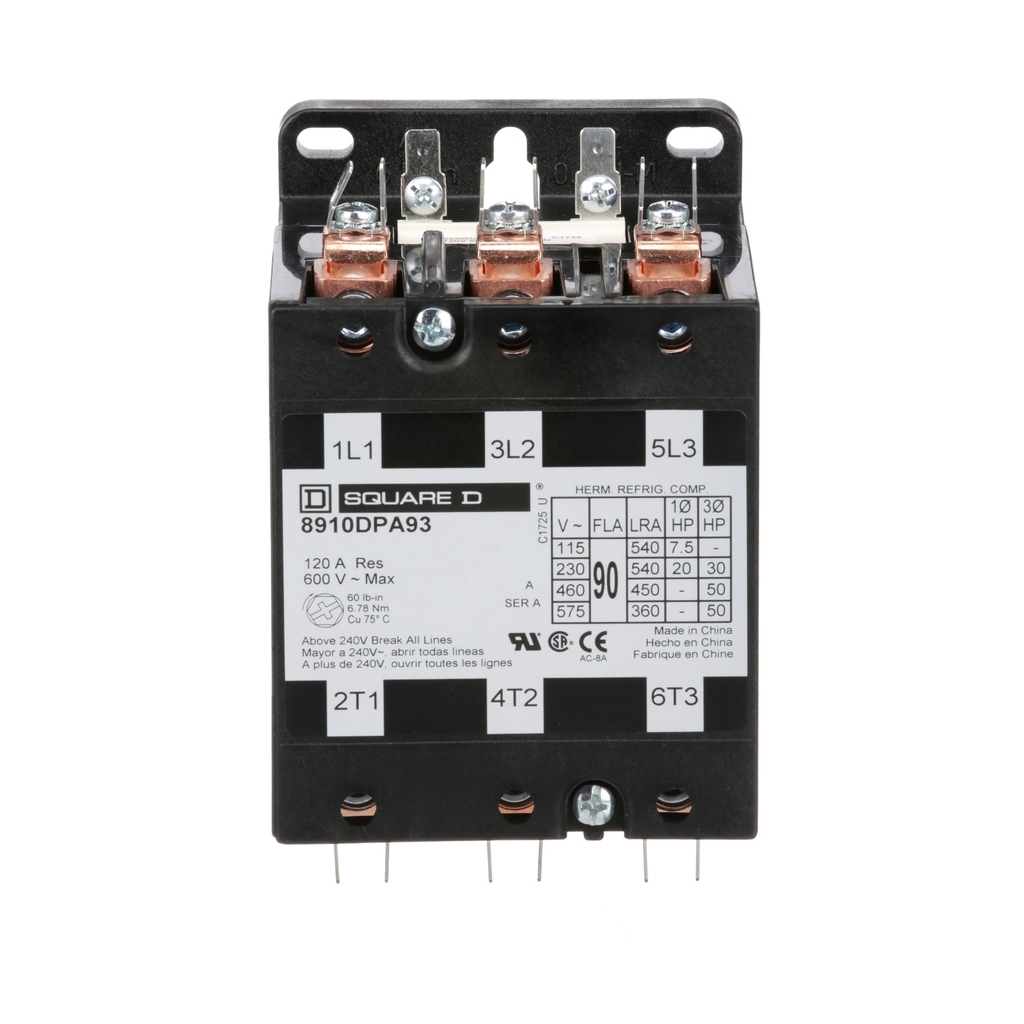

Square D 8910DPA93V02 110/120 VAC 90 Amp 3-Pole 3NO NEMA 1 Non-Reversing Definite Purpose Contactor

Manufacturer: Square-D / Schneider | Catalog # 8910DPA93V02 | Cooper Electric Part # 93990
$396.38/ea
ea
Log in or register to view your price, purchase history, and more!
1 2 3 4
24VAC 120VAC/110VAC 208/240VAC 277VAC 480VAC
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
2 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This three pole definite purpose contactor has a full load rating of 90 ampere and a resistive rating of 120 amperes. It also has a 7.5 HP at 115 VAC single phase, 20 HP at 230 VAC single phase and 30 HP at 230 VAC three phase, 50 HP at 460 VAC three phase and 50 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 5.20 inches by 3.39 inches and 4.76 tall. These contactors are UL component recognized and CSA certified.

Technical Information

Amperage
90 Amp
Applications
IDEAL FOR HEATING, AIR CONDITIONING, REFRIGERATION, DATA PROCESSING AND FOOD SERVICE EQUIPMENT.
Coil Voltage
120 V AC 60 HZ-110 V AC 50 HZ,600 V AC
Contact Configuration
3 NO
Contact Rating
90 A
Line Rated Current
90 A
Net Weight
3.7 lb
Number of Phases
3 Phase
Number of Poles
3 Pole
Size
4.67 in
TC Connection
Quick connect terminals;Box lugs
Type
Definite Purpose Contactor
Voltage
600 Volt

Manufacturer Information

Brand
Square D
Sub Brand
DPA

General Product Info

12-Digit UPC
785901118398
GTiN
00785901118398
Product UPC
78590111839
Weight
1.68 kg

Dimensions

Depth
4.67 Inch
Height
5.26 Inch
Warranty Length
18 mth
Width
3.39 in

Certifications and Compliance

CA Prop65 Warning
This product can expose you to chemicals which are known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov
Certifications
CSA,UL Recognized
Country of Origin
USA
Compatible Products
  • 9999D10
  • 9999D01
  • 9999D11
  • 9999D20
Spare Part Products
  • 9998DA3V02
