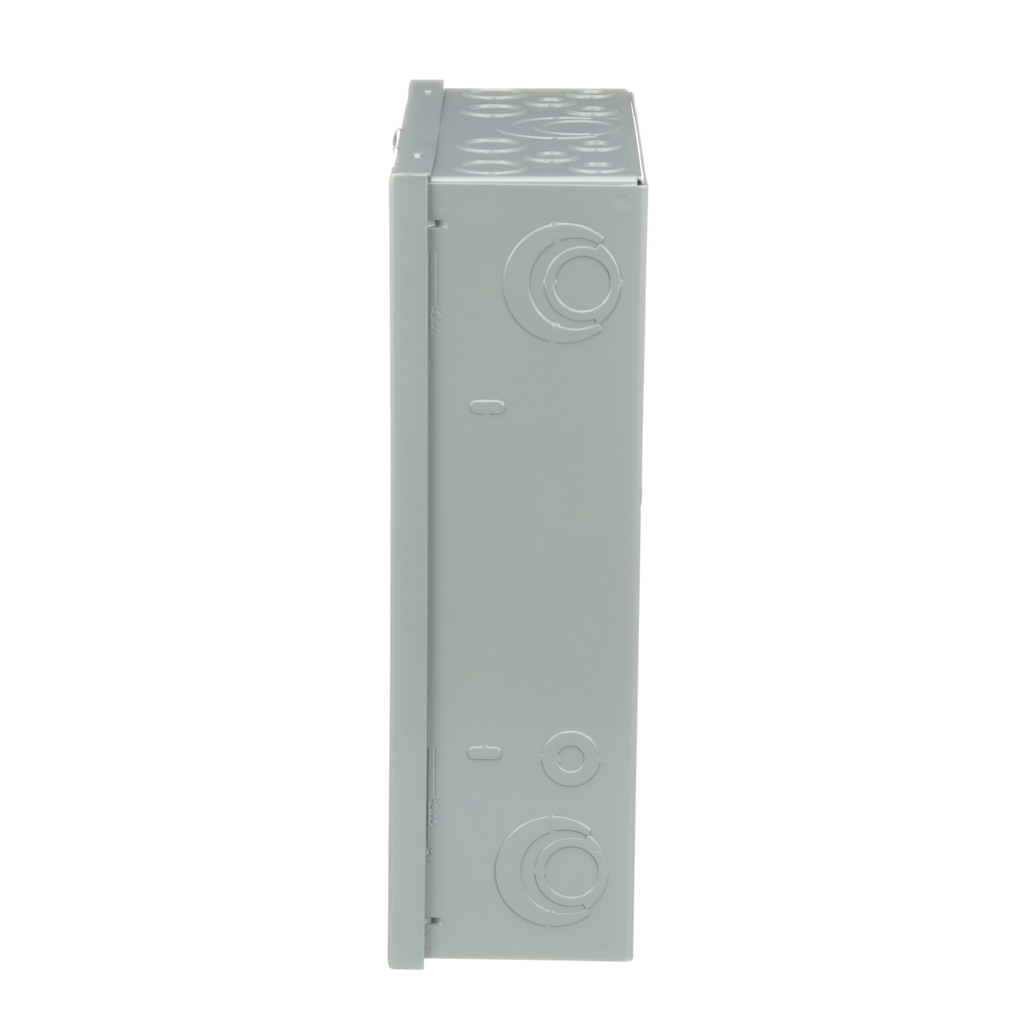

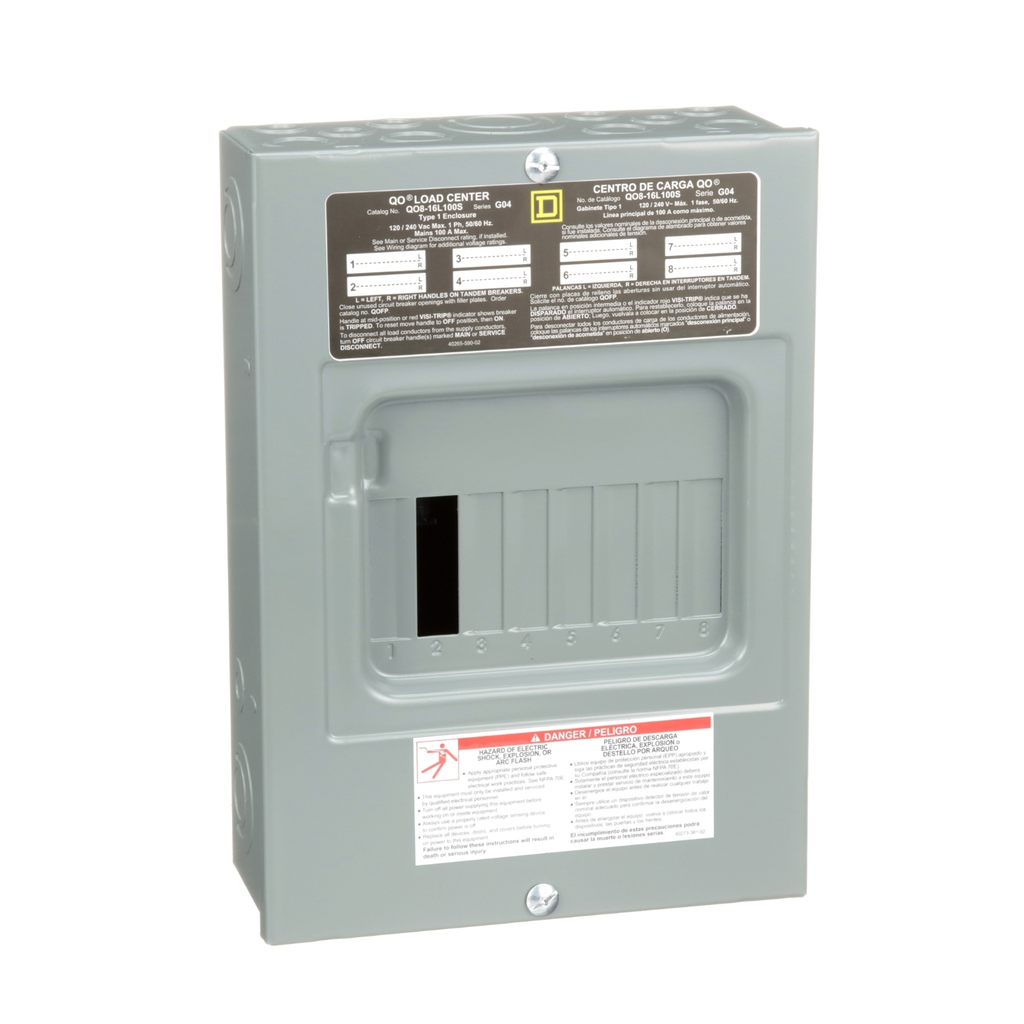

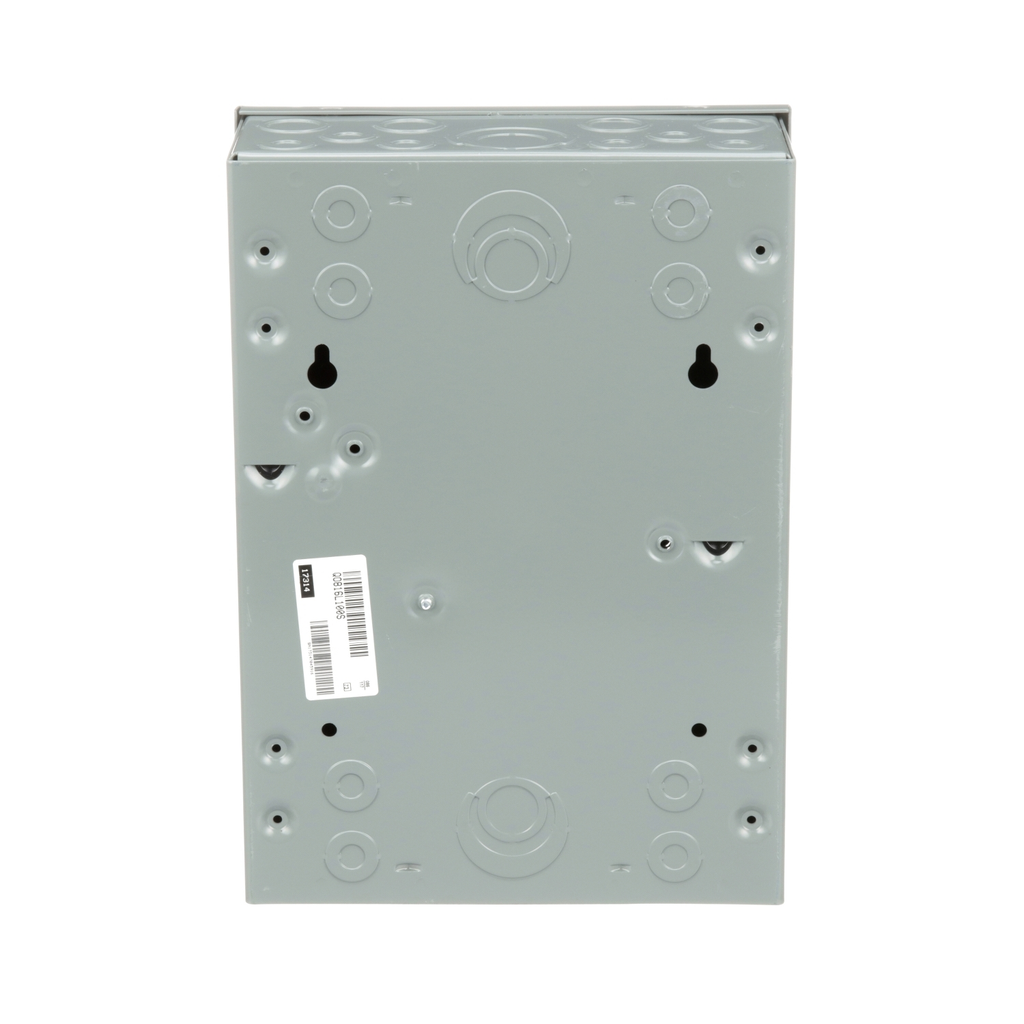

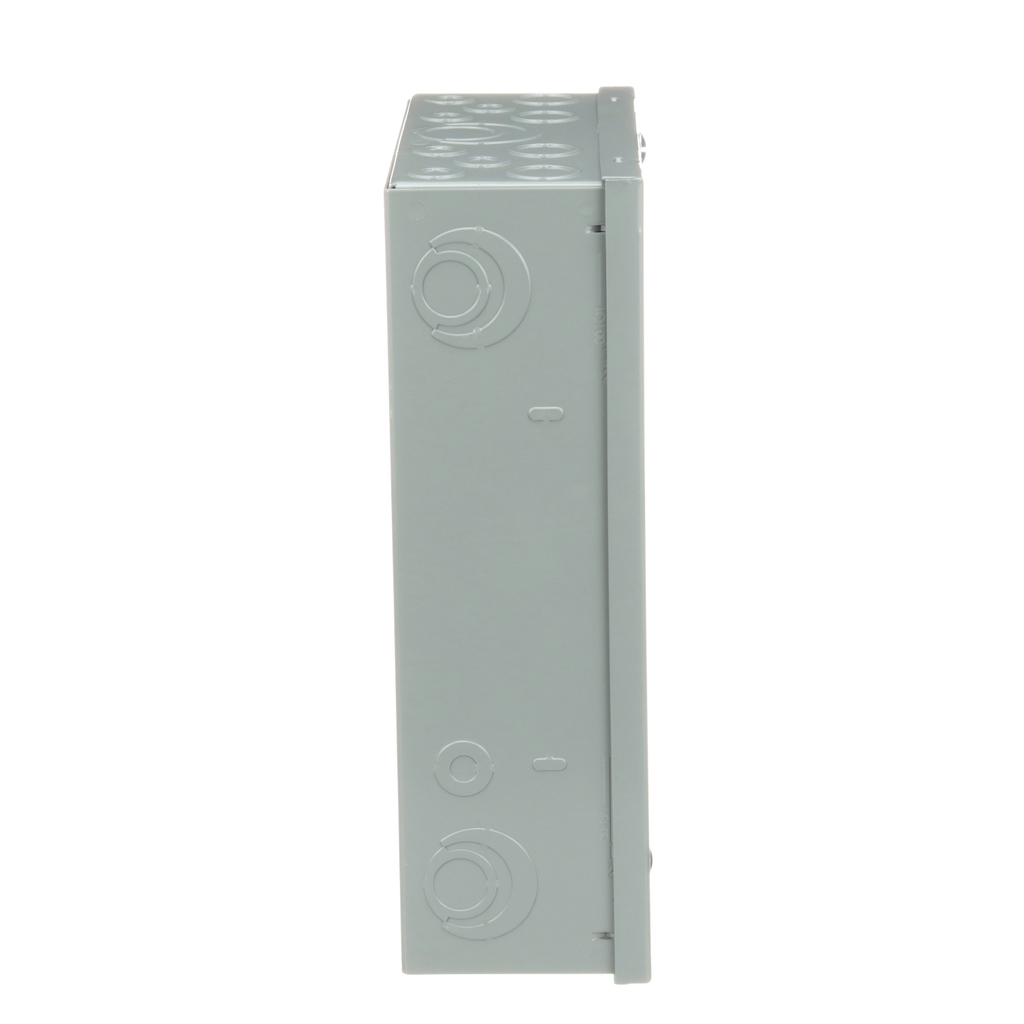

Square D QO816L100S Load Center MLO 100A 120/240V 1Ph 8SP NEMA-1

QO Load Centers offer premium features like QO breakers, ground arc fault interrupters and surge arresters. QO load centers are designed for residential and industrial use to protect electrical systems, equipment and people. Systems are single or three phase and have indoor and outdoor versions. QO Load Centers enable the use of a full complement of accessories. Indoor enclosures are designed to be rotated 180 degrees to accommodate top or bottom service entrance feed. This QO load center is supplied with a fixed main that is rated at 100A 120/240 VAC single phase. This QO load center provides a 10 kA breaking capacity. This system provides 4 spaces in a NEMA 1 indoor enclosure. Enclosure has a surface cover. A ground bar can be ordered for this load center. The lugs will accept a wire range of 8 AWG to 1 copper or aluminum wire. This QO load center has a height of 12.57 inches, a width of 8.88 inches and a depth of 3.80 inches. QO load center is UL Listed.
