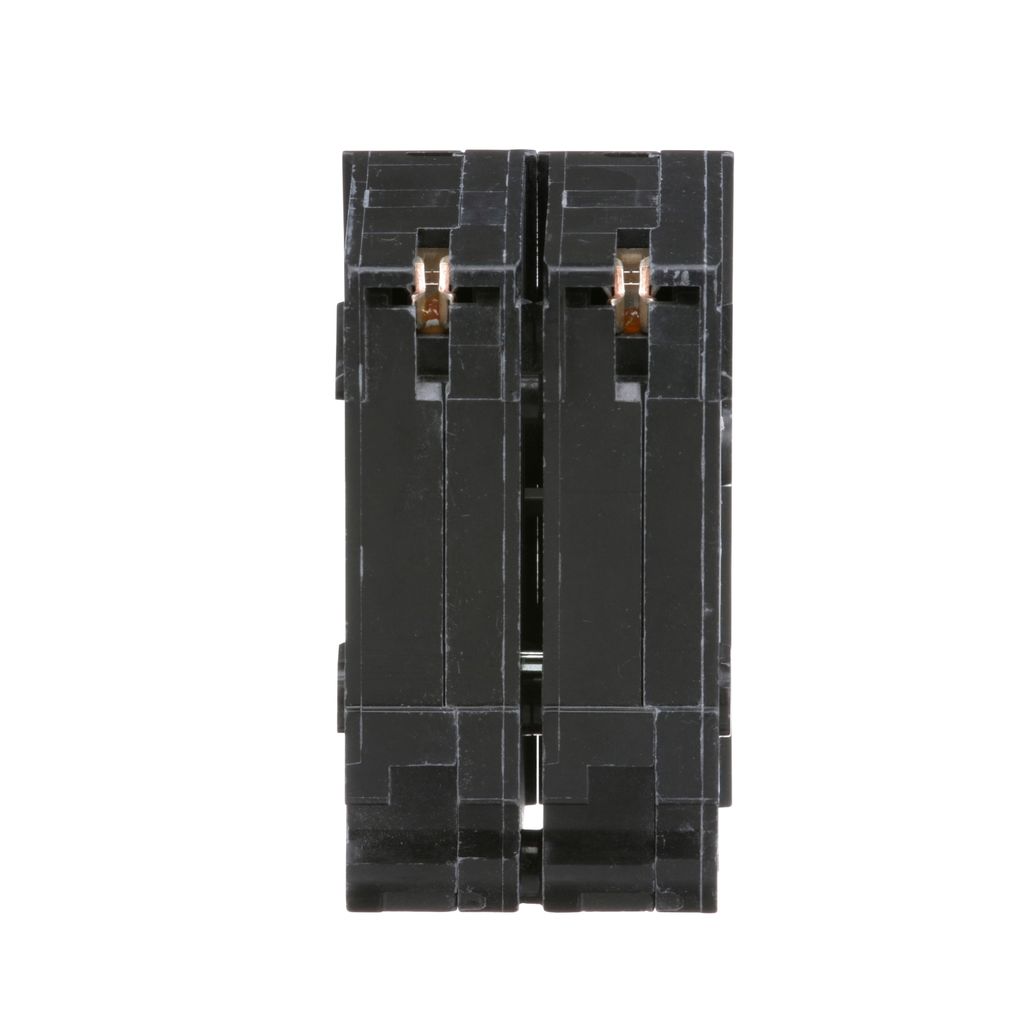

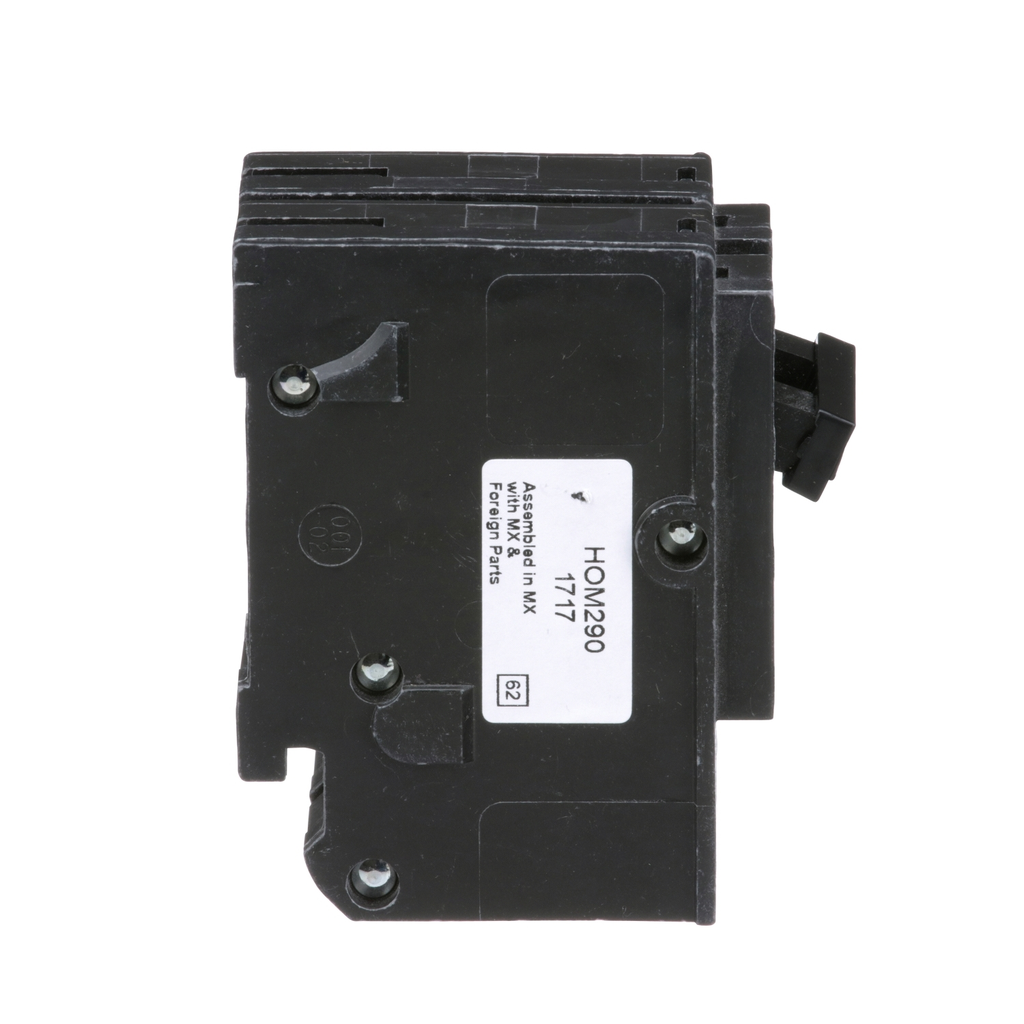

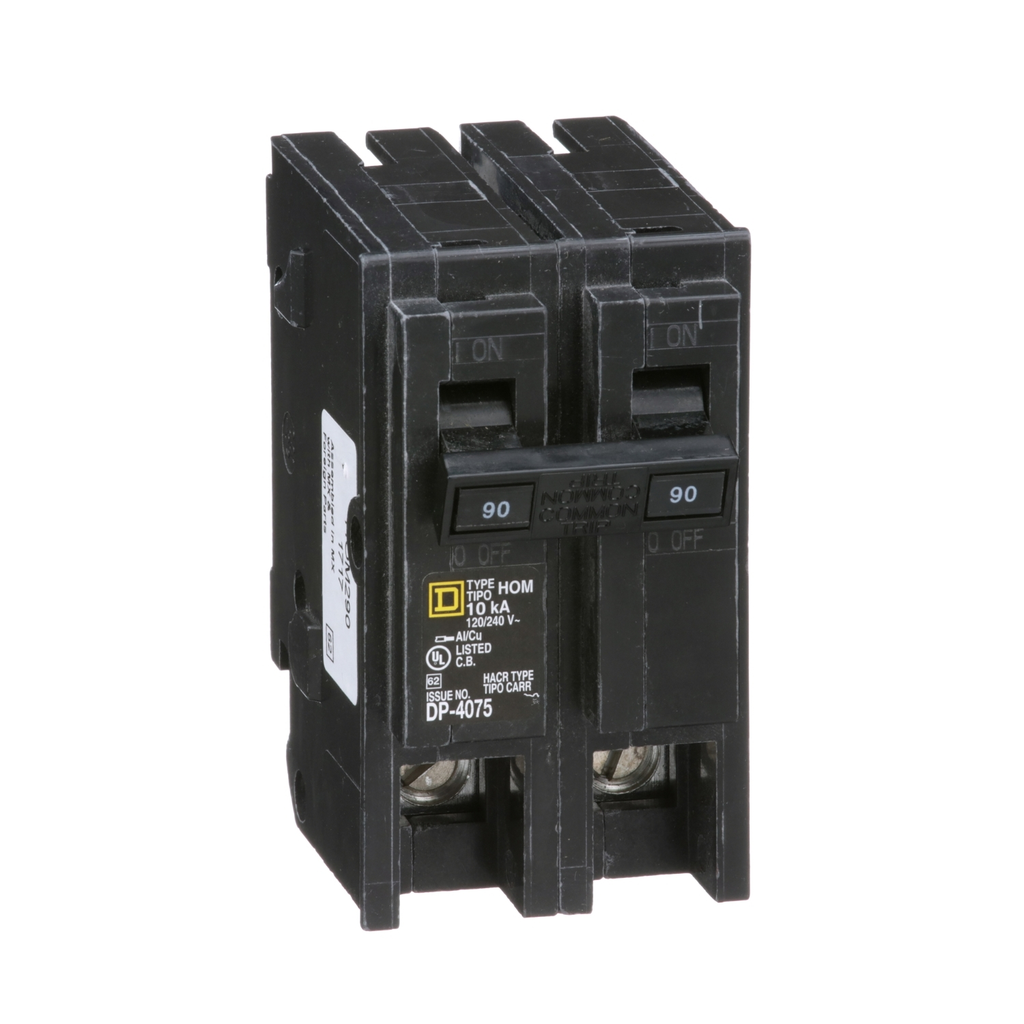

Square D HOM290 120/240 Volt 90 Amp Miniature Circuit Breaker

Manufacturer: Square-D / Schneider | Catalog # HOM290 | Cooper Electric Part # 93867
$168.00/ea
ea
Log in or register to view your price, purchase history, and more!
1 2 4
Plug-In Neutral Pigtail Neutral
3 available

For Pick Up

at Ocean Opens Monday 7:00am ET
37 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Product Brochure

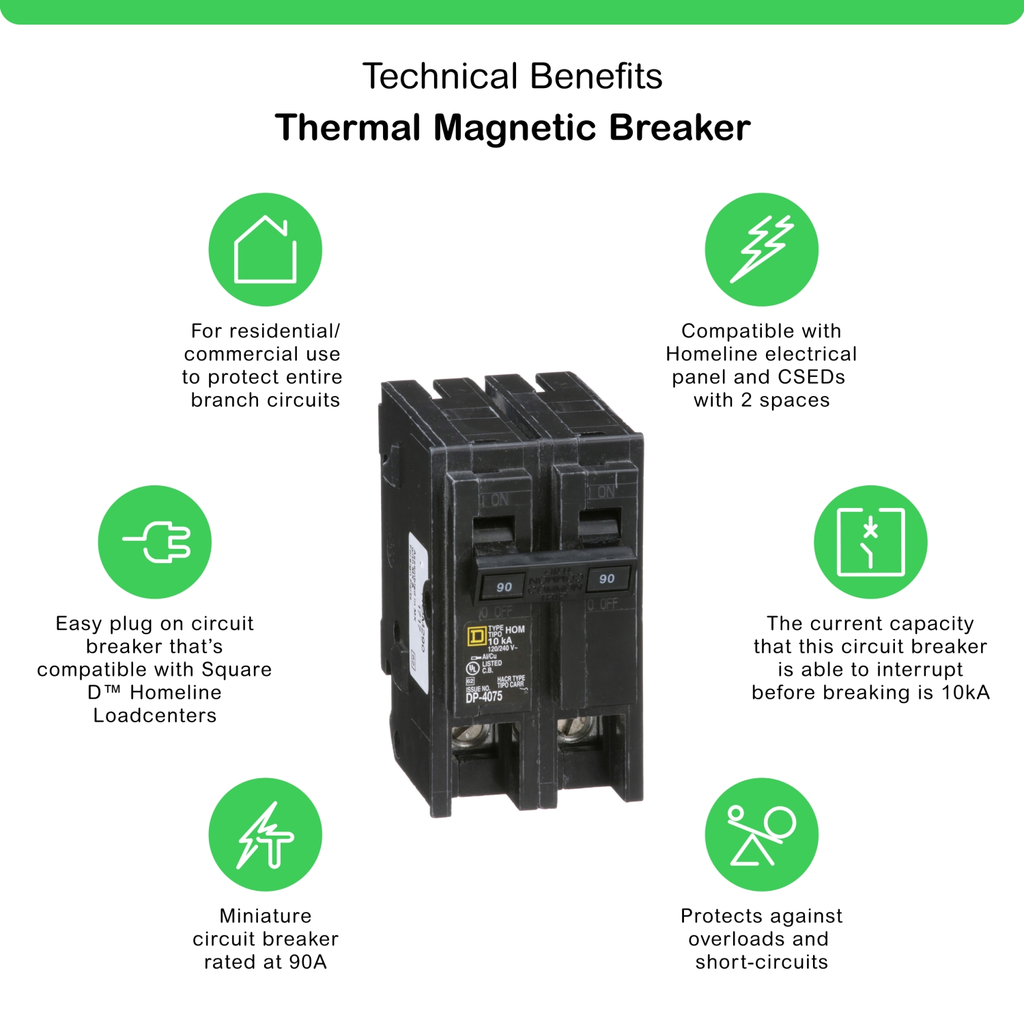

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 90A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connection is a clamp terminal that will accept 1 wires. The box lugs will accept a wire range of 4 AWG to 2/0 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 2.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.

Technical Information

Amperage
90 Amp
Applications
PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION
Circuit Breaker Type
Standard
Conductor Size
4-2/0 AWG
Current
90 Amp
Interrupt Rating
10 kAIC
Line Rated Current
90 A
Mounting Type
Plug-in
Number of Poles
2 Pole
Number of Spaces
2
Operating Temperature
40 Adegrees C
Range
Homeline
Short Circuit Current
10 kA
Short Circuit Current Ratng
10 kA
TC Connection
SCREW #4 TO #2/0 AWG(AL/CU)
Type
MINIATURE CIRCUIT BREAKER
Voltage
120/240 Volt
Wire Size
AWG 4...AWG 2/0 aluminium/copper)1

Manufacturer Information

Brand
Square D
Sub Brand
HOMELINE

General Product Info

12-Digit UPC
785901065715
GTiN
00785901065715
Product UPC
78590106571

Dimensions

Depth
2.98 Inch
Height
3.13 Inch
Length
2.98 Inch
Warranty Length
Lifetime
Width
2 in

Certifications and Compliance

CA Prop65 Warning
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Certifications
UL
Country of Origin
Mexico
Compatible Products
  • HOM1HT
  • HOM3060M200PC
  • HOM612L100RB
  • HOM2448L125PGC
  • HOM3060L225PGC
  • HOM4080L225PGC
  • HOMTHT
  • HOM1224L125PGC
  • HOM2040L125PGC
  • QO1LO
  • HOM2HBD
  • HOM4284L225PC
  • HOM816M200PFTRB
  • HOM1PA
  • HOM816L125PRB
  • HOM2040M100PC
  • HOM2PALA
  • HOM4080L225PC
  • QOM1PA
  • HOM2448L125PQGC
  • HOM2040L125PC
  • HOM24L70RB
  • HOM1224L125PRB
  • HOM1224L125PC
  • HOM4080M200PCVP
