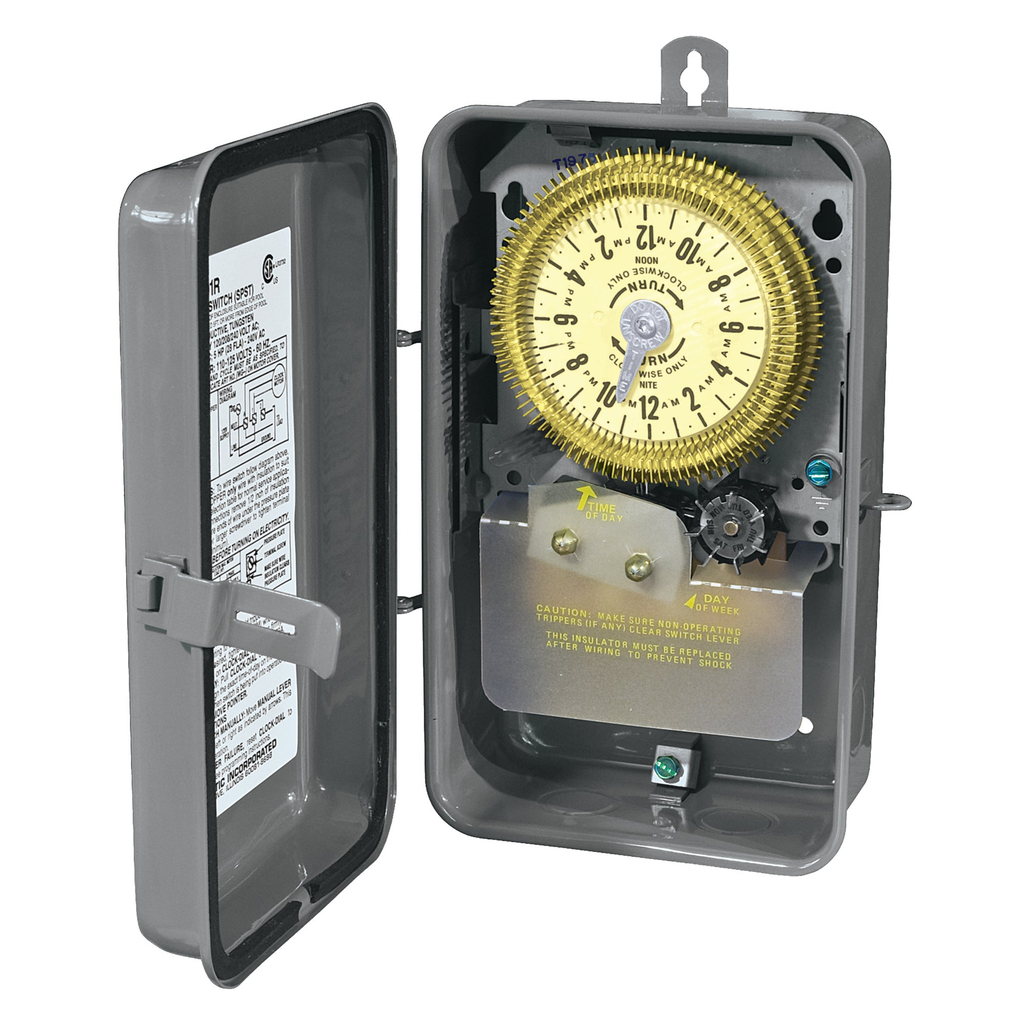

Product image for Intermatic T1975ER NEMA 3R 480 VAC 60 Hz 20 Amp SPDT Electromechanical Time Switch with Skipper Wheel
Image thumbnail 0
Image thumbnail 1
Email

Intermatic T1975ER NEMA 3R 480 VAC 60 Hz 20 Amp SPDT Electromechanical Time Switch with Skipper Wheel

Manufacturer: Intermatic, Inc | Catalog # T1975ER | Cooper Electric Part # 938511
$771.65/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
This series of mechanical time switches offers more flexible scheduling capabilities by offering 15-minute intervals. These units also come with trippers that slide in or out easily for fast and accurate settings. All units can control up to 20 A of electrical load and have a single pole, double throw switch.

Technical Information

Action
SPDT
Applications
Indoor Lighting Control,Outdoor Lighting Control,Timing/Scheduling ON/OFF
Contact Configuration
1 NO/1 NC
Contact Rating
20 AMP @ 125/208 - 277/480 VAC
Enclosure
NEMA 3R Steel
Frequency
60 Hz
Input Voltage
480 V
Max Operating Temperature
130 degrees F
Max Wire Size
12 AWG
Min Operating Temperature
-40 degrees C
Min Wire Size
14 AWG
Mounting Type
Wall Mount
Number of Circuits
1
Number of Poles
1 Pole
Operating Temperature
-40 To 130 degrees F
Power Consumption
3 W
Standard
CCSAus Certified
Switch Type
SPDT
Type
Electromechanical
Voltage
480 Volt
Wattage
3 Watt

Manufacturer Information

Brand
NA

General Product Info

12-Digit UPC
078275192607
Color
Gray
GTiN
00078275192607
Product UPC
07827519260

Dimensions

Depth
3-5/8 Inch
Height
10-1/8 Inch
Warranty Length
1 yr
Width
6.5 in

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - Lead
Country of Origin
Mexico
Features
  • Provides up to 96 operations (48 ON/48 OFF) every 24 hours
  • Models with skipper wheel allow for operations to be omitted on selected days of the week
  • 15-minute intervals
  • Captive trippers slide in and out of dial for fast, accurate setting
  • NA
