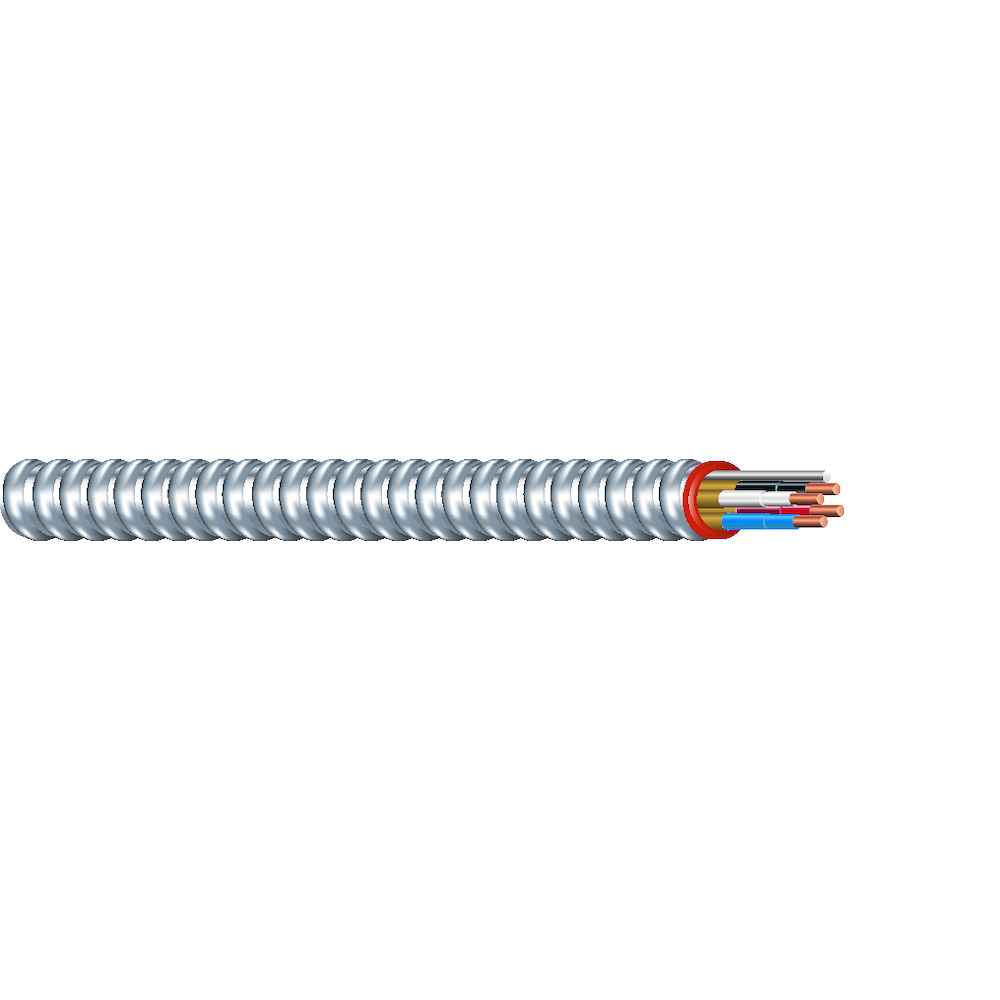

Product image for SWC 69094102 Armorlite Type MC Over
Email

SWC 69094102 Armorlite Type MC Over

Manufacturer: Southwire | Catalog # 69094102 | Cooper Electric Part # 937871
$4,977.24/m (1000 ft)
ft
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Southwire Armorlite Type MC Cable is constructed with soft-drawn copper Type THHN/THWN-2 conductors rated 90..C dry and a bare copper grounding conductor for sizes 1/0 AWG and larger. The conductors are cabled together and a binder tape bearing the print legend is wrapped around the assembly. Aluminum interlocking armor is applied over the assembly. Also available in steel. Conductors are black with phase identification. Colors available upon request with economic order quantity.

Technical Information

Conductor Material
Copper
Conductor Size
12 AWG
Number of Conductors
4
Type
MCON
Voltage
600 Volt

Manufacturer Information

Brand
Southwire
Sub Brand
Armorlite

General Product Info

12-Digit UPC
032886029691
Color
Natural
GTiN
00032886029691
Product UPC
03288602969
Weight
196.929

Dimensions

Length
1000 Foot
Outside Diameter
0.594
Warranty Length
1 yr

Certifications and Compliance

Country of Origin
Multiple
Features
  • Applications affected by harmonics generated from non-linear switching loads such as computers variable frequency drives electrical test equipment and office equipment.
  • Concealed or exposed installations
  • Installation in cable tray and approved raceways.
