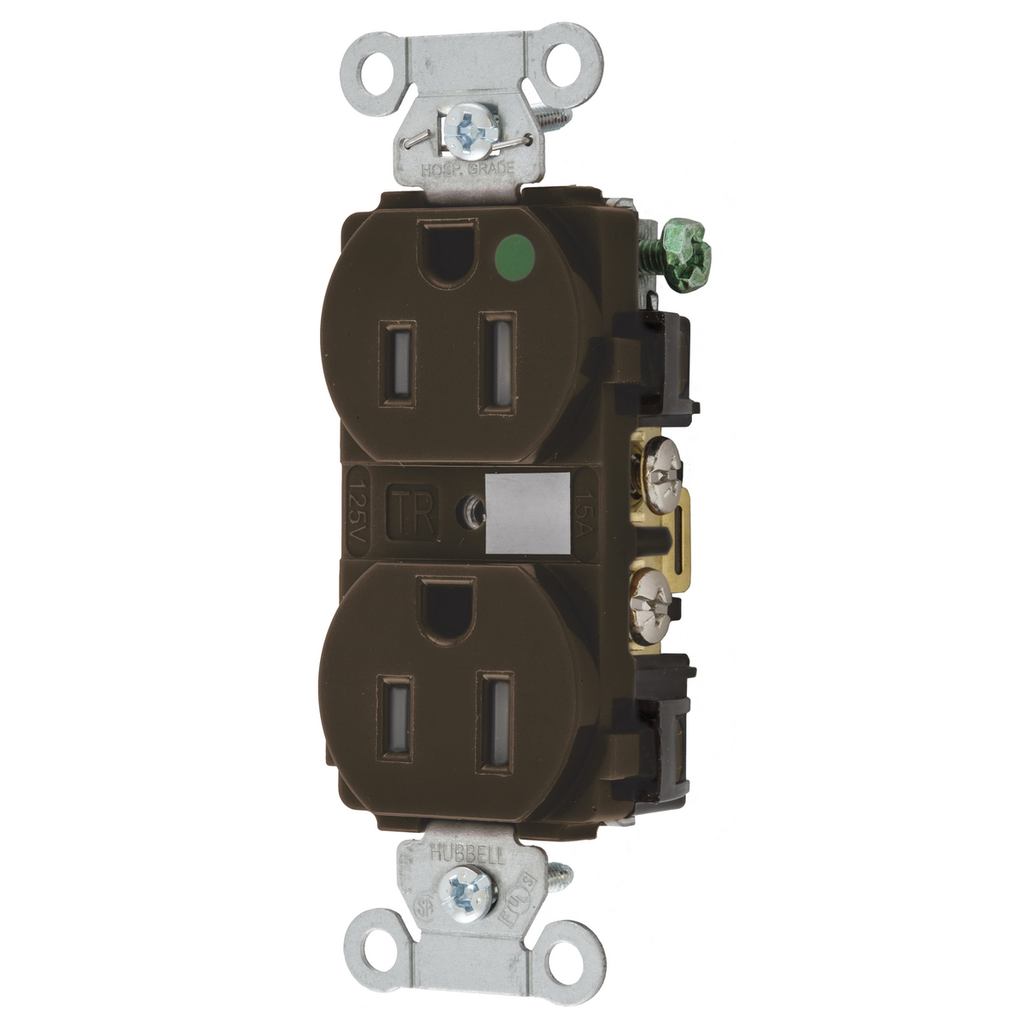

Product image for HUBW 8200TR 15A/125V DPLX RCPT
Email

HUBW 8200TR 15A/125V DPLX RCPT

Manufacturer: Hubbell Wiring Device | Catalog # 8200TR | Cooper Electric Part # 937147
$16.73/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Hospital grade, tamper-resistant, smooth face

Technical Information

Amperage
15 Amp
Base Material
PBT,PBT
Contact Material
Brass
Face Material
Nylon,Nylon
Flamability Class
UL 94V-2
Grade
Hospital
Number of Poles
2 Pole
Tamper Resistant?
Yes
Voltage
125 Volt
Wire Count
3

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems

General Product Info

12-Digit UPC
783585197135
Color
Brown,Brown
Product UPC
78358519713
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - UL 94V-2
  • Environmental - Operating Temperature - Maximum continuous 75°C
  • minimum -40°C (w/o impact)
  • Mechanical - Product Identification - Ratings are a permanent part of the device
  • Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Industry Standard(s)
  • Certified to CSA, C22.2, No. 42 File 285
  • Fed. Spec. W-C-596
  • NEMA® WD-6 Compliant
  • UL Listed to UL498 File No. E2186
Overview
  • Tamper-resistant shutter complies with national electrical code requirements
  • Straight Blade Devices, Tamper Resistant Duplex Receptacle, Hubbell-Pro, Hospital Grade, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Brown
  • Triple wipe contacts
  • Self Grounding, Tamper Resistant
  • High impact resistant face with circuit I.D. marking area
  • Steel mounting strap
