3M 7000132443 3M™ Cold Shrink Conne

Manufacturer: 3M | Catalog # 7000132443 | Cooper Electric Part # 936693
$33.30/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Safety Data Sheet

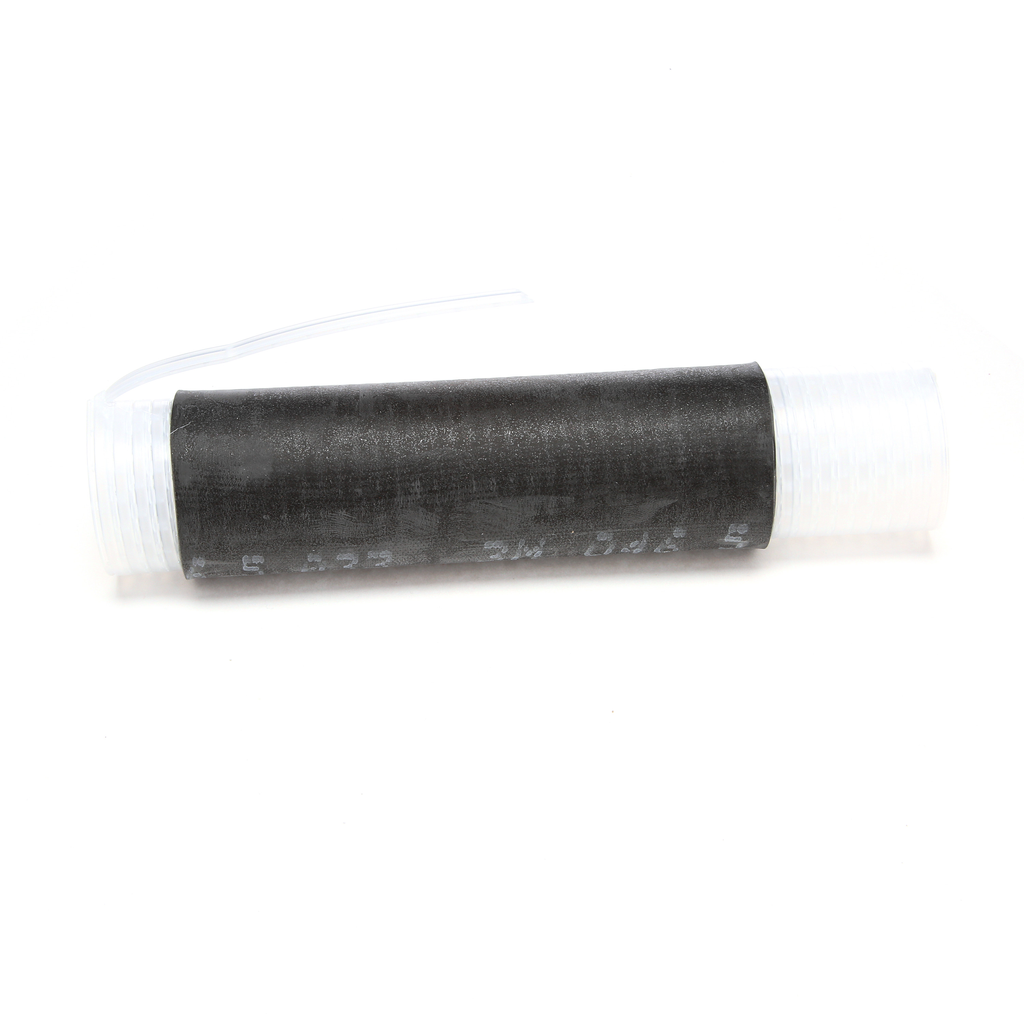

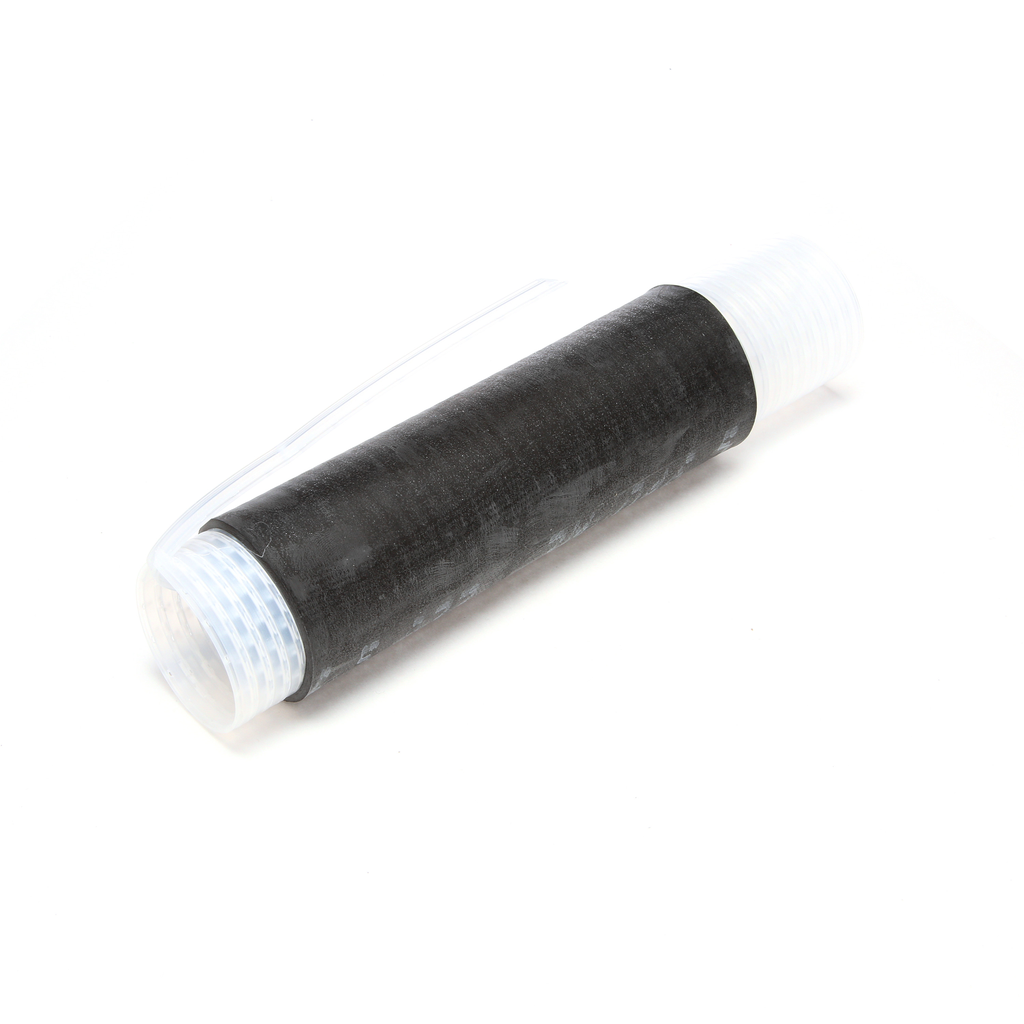

3M™ Cold Shrink Insulators are open-ended, tubular, EPDM rubber sleeves which are factory expanded and assembled onto a removable core. The core is removed after the tube has been positioned for installation over an inline connection, terminal lug, etc., allowing the tube to shrink and form a water-resistant seal.

Technical Information

Applications
Insulation,Mechanical Protection,Repair
Conductor Material
Copper,Aluminum
Material
Rubber
Max Operating Temperature
194.0 degrees F
Min Operating Temperature
-40.0 degrees C
Splice Type
Cold Shrink
Type
Cold Shrink Splice
Voltage
1 kV

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
054007099154
Color
Black
GTiN
00054007099154
Product Type
Splice
Product UPC
05400709915

Dimensions

Overall Length
6.0 in

Certifications and Compliance

Country of Origin
USA
Features
  • DESIGNED FOR PRIMARY INSULATION: For use with solid dielectric insulated wires and cable splicing rated to 1000 volts
  • QUICK, EASY INSTALLATION: Simple installation which requires no tools
  • SEALS TIGHT: Retains its resiliency and pressure even after prolonged years of aging and exposure

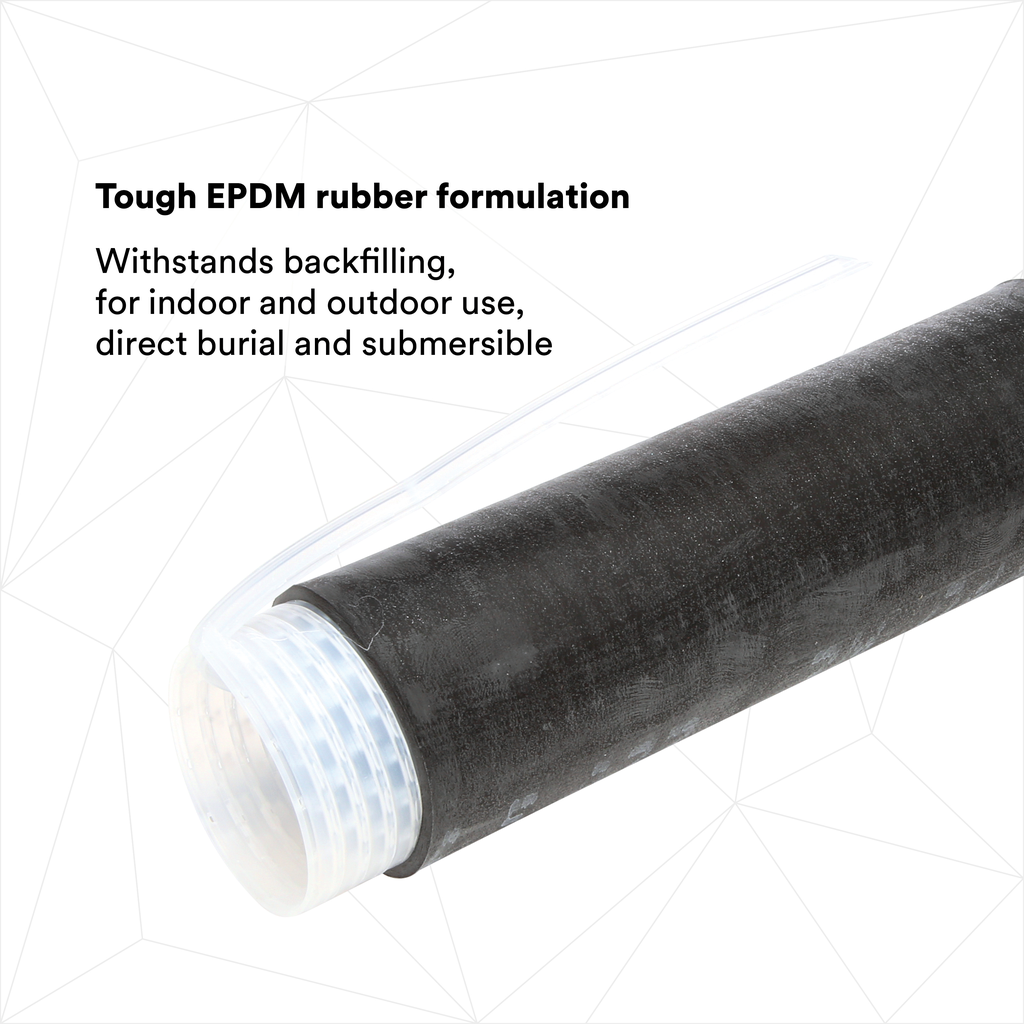

  • TOUGH EPDM RUBBER FORMULATION: Withstands backfilling, for indoor and outdoor use, direct burial and submersible
  • TEMPERATURE RANGE: Withstands temperatures of -40 to 194 °F (-40 to 90 °C)

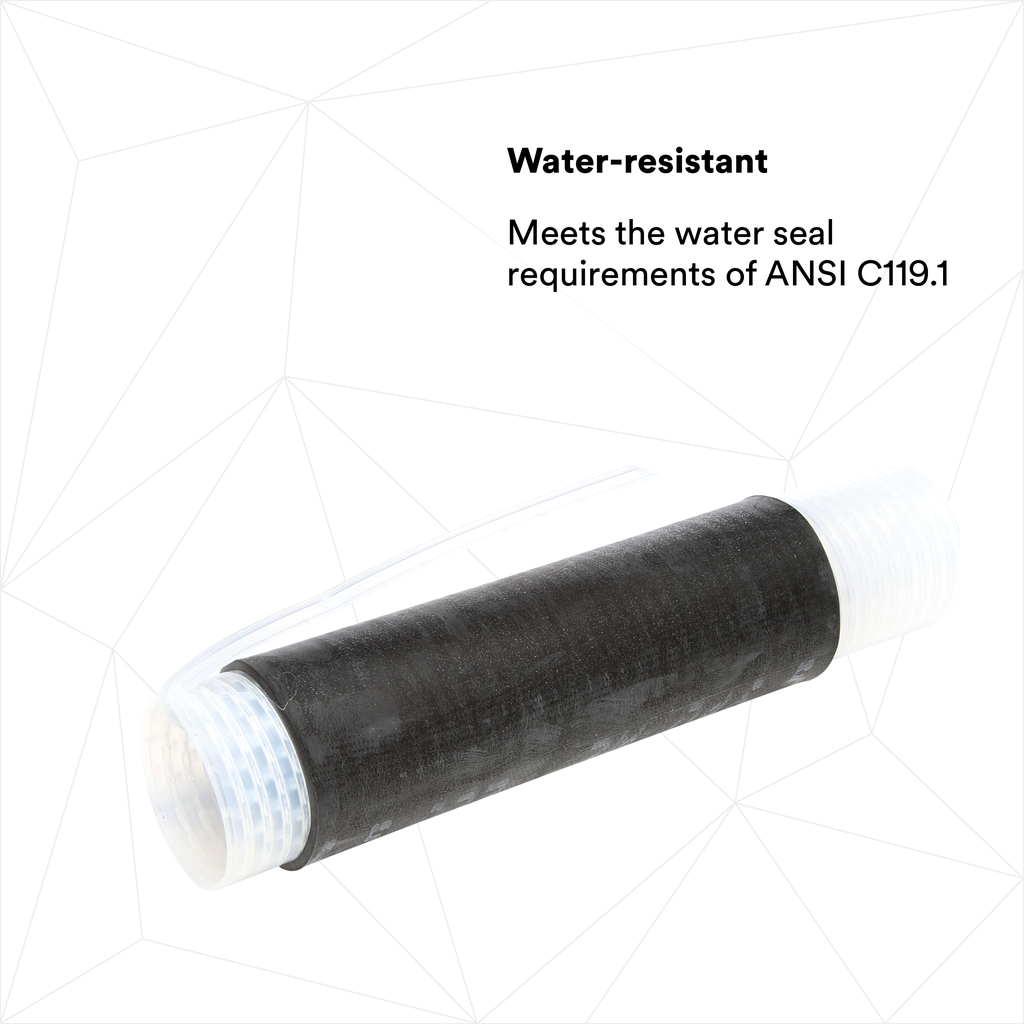

  • WATER-RESISTANT: Meets the water seal requirements of ANSI C119.1
