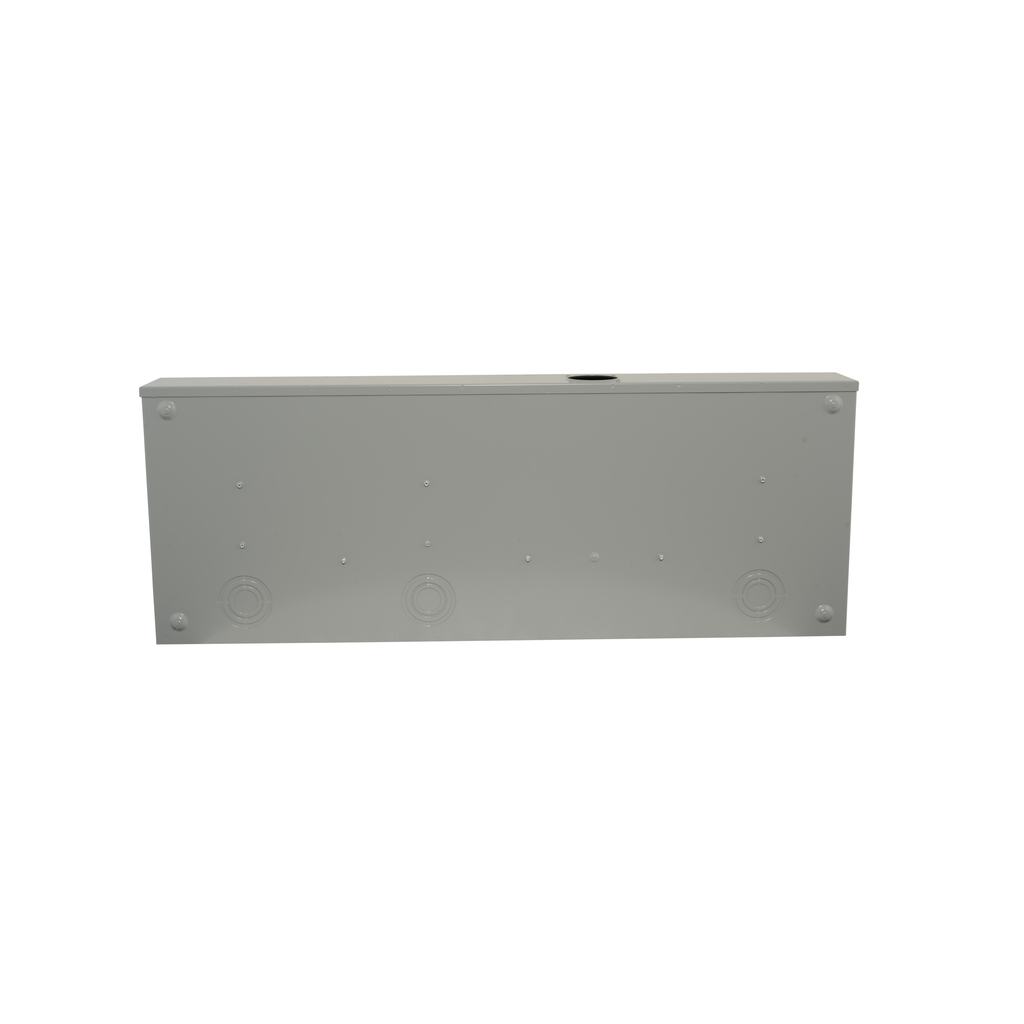

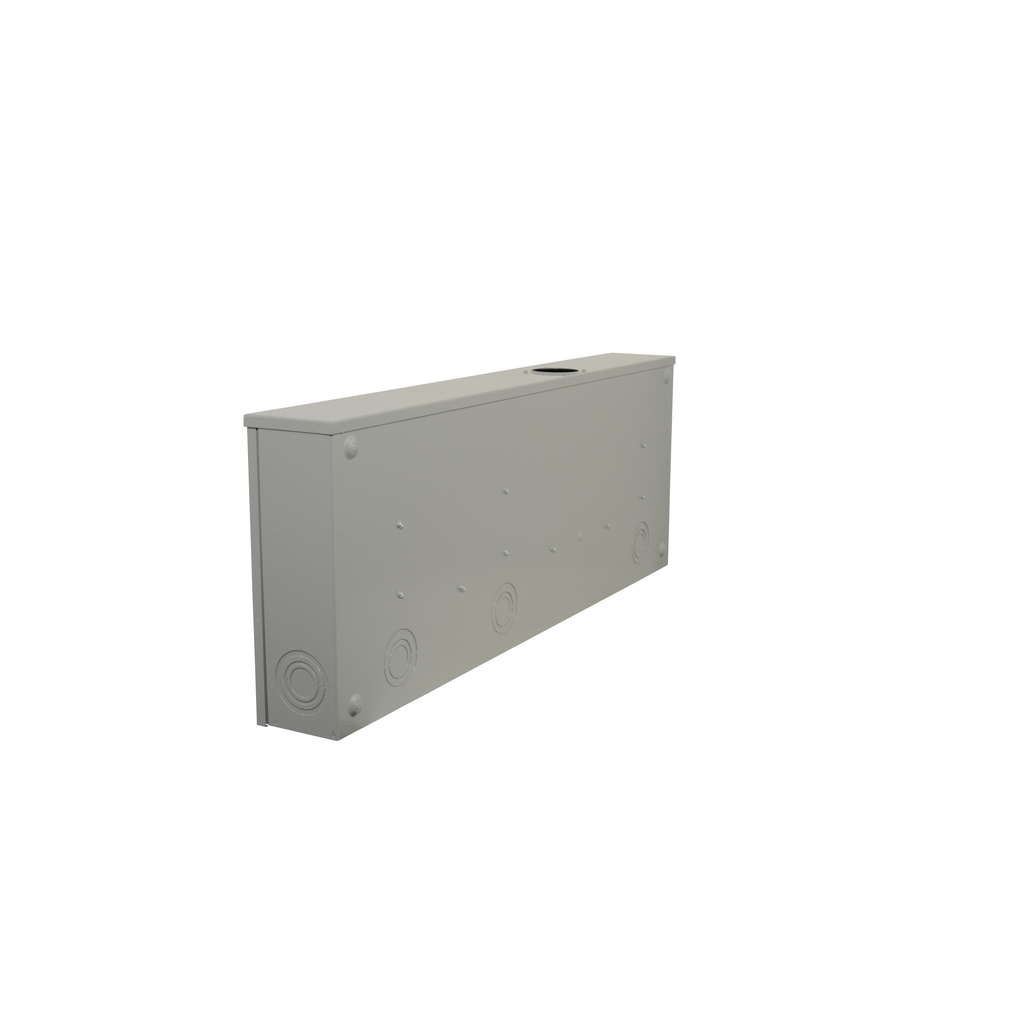

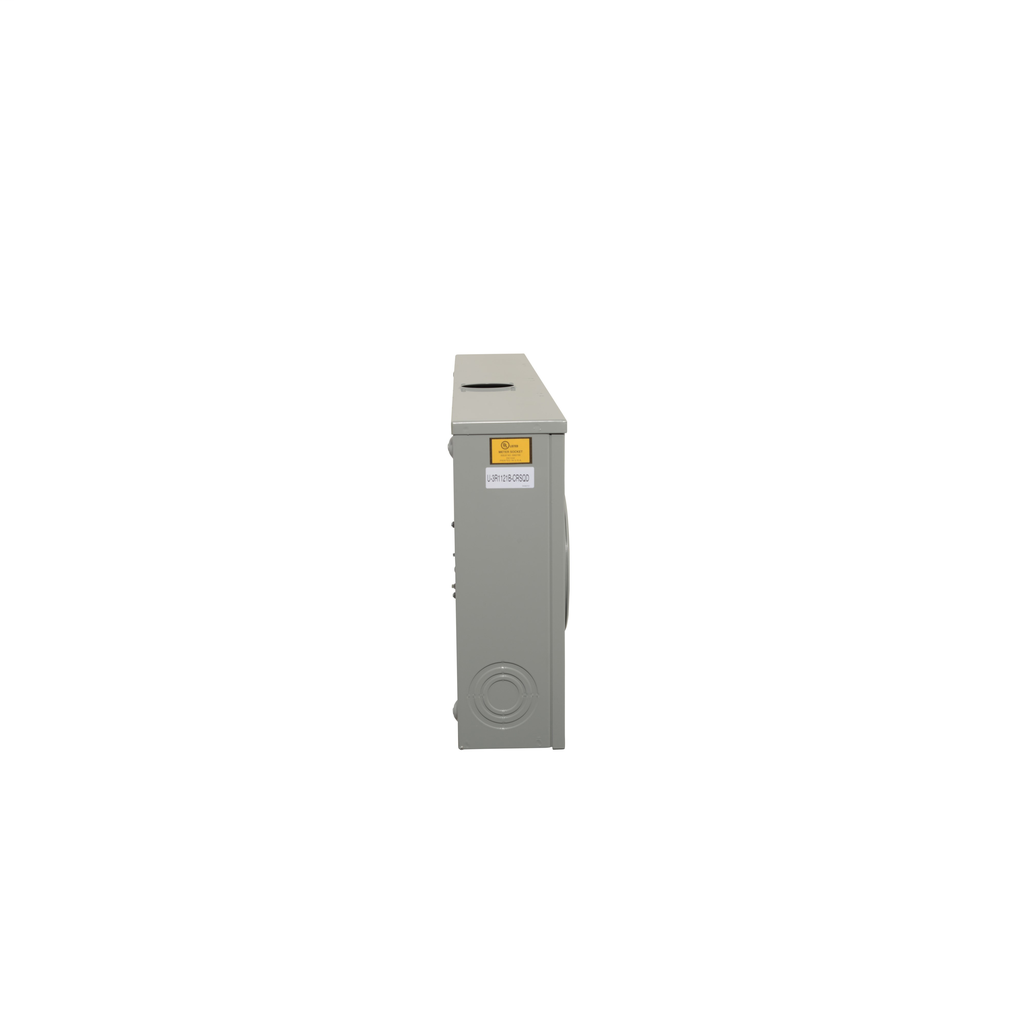

Square D U3R1121BCR 100 Amp Horizontal Overhead/Underground Service Ring Type Meter Socket

horizontal ganged meter sockets are for single phase systems up to 600 VAC. These meter socket units can be from 2 through 6 meter positions. Units can be with or with a horn or lever bypass and be fed from the end or the center. This horizontal ganged meter socket has three meter positions without bypass. Each socket position has a 4 jaw socket without jaw release. The main is rated at 100 A. This unit can be feed from an overhead or underground service. This unit has a NEMA 3R surface mounting enclosure that is 14.12 inches tall, 32.50 inches wide and 4.50 inches deep. The main lugs will accept 6 AWG to 250 kcmil copper or aluminum wire. The branch lugs will accept 8 AWG to 2/0 AWG copper or aluminum wire. This horizontal ganged meter socket device is UL Listed.
